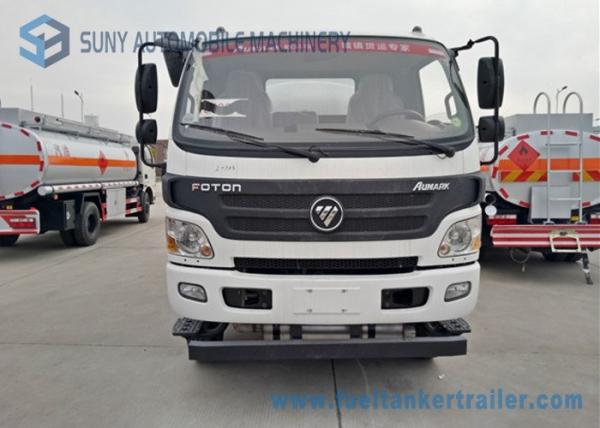

    Foton Oil Tank Truck 4*2 Fuel Tank Truck 138 HP carbon steel Tanker Truck

    Ask Lasest Price
    Brand Name : SUNY
    Model Number : CLW5102GJYB3
    Certification : CCC, ASME, BV, SGS, etc
    Price : USD 18,000~ 25,000 FOB Shanghai
    Payment Terms : Western Union, MoneyGram, D/A, D/P, L/C, T/T
    Supply Ability : 1000 units/per year
    Delivery Time : 25~35 days after we get the deposit
    • Product Details
    • Company Profile

    Foton Oil Tank Truck 4*2 Fuel Tank Truck 138 HP carbon steel Tanker Truck

    Foton Oil Tank Truck 4*2 Fuel Tank Truck 138 HP carbon steel Tanker Truck


    Description & Applications:

    1. Oil tank truck, mobile oil tank truck, diesel or petrol transporting truck, stainless steel oil tank truck
    2. Oil tanker truck, fuel tanker truck, petroleum tanker truck, which are mainly used for transporting oil.
    some oil tanker truck could be also a refueling tank truck, with refueling device.
    3. Our company also produce the oil tank trailer,the manufactuere standard could be according to European standard.

    4. Tank material: carbon steel, stainless steel, aluminum alloy material tank for choose.

    5. You can choose to install heating pipes, insulation layer. The Insulation material is generally 50-100 mm

    Thickness, insulation can be used rock wool, glass wool, polyurethane foam, aluminum silicate. The cladding

    6. At the end or side of tank, it can be installed 1-3 self-flow valve.

    7. According to users’ needs, the tank can be designed as a single compartment or several compartments to contain different oils.


    Foton Oil Tank Truck 4*2 Fuel Tank Truck 138 HP carbon steel Tanker Truck



    Vehicle Description

    Vehicle brandFoton
    Vehicle typeOil Tank Truck
    Drive form4*2
    Overall dimension (mm)7000x2250x2600
    G.V.W(kg)10495
    Load capacity (kg)5210
    Curb weight (kg)5090

    Chassis Description

    Chassis brandFoton
    Axle load (kg)4200/6295
    F/R overhang (mm)1120/2080
    Approach/Departure angle ( ° )15/11
    Tread (mm)2040 / 1860
    Wheelbase (mm)3800
    Spring plate9/11+7
    Tyre size & quantity

    8.25-16,8.25R16,8.25-20,8.25R20

    CabOne and half row

    Engine Description

    Engine modelYZ4DB1-30
    Displacement (ml)4087
    Max power (kw)80
    Horsepower (hp)138
    Max speed (km/h)80
    Emission standardEuro 4
    Type of fuelDiesel

    Tank Description

    Tank volume (m³)8
    Transport mediumGasoline
    Density (kg/m³)700
    Tank size (mm)4000x2000x1350
