4M3 Dongfeng Concrete Mixer Truck 3 - 7cubic Cement With Opitional Colors

    Buy cheap 4M3 Dongfeng Concrete Mixer Truck 3 - 7cubic Cement With Opitional Colors from wholesalers

    Buy cheap 4M3 Dongfeng Concrete Mixer Truck 3 - 7cubic Cement With Opitional Colors from wholesalers
    • Buy cheap 4M3 Dongfeng Concrete Mixer Truck 3 - 7cubic Cement With Opitional Colors from wholesalers
    • Buy cheap 4M3 Dongfeng Concrete Mixer Truck 3 - 7cubic Cement With Opitional Colors from wholesalers
    • Buy cheap 4M3 Dongfeng Concrete Mixer Truck 3 - 7cubic Cement With Opitional Colors from wholesalers
    • Buy cheap 4M3 Dongfeng Concrete Mixer Truck 3 - 7cubic Cement With Opitional Colors from wholesalers

    4M3 Dongfeng Concrete Mixer Truck 3 - 7cubic Cement With Opitional Colors

    Ask Lasest Price
    Brand Name : SUNY
    Model Number : SUNNY DF153MT
    Certification : CCC, ASME, BV, SGS, etc
    Price : USD 25, 000 ~75, 000 per Unit
    Payment Terms : L/C, D/A, D/P, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 800 Units per year
    Delivery Time : 20 ~ 35 working days after we get the deposit
    • Product Details
    • Company Profile

    4M3 Dongfeng Concrete Mixer Truck 3 - 7cubic Cement With Opitional Colors

    4M3 5M3 6M3 7M3 Mixer truck Dongfeng 3 to 7cubic cement concrete mixer truck Blue Red White


    Company Information:

    Hubei SUNY Special Automobile Manufacture Co . , Ltd is a professional transit mixer truck manufacturer in China . Supply ability of transit mixer truck is 200 units per month . We have a perfect quality inspection system for transit mixer truck . welcome to our company to purchase the transit mixer truck.


    Specifications:


    4M3 5M3 6M3 7M3 Mixer truck Dongfeng 3 to 7cubic cement concrete mixer truck Blue Red White


    Vehicle parameters
    Vehicle ModesVehicle BrandSUNY
    Overall dimensions6173 x2462 x2710Curb weight13650 kg
    Loading capacity4 to 7m3

    Chassis parameters
    Chassis modelEQ3141KJ/EQ3168KJChassis brandDongFeng
    Overall dimensions6173 x2462 x2710Wheel base1940 + 1860 mm
    Front / rear wheel track1995 / 1800 / 1800mmFront / rear suspension1245/1128mm
    Approach / departure angle26 / 35 °Maximum speed85 km / h
    Chassis ManufacturerBEIBEN TRUCK
    CabConfigurationNG80B a row and a half ( with sleeping berth ) , allowable 3 passengers , air conditioner
    ColorBlue Red White , other color is optional
    EngineModelWP10 . 340E32
    EmissionEuro 2
    Type

    6 cylinders , in - line , water - cooled , 4 - stroke , turbo inter - cooling , direct injection , exhaust valve brake , diesel engine

    Rated power340hp , rated power speed 2200 rpm
    Displacement9726 ml
    Max . torque1250 N . m
    Bore x stroke126 x 155 mm
    ManufacturerWeichai Power Co . , Ltd
    TireSize12 . 00R20 steel wire tire
    Number10 + 1 nos
    Clutchφ 430 diaphragm clutch
    Fuel tank300L aluminum alloy
    Front axle7 . 5 tons
    Rear axle13 . 0 tons
    Drive form4x2
    SuspensionMulti leaf springs
    Rated voltage24V , DC
    TransmissionsGearbox 9T1680 , 9 speed forward 1 reverse
    Steering devicePower assisted steering
    Steering wheelLeft hand drive
    Selective configuration
    If there is a slight change in the chassis parameters above , please take the actual product as the standard
    transit mixer truck structure parameters
    Loading capacity8 m3Tank material6 mm alloy steel
    Tank front head8 mm alloy steelReducerGermany ZF
    Hydraulic pumpGermany REXROTHHydraulic motorGermany REXROTH
    RadiatorKAIPENGColor and LogoOptional
    Standard configuration

    Less than 7m3 : chassis , sub frame , mixer tank ( main tank 5mm alloy steel wear resistant material,front tank head 6mm alloy steel wear resistant material ) , domestic reducer , hydraulic pump , hydraulic motor , radiator , water tank , cleaning hose , feed port , discharge port , climbing

    ladder , air pressure water supply device .

    Selective configuration

    1 , American SALI56 hydraulic pump , SALI63 hydraulic motor

    2 , Italy P071 hydraulic pump , M063 hydraulic motor

    3 , A full set of imported parts ( ZF3301 reducer )

    Selective configuration

    Emergency high pressure oil hose(4 pieces),12m emergency oil hose(Italy),water cannon,large tool box,electric water supplying system.Italy

    Bonfiglioli/Italy PMP reducer,Italy PMP/Italy MESSOR/America EATON/America

    SAUER hydraulic pump,Italy PMP/America EATON/America SAUER hydraulic motor.


    MOQ,payment terms , delivery terms , price
    MOQOne unit
    Payment termsT / T 30 % down payment , 70 % balance after inspection before delivery
    L / C is optional
    InspectionBuyer ' s agent or third party inspection agency , the cost is paid by the buyer
    Delivery term20 days from down payment
    DocumentationMaintenance manual
    User manual
    Packing list
    Commercial invoice
    Certificate of origin is optional
    Spare parts list for purchase is optional
    Standard toolsWith standard tools for chassis and transit mixer truck structure
    PackingThe main vehicle nude and covered with wax , attached parts and tools put into standard export box
    Other requirementsPlease fill in here
    FOB / CNF / CIFUSD

    Because exchange rate and ocean freight may be changed in near future , so the price is only valid for 15 days . Please confirm the price again with our company before placing the order , thanks.

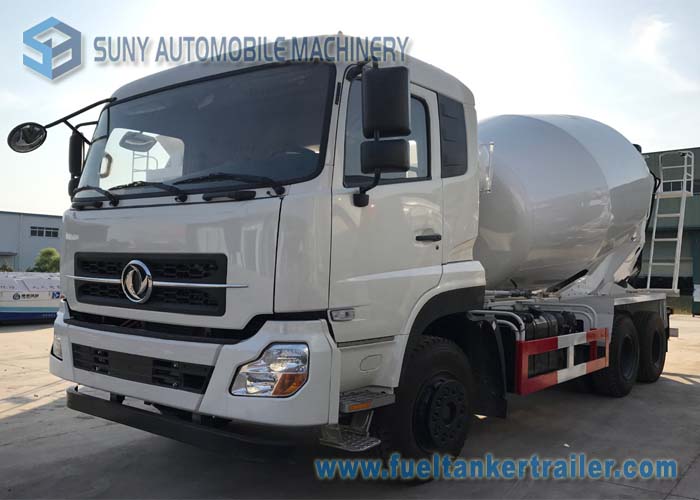

    More Pictures:
