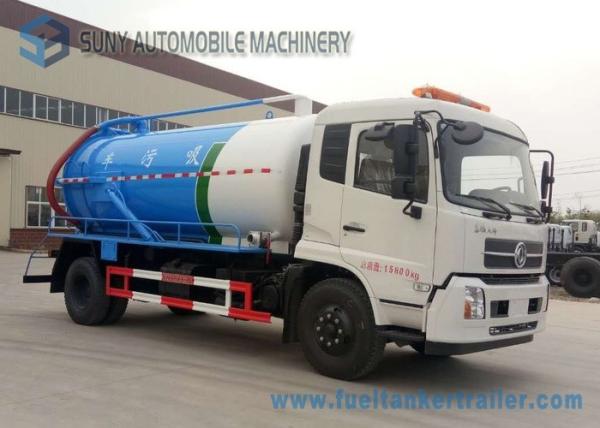

    Low Speed Vacuum Tank Truck Dongfeng 8000L Cummins190hp 4x2 Sewage Suction Truck

    Ask Lasest Price
    Brand Name : SUNY
    Model Number : SY5080GXW
    Certification : CCC, ASME, BV, SGS, etc
    Price : USD20000-26000 / Set
    Supply Ability : 1000 sets per year
    Delivery Time : 25 days after receiving deposits
    • Product Details
    • Company Profile

    Low Speed Vacuum Tank Truck Dongfeng 8000L Cummins190hp 4x2 Sewage Suction Truck

    Dongfeng 8000L Cummins 190hp 4x2 Sewage Suction Truck Vacuum Tank Truck for sale




    Description:

    1. sewage suction tank truck cab - single row, optional: A/C
    2. vacuum sewage truck Engine - Cummins , 4 cylinders
    3. acuum truck manual gearbox -5-speed
    4. sewage truck drive axle loading capacity- 8T
    5. vacuum suction truck tire - 8.25-R20
    6. vacuum sewage sucking truck tank capacity 8000-10000L


    Applications:

    1. Cleaning of pipes from pollution.
    2. Liquidation of emergency blockages.
    3. Removal of ground formations


    Competitive Advantage:

    1. Equipped with special vacuum pump, Equipped with power take off, transmission shaft, high pressure sewage tank, pipe network, sewage pipe for observing and cleanout equipment, Time for full suction<5min
    2. The Sewage Suction Trucks, special section, taking the force transmission device by rotary vane pumps, vacuum pump, ( with domestic leading technology big suction ) oil and gas separation device, hydrosphere separator, vacuum pressure gauge, pressure vessel, pipe system composition, and equipped with hand-washing facilities and visual dung tube.
    3. The tanks bulbar and the horizontal sextant angle are greater than the material rest angle, ensuring the discharging speed.
    4. The diesel engine ( air compressor unit ), providing compressed air.


    Specification:

    Sewage Suction Vacuum Truck Technical Specification
    Product Namedognfeng 4*2
    SEWAGE SUCTION TRUCK
    Chassis ModelBJ1120
    Fuel typeDiesel
    Emission StandardEuro 3
    CabinAoling
    Whole Vehicle
    main dimensions (mm)
    Overall dimensions (LxWxH)8500*2495*3550
    Wheel base4200
    Min. ground clearance480
    Weight data (kg)G.V.W15600
    Curb weight7395
    Max payload8000-10000
    Whole vehicle
    main performance
    Max. speed (km/h)95
    Max. slope of climb (%)30
    Engine


    ModelCummins
    Maximum power190HP
    Number of cylinders4
    Displacement (ml)6700
    Gear boxModel5
    Number of gears5 forward gears &1 reverse
    AxleFront Load capacity (ton)4
    Rear Load capacity (ton)7
    Steering Wheelleft/right hand driveLHD
    Brake systemService brakeAir braking
    Electric deviceRated voltage24V
    Tyres&Quantity9.00-20& 6+1
    Sewage Suction Vacuum Truck Special Tank Description
    Tank

    Material:high quality carbon steel
    Structure:welding,vacuum tank,Cylindrical
    capacity(L)8000-10000
    thickness of material6mm
    pump





    typevacuum pump
    model50QZXDG-45/400
    flux(L/S)45
    rating speed(r/min)500
    shaft power(kw)4
    featuresLow speed,low fuel consumption,low noise,high vacuum,high efficiency
    manufactureHangzhou Weilong Pump Co.,Ltd,(Famous in China)
    pipe65-100mm suction and discharge pipe
    special functionsuction time ≤ 5min,
    effective suction range ≥ 8,
    max vacuum degree ≤ 15 Kpa,
    dump angle ≥ 45
    equipmentEquipped with power take off,transmission shaft,fecal tank, pipe network,fecal pipe for observing and cleanout equipment
    Time for full suction less than 5min
    hydraulic lift and lock discharge cover. sewage tube,vacuum pump,recovery,etc



    Details show:
