    6000L Road Sweeping Vehicle / Street Sweeper Vacuum Truck With Sprinkler

    Ask Lasest Price
    Brand Name : SUNY
    Model Number : EQ1070
    Certification : CCC, BV, SGS, etc
    Price : USD 25000-35000 / Set
    Supply Ability : 50 sets per month
    Delivery Time : 25 days after receiving deposits
    • Product Details
    • Company Profile

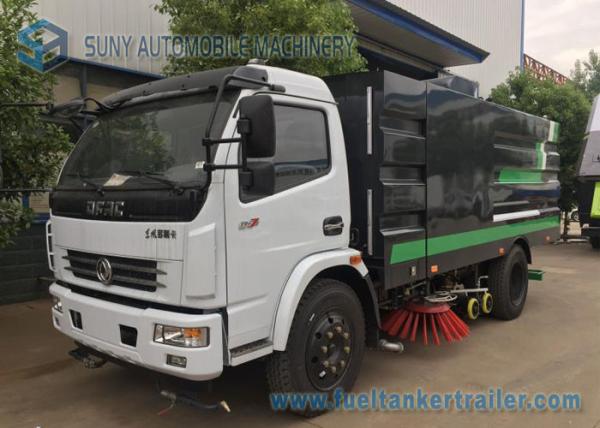

    6000L Road Sweeping Vehicle / Street Sweeper Vacuum Truck With Sprinkler

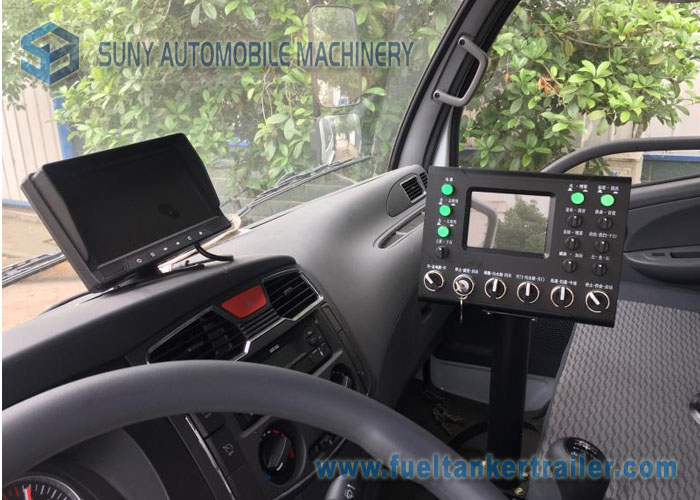

    6000L Road Washing Sweeper Truck Operation In Cab With Sprinkler


    Product Description:


    This truck for road sweeper and washing road. save money and time than employ worker.

    The surface of the external air domain was treated as the pressure inlet, and its pressure was set as the atmosphere, The outlet of the model was defined as pressure outlet. There are two kinds of walls, the static wall, which is the bottom part of the pickup head, and the moving walls, which are the rest parts of pickup head shells. Oe these walls, the no-slip boundary conditions were assumed by defaults, and the translational speed of pickup head was applied as the speed of moving walls.


    1. Parameter


    Products Technical Specification

    Type

    road Washing sweeper truck

    Vehicle Description

    Overall dimensions(mm)

    6700*2200*2900

    G.V.W (kg)

    7000

    Curb weight(kg)

    4500

    Max speed (Km/h)

    90

    Engine Description

    Engine model

    CY4102

    Engine Type

    4 cylinders, straight in-line,

    Maximum power

    95hp

    Displacement (lit)


    Chassis Description

    Chassis model

    EQ1070

    Wheel base(mm)

    3300

    F/R track base(mm)

    1880/1860

    F/R overhang(mm)

    1480/2320

    Approach/Departure angle(°)

    20/15

    Spring plate

    8/10+8

    Front / rear axle (T)

    6/10/10

    Driving Type

    4*2,left hand drive or right hand drive

    Tyre&Quantity

    6.50R15&6+1

    Up-parts Description

    Max sweeping width(mm)

    3000

    Sweep efficient

    More than 95%

    Sweep speed(Km/h)

    3-20

    Hydraulic pressure(Mpa)

    10

    water tank capacity(M3)

    13

    Dustbin capacity(m3)

    9

    Max operating capacity

    70000 square meters per hour

    The biggest diameter of suction granularity(mm)

    110



    2.Pictures
