    Dongfeng 15000L 10 Wheel Vacuum Tank Truck 270hp High Pressure Cleaning And Sewage Suction

    Ask Lasest Price
    Brand Name : SUNY
    Model Number : DFH5255GYQ
    Certification : CCC, ASME, BV, SGS, etc
    Price : USD 34500-39200 / Set
    Supply Ability : 50 sets per month
    Delivery Time : 15-20 days after receiving deposits
    • Product Details
    • Company Profile

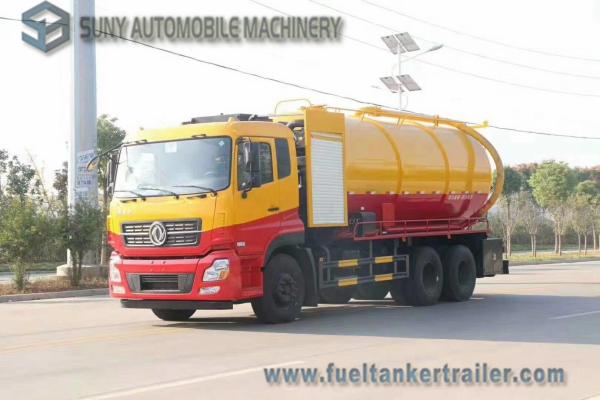

    Dongfeng 15000L 10 Wheel Vacuum Tank Truck 270hp High Pressure Cleaning And Sewage Suction

    dongfeng 15000L high pressure cleaning and sewage suction tanker truck for sale


    Description:

    This vacuum suction sewage truck is suitable for suction, transportation and dumping soil and mud from various sewer man-hole, water wells and sediment. It is necessary tool for city sanitation department, waste processing company, big factory, it can help to clean the sewer underground, clean the sludge in the river around city, it also can help big factory to clean the greasy dirt and waste water.


    Applications:

    Rinsing underground sewage pipes, the collection and transportation of sludge and city life waste and building operations such as muddy water in liquid waste and other functions.


    Competitive Advantage:


    1. The domestic mature chassis, the use of safe and reliable

    2. The strict the whole pickling, preservative treatment, and the anticorrosion coating non-toxic water warehouse paint, has the good put embroidered performance

    3. Equipped with special vacuum pump, power take off, transmission shaft, high pressure sewage tank, pipe network, sewage pipe for observing and cleanout equipment. Time for full suction < 5min

    4. The Sewage Suction Trucks, special section, taking the force transmission device by rotary vane pumps, vacuum pump, ( with domestic leading technology big suction ) oil and gas separation device, hydrosphere separator, vacuum pressure gauge, pressure vessel, pipe system composition, and equipped with hand-washing facilities and visual dung tube.

    5. The tanks bulbar and the horizontal sextant angle are greater than the material rest angle, ensuring the discharging speed.

    6. The diesel engine ( air compressor unit ), providing compressed air.


    Specifications:

    Item

    Descriptions

    Specifications and Types

    Vehicle

    Brand

    DONGFENG

    Overall Dimensions L*W*H

    9800*2550*3600mm

    Weights

    GVW.

    25000 kg

    Curb Weight

    12400 kg

    Rated Payload

    12470 kg

    Chassis

    Chassis Brand

    Dongfeng

    Drive Type

    6x4

    Steering

    LHD or RHD

    Engine

    Brand

    Cummins engine

    Power

    ISD270 HP

    Emission Level

    EURO 2 or Euro 3 or EURO 4

    Performance

    Max. Speed

    90 km/h

    Wheel base

    4350 mm

    Tire Specifications

    11.00R20

    No. of Tire

    10 pcs (1 spare tire included )

    Cab

    Cab Capacity

    D910, one sleeper,with A/C

    Body/Superstructure

    Tank

    Capacity

    15-18 m³

    Material

    5mm or 6mm high quality carbon steel

    Vacuum pump

    China famous vacuum pump

    Vacuum rate

    99% topically

    Suction head

    6 m

    Rotation speed

    500 rpm, low noise, high efficiency

    Basic
    Equipment

    Install vacuum pumps and hydraulic systems driven by engine through PTO.

    One multi-way valve, pressure gauges, water-gas separator, oil-gas separator,

    hydraulic oil tank, a level inspection window, hand washing tank and a piece

    of 6m suction hose

    Paint

    Tank color is according to client’s requirements.

    Optional Equipment

    Italy or Spain vacuum pumps

    Stainless steel

    Anti-rust coating inside tank
