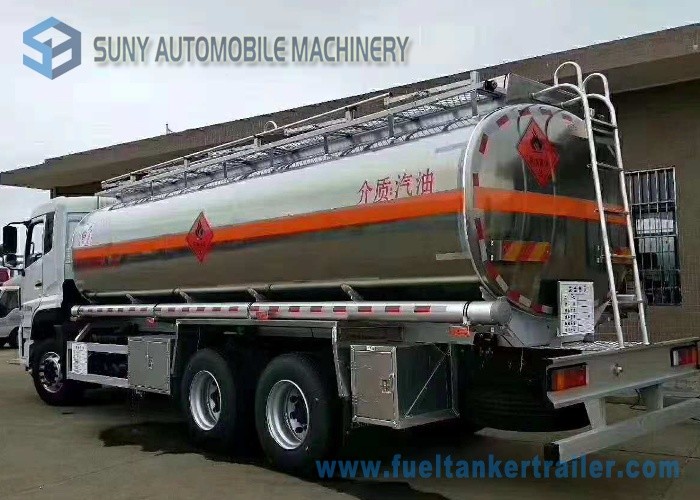

Diesel 21.2m3 Pump Chemical Tanker Truck Dong Feng 6x4 Truck
ISDe245 40 Engine
Description & Applications:
1 Tank truck can be used: carbon steel, stainless steel, plastic,
glass, steel lining plastic ( polypropylene )
2 Tank shape: square, round, oval round
3 Tanker with self-priming pump, gear pump, chemical pump,
stainless steel pump
4 Tank truck with notation system: counting, counting, refueling
machine
5 Tank truck can be independent compartment, at different oil
products, chemicals, food. The design can realize the pump inlet,
pump-off form, into the pump, pump however table, table, but
gravity table functions.
6 Of all the oil tank truck can be designed chemical car
7 Of all oil tank cars are equipped with computer oiling machine
8 Of all households tonnage tanker a wide range of choices, to meet
user demand
9 Of all the tank body is provided with swash plate channel. Using
high pressure gas leakage detection, so that the tank has the
advantages of high intensity, stable gravity center, vehicle safety
and stable characteristics.
Diesel 21.2m3 Pump Chemical Tanker Truck Dong Feng 6x4 Truck
ISDe295 40 Engine
Vehicle name | Oil tank truck |
Vehicle model | CSC5250GYYD15 |
Engine model | ISDe245 40 | Power (kw) | 180 |
Displacement (ml) | 6700 | Seating capacity | 3 |
Overall dimension (mm) | 9700×2500×3350 | Type of fuel | Diesel |
G.V.W (kg) | 30000 | Spring plate | 8/9, 8/10, 9/10 |
Curb weight(kg) | 11005 | Load capacity (kg) | 18000 |
Approach/Departure angle (°) | 19/10 | F/R overhang (mm) | 1460/2590
1460/2540 |
Wheelbase (mm) | 4350+1300
4350+1350 | Axle load(kg) | 7000/18000(two axis) |
Number of axle | 3 | Max speed (km/h) | 80 |
Number of tyre | 10 | Tyre size | 295R22.5 |
Front tread (mm) | 1986, 2040 | Rear tread (mm) | 1860/1860 |
Steering type | Steering wheel | Emission standard | Euro 4 |
Other Description | 1,Tank volume: 20-27 CBM. Tank size (mm) Length 7000, Width 2400,
Height 1630; Transport medium: Gasoline, Density: 700kg/m³ 2,Section height 280mm, Width 50mm, Ground clearance 550mm. 3,Optional speed limiting device, brake assist and front disk
brake. Installed with satellite positioning function grapher. |
