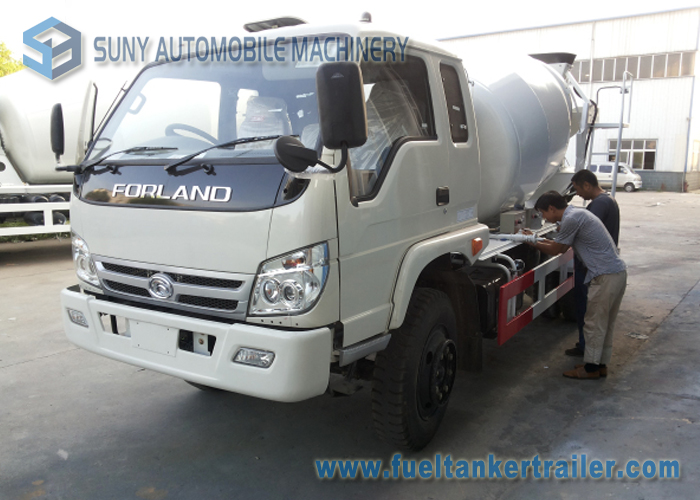

Forland Right Hand Drive 6 Wheeler 5 M3 Concrete Mixing Truck Mercedez Technology

    Buy cheap Forland Right Hand Drive 6 Wheeler 5 M3 Concrete Mixing Truck Mercedez Technology from wholesalers

    Buy cheap Forland Right Hand Drive 6 Wheeler 5 M3 Concrete Mixing Truck Mercedez Technology from wholesalers
    • Buy cheap Forland Right Hand Drive 6 Wheeler 5 M3 Concrete Mixing Truck Mercedez Technology from wholesalers
    • Buy cheap Forland Right Hand Drive 6 Wheeler 5 M3 Concrete Mixing Truck Mercedez Technology from wholesalers
    • Buy cheap Forland Right Hand Drive 6 Wheeler 5 M3 Concrete Mixing Truck Mercedez Technology from wholesalers
    • Buy cheap Forland Right Hand Drive 6 Wheeler 5 M3 Concrete Mixing Truck Mercedez Technology from wholesalers
    • Buy cheap Forland Right Hand Drive 6 Wheeler 5 M3 Concrete Mixing Truck Mercedez Technology from wholesalers
    • Buy cheap Forland Right Hand Drive 6 Wheeler 5 M3 Concrete Mixing Truck Mercedez Technology from wholesalers
    • Buy cheap Forland Right Hand Drive 6 Wheeler 5 M3 Concrete Mixing Truck Mercedez Technology from wholesalers

    Forland Right Hand Drive 6 Wheeler 5 M3 Concrete Mixing Truck Mercedez Technology

    Ask Lasest Price
    Brand Name : SUNY
    Model Number : SYCMT5FL
    Certification : CCC, ASME, BV, SGS, etc
    Price : USD 10, 000 ~ 30, 000 per Unit
    Payment Terms : L/C, D/A, D/P, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 500 Units per year
    Delivery Time : 10 ~ 15 working days
    • Product Details
    • Company Profile

    Forland Right Hand Drive 6 Wheeler 5 M3 Concrete Mixing Truck Mercedez Technology

    Forland Right Hand Drive 6 Wheeler 5 M3 Mixer Truck With Mercedez Technology

    Our Services

    1. Factory Supply:
    a. one of the biggest special using truck manufacturers in China,
    b. more than 300 kinds of special truck for your needing,

    2. OEM Ability:
    can produce according to your demand, the size, the color and the logo is optional for you.

    3. Good Quality:
    a. has solid technology, advanced equipment: reliant quality and flexible modes of operation also have strict quality control system
    b. passed the ISO9001 - 2008 and the 3C ( China Compulsory Certification )
    c. our brand is China famous brand with good reputation in the market.

    4. Good Service:
    24 – hour hotline and email

    5. Fast Delivery:
    10 - 15 days after payment, safe and quick delivery

    6. Standard Steering:
    Left – hand drive, if you need Right – hand drives, please inform us, we will make special order for you.

    We highly recommend this refrigerated truck. It ‘ s in an excellent condition and also with good quality and competitive price. Further information, pls feel free to contact with me or visit our website, we will offer our best service.

    Packaging & Shipping

    Truck is nude packing, shipping in container, in bulk, in ro – ro.

    We will choose the best shipping type basis on truck volume, truck structure, Sail Schedule, clients ’ requirement for clients!

    Product Description

    Chassis Technical Specification


    Product Name

    Forland Concrete Mixer Truck


    Chassis Model

    BJ5142GJB - G1


    Fuel type

    Diesel


    Cabin

    one and half row


    Vehicle information ( mm )

    Overall dimensions ( L × W × H )

    7125 * 2480 * 3450


    Wheel base

    3600


    Min. ground clearance

    425


    Weight data ( kg )

    G . V . W

    13560


    Curb weight ( chassis )

    5860


    Max payload

    10t


    Whole vehicle
    main performance

    Max . speed ( km / h )

    80


    Max . slope of climb ( % )

    30


    Engine

    Model

    YC4D130


    Maximum power

    96kw / 130hp


    Number of cylinders

    4


    Displacement ( ml )

    4200


    Emission standard

    Euro 2


    Gear box

    Number of gears

    5 forwards & 1 reverse


    Axle

    Front Load capacity ( ton )

    5t


    Rear Load capacity ( ton )

    9t


    Suspension

    Leaf spring

    9 / 11 + 9

    Steering Wheel

    left/right hand drive

    optional


    Brake system

    Service brake

    Air braking


    Electric device

    Rated voltage

    24V


    Tyres & Quantity

    8 . 25 - 20 & 6 + 1


    Concrete mixer truck technology information


    Mixer drum parameter

    Tanker material

    16MnQ345


    Fact cubage

    5 cbm


    Filling speed

    ≥ 2 . 8 cbm / min

    Unloading speed

    ≥ 1 . 2 cbm / min


    Discharge reside ratio

    ≤ 0 . 5 %


    Mixer drum rotation speed

    0 ~ 12 ( rpm )


    Driving system

    Reducer

    Bonfiglioli


    Hydraulic pump

    Interpump


    Hydraulic motor

    Interpump


    Heat device

    Made in China



    Company Information

    Hubei Suny Automobile And Machinery Co . , Ltd is a professional company who deal in different kinds of special vehicles, trailers and construction machinery.

    Our advantage:

    1. We have own factory located in Suizhou city - the special truck town of China. we can control every details - the development, the quality and the cost. As a result we can supply the quality goods with most competitive price.

    2. We are familiar with the whole Chinese special truck market. And we are clear the different advantage and different quality level for each factory. So we can consolidate the resource for the customers and supply the most suitable goods for them.

    3. There is a strong professional team in our company including engineers and business executives. So we can provide the best solution and service for all customers.

    If you have any other questions or there is anything we can do for you, pls feel freely to let me know. We are glad to provide the best service.

    More photo:
