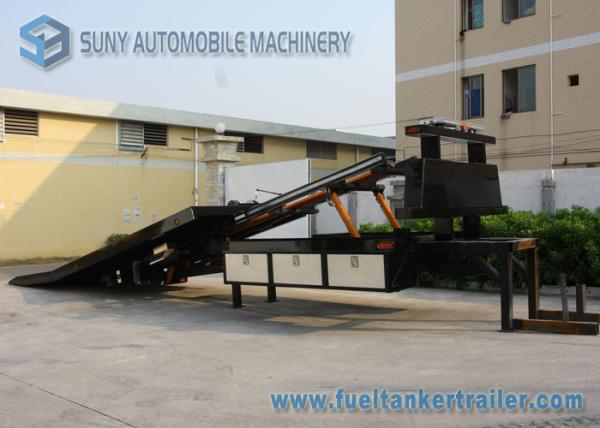

FB 15 Flatbed Tow Truck Upper Body With 9 Ton Flatbed And 5 Ton
Underlift
Getting Serious
As with all our Tow Trucks, customization is the order of the day
and we will build your carrier the way you want it. Do not hesitate
to inquire, standard and customized carriers are surprisingly
inexpensive.
Our FB 15 is over built to ensure durability and long life; this
will protect your investment and keep you on the road longer and
hauling more vehicles faster. Owners and fleet operators alike will
quickly discover that this light duty carrier is the best value
that is available on the market today.
With a 9 ton rating, the FB 15 is a serious worker. There is no
need to refuse calls for heavier trucks anymore, you should be able
to pick it up with the FB 15.
Some optional equipment may be shown.
All ratings are based on structural and design factors only.
Vehicle chassis capacity and capabilities can vary significantly,
affecting the overall performance and rating of the unit. All
chassis specifications are minimums, heavier specifications may be
required depending on chassis and equipment weights. Please contact
your nearest distributor for additional information.
Our Tow Trucks reserves the right to change, improve or modify
products, which may change the specifications, models and features
availability at any time without notice and without obligation.
Please contact your nearest distributor for additional information.
Standard Features
- Standard width of 2463 mm ( 97 " )
- One 914 mm ( 36 " ) side toolbox
- Independent light pylon
- Chrome door handle
- Driver and passenger side manual controls
- Safety chains
Options:
- Wireless remote control
- 1828 mm ( 72 " ) side box
- 2590 mm ( 102 " ) Wide bed
- Frame forks
- Wheel lift receivers for single / double tires
- Removable rails
- Full recovery tool package
- Custom storage system
- Front push bumper
- XP, X - shape side puller
- In cab controls
- Full size LED light bar
- LED - working lights, strobe lights, lights inside toolbox
- Custom painting
- Installation services and extended warranty
- Tow operators education & training
| UNDERLIFT SPECIFICATIONS |
| Tow Rating | 5 ton |
| Extended Capacity | 2 . 5 ton |
| Tilt angles | - 6 ° |
| DECK SPECIFICATIONS |
| Deck length | 5486 mm ( 18 ' ) to 6705 mm ( 22 ' ) |
| Deck rating | 9 ton |
| WINCH SPECIFICATIONS |
| Pulling force | 10 ton |
| Winch Type | Worm gear |
| Cable length | 10 mm x 30 m ( 3 / 8 " x 100 ' ) |
| CHASSIS REQUIREMENTS |
| FA axle weight (min) | 3 . 6 ton ( 8 , 000 lbs ) to 8 . 6 ton ( 19 , 000 lbs ) |
| RA axle weight (min) | 6 . 1 ton ( 13 , 500 lbs ) to 8 . 6 ton ( 19 , 000 lbs ) |
| REFERENCE TABLE |
| Deck Length | Minimum Cab – to - Axle |
| 6248 mm ( 20 . 5 ' ) | 3352 mm ( 132 " ) |
| 6400 mm ( 21 ' ) | 3505 mm ( 138 " ) |
| 6553 mm ( 21 . 5 ' ) | 3657 mm ( 144 " ) |
| 6705 mm ( 22 ' ) | 3810 mm ( 150 " ) |
| 7010 mm ( 23 ' ) | 3962 mm ( 156 " ) |
| 7315 mm ( 24 ' ) | 4216 mm ( 166 " ) |
| 7620 mm ( 25 ' ) | 4318 mm ( 170 " ) |
| 7924 mm ( 26 ' ) | 4622 mm ( 182 " ) |

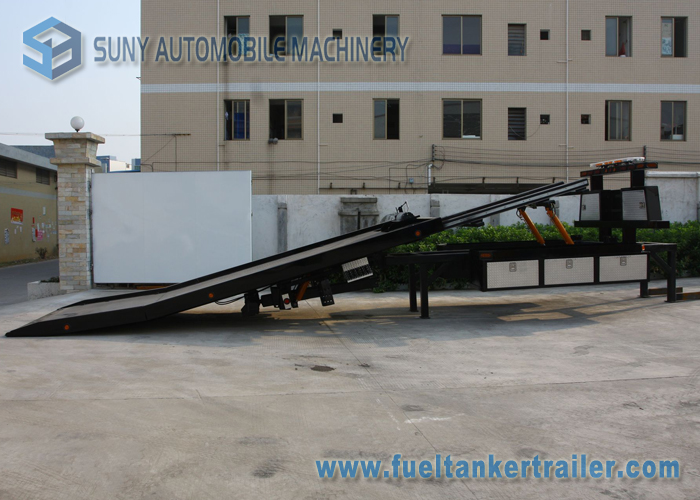

More Photo:
