38000 L Chemical Tank Trailer , Butyl Acetate Semi Trailer truck
Description & Applications:
SUNY Automobile Manufacture chemical liquid transport truck and
chemical tanker semi trailer, horizontal chemical liquid tank,
chemical liquid tanker container. In accordance with the media
different, we will recommend correct material fabricate storage
tankers. Chemical liquid transport vehicle widely used in loading
and unloading acid, alkali, salt and other corrosive, dangerous
media.
1, Tanker material can be chosen according to the need to use
carbon steel, carbon steel lined with polyurethane epoxy,
anti-corrosion, stainless steel, plastic, aluminum, etc.
2, Tanker shape: ellipse shape, trapezoid shape, cylinder shape.
3, Chemical pump: selection of domestic well-known enterprises of
high quality chemical liquid pump.
4, Function: independent or warehouse, packing, liquid food with
different chemicals.
5, inside is provided with a plurality of plastic breakwater
partition. Fully through the high-pressure air tightness test, the
tank strength is high, the center of gravity, vehicle safety and
smooth.
Competitive Advantage:
We can be completely customized all different truck and trailer
according to customer needs; with advanced design concept; the
production process and the first class process, as well as
services; competitive prices.
Specifications:
38 m3 butyl acetate chemical liquid tanker semi trailer
| Model : SY9338GHGYSDZ ( 38 m3 butyl acetate chemical liquid tanker semi trailer ) |
| DIMENSIONS & WEIGHT |
| Overall Dimensions ( L * W * H ) | 10620 * 2490 * 3850 mm |
| Volume | 38 m3 = 38000 Liters |
| MAX. GVW | 40000 kg |
| Kerb weight | 9900 kg |
| Pay load | 30100 kg |
| Tanker |
| Tank Material | Stainless Steel 304, inner is polyurethane epoxy, anti-corrosion.
Middle is rock wool insulation, and outer is opting MS or SS cover
plate. |
| shape | Cylinder or Trapezoid shape |
| Thickness of shell | SS 4 mm |
| Thickness of dish | SS 5 mm |
| Working temperature | - 20 °C to + 70 °C |
| Compartments | The tank is divided in 1 room. Opting more |

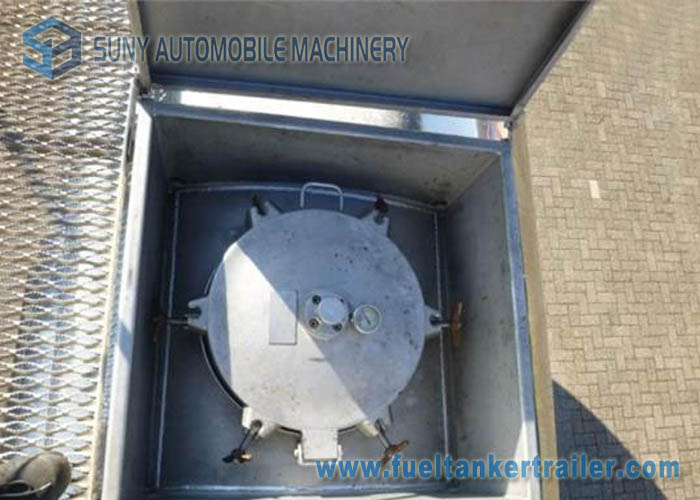

| Manhole | 1 set of DN500 mm / SS304, with breathe valve |
| Unloading valve | 2 sets of DN80 fixed at bottom of tank |
| Pipeline at bottom of tank | 4” seamless steel tube Q235 |
| Labeling system | Oil type indication |
| Anti-static electricity | Pulling, wire carrier, sheet copper (6 sheet standard layout) |
| Running Gear |
| Axle | BPW 3-pcs * 12 T axles, double wheel. |
| Tire & Rim | 12-pcs * 11.00R22.5 tyres (opting different brand tire) 12-pcs * 8.25R22.5 rim (opting steel rim or aluminum alloy rim ) |
| Suspension | Mechanical suspension (opting air suspension) |
| King pin | JOST C200 2.0" 50 # kingpin (50#) opting, 3.5” ( 90 # ) |
| Landing legs | 1 pair . JOST |
| Air tank | 2 set |
| Spring brake chamber | 2-pcs T3030, 2-pc T30 |
| Air connector | 1 set stander air connector |
| Valve | 1 pc WABCO ABS |
| Electrical system | Complete electrical system with 7 socked . 24 V. One set of LED standard lambs; One set of standard cable. |
| Painting | One primer +final painting All steel parts are sand blasted before painting. Anti-corrosion. Primeer, finished urethane paint. All painting are according to customer’s requirement. |
| Accessories |
| Mudguards | PVC Mudguards |
| Side protection | √ |
| Spare tire carrier | √ |
| Ladder | √ |
| Guard on top of tank | √ |
| Side guard | √ |
| Rear bottom guard | √ |
| Work tank deck | √ |
| Fire extinguisher box | 2 unit at the back of each side |
| Hand rail | √ |
| Hose and Carrier | 1-pc. hose carrier on left and right each side |
| Tool box | 1 set tool box |
