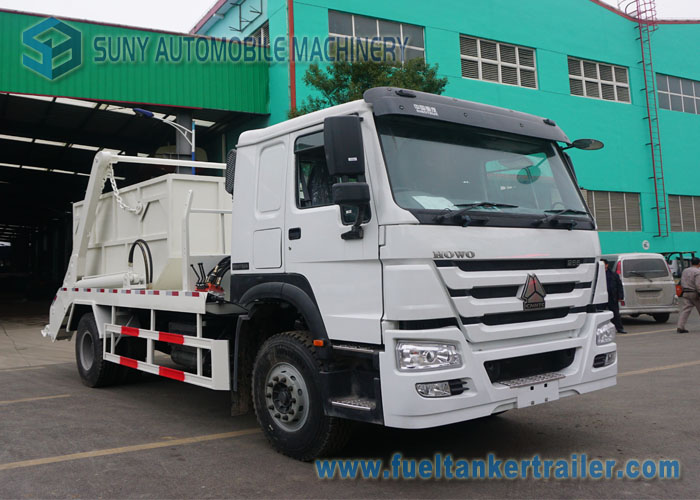

Sinotruk 12m3 Swing Arm Garbage truck HOWO Chassis 4x2 Drive 266hp
Description:
1, The large hydraulic cylinder drive the double arms, to install
hydraulic legs to make sure the stability and safety of vehicle
during operation.
2, the type of garbage box: sealed, semi-enclosed. The shape of
garbage box: rectangular shape, trapezoidal.
3, The characterized of this vehicle: cargo compartment and vehicle
body can be separated. One vehicle can work with more one garbage
cargo body, recycling transport, improve the transport capacity,
specially for short-distance transport, such as the sanitation
department.
Competitive Advantage:
1- strict quality control ---- stable and good quality for each
truck.
2- competitive price ----- based on same product, our price is most
competitive
3- powful R & D capabilities ------ we can design and produce the
truck according to different countries’ demand.
4- best service ----- we cherish each customer and opportunity.
Specifications:
Sinotruk 12m3 Swing Arm Garbage truck HOWO Chassis 4x2 Drive 266hp
| Chassis | ZZ1167M4611 |
| Engine | Make: Sinotruk Diesel: 4-stroke direct injection Diesel engine Engine model: WD615.62, Euro Ⅱ 6-cylinder in-line with water cooling, turbo-charging and inter
cooling Maximum output: 266 hp (196 KW) Maximum torque: 1100N.m Number of cylinder: 6 |
| Cab | HW76, One sleeper, two seats with air-conditioner, safety belts
with double locking mechanism, new face, exterior sun visor. |
| Clutch | Single-plate dry clutch, hydraulically operating with air
assistance |
| Transmission | HW13710 , 10 forward & 2 reverse Max.toque: 1350Nm |
| Front Axle | HF7 Max.Loading: 7000Kgs |
| Rear Axle | ST16 Max Loading: 16000Kgs |
| Steering | ZF, Power Steering and Right Hand Driving |
| Brakes | Service brake: dual circuit compressed air brake Parking brake :(emergency brake): spring energy, compressed air
operating on rear wheels Auxiliary brake: engine exhaust valve brake |
| Wheels & Tyres | Tyre: 12.00R20 (Radial) |
| Max.Speed | 90km/H |
| Dimensions in mm | Wheel base 4600 Front overhang 1500 Rear overhang 2277 Approach angle(°) 23 Departure angle(°) 15 Overall dimension(L x W x H mm) 8200×2500×3350 |
| Weight in kg | Dead weight 8405 Gross vehicle weight 16000 |
| Body | Volume of body(m3) 12 Discharging Angle (°) ≥ 100 Lifting Unloading Time (s) ≤ 50 Angle of swing arm 130±1° Body dimension 3600*2000*1600mm Body thickness floor 8mm side 6mm |
