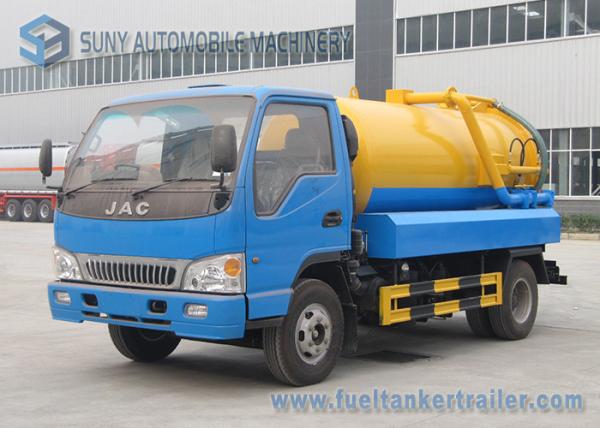

    JAC RHD LHD 6000L Sewage Vacuum Truck With Pump 6000 L Water Tank Volume

    Ask Lasest Price
    Brand Name : SUNY
    Model Number : SY5060GXW
    Certification : CCC, ASME, BV, SGS, etc
    Price : USD2000-28000 / Set
    Supply Ability : 3000 sets per year
    Delivery Time : 25 days after receiving deposits
    • Product Details
    • Company Profile

    JAC RHD LHD 6000L Sewage Vacuum Truck With Pump 6000 L Water Tank Volume

    JAC RHD LHD 6000L Sewage Vacuum Truck With Pump 6000 L Water Tank Volume




    Description:

    1. JAC 4x2 sewage suction tank truck cab - single row, optional: A/C
    2. JAC 4x2 vacuum sewage truck Engine - Yuchai ,yunnei , 4 cylinders
    3. JAC 4x2 vacuum truck manual gearbox -5-speed
    4. JAC 4x2 sewage truck drive axle loading capacity- 5T
    5. JAC 4x2 vacuum suction truck tire - 7.00-R16
    6. JAC 4x2 vacuum sewage sucking truck tank capacity -4000-6000L


    Applications:

    1. Cleaning of pipes from pollution.
    2. Liquidation of emergency blockages.
    3. Removal of ground formations


    Competitive Advantage:

    1. Equipped with special vacuum pump, Equipped with power take off, transmission shaft, high pressure sewage tank, pipe network, sewage pipe for observing and cleanout equipment, Time for full suction<5min
    2. The Sewage Suction Trucks, special section, taking the force transmission device by rotary vane pumps, vacuum pump, ( with domestic leading technology big suction ) oil and gas separation device, hydrosphere separator, vacuum pressure gauge, pressure vessel, pipe system composition, and equipped with hand-washing facilities and visual dung tube.
    3. The tanks bulbar and the horizontal sextant angle are greater than the material rest angle, ensuring the discharging speed.
    4. The diesel engine ( air compressor unit ), providing compressed air.


    Specification:

    Sewage Suction Vacuum Truck Technical Specification
    Product NameJAC 4x2
    SEWAGE SUCTION TRUCK
    Chassis ModelHFC1080
    Fuel typeDiesel
    Emission StandardEuro 3(EGR)
    Cabinsingle row
    Whole Vehicle
    main dimensions (mm)
    Overall dimensions (LxWxH)5700*2200*2600
    Wheel base3360-3800
    Min. ground clearance480
    Weight data (kg)G.V.W9000
    Curb weight4500
    Max payload4000-6000
    Whole vehicle
    main performance
    Max. speed (km/h)95
    Max. slope of climb (%)30
    Engine


    ModelYC95, CY4102
    Maximum power90-120HP
    Number of cylinders4
    Displacement (ml)3800
    Gear boxModel5
    Number of gears5 forward gears &1 reverse
    AxleFront Load capacity (ton)3
    Rear Load capacity (ton)5
    Steering Wheelleft/right hand driveLHD,Optional RHD
    Brake systemService brakeAir braking,Optional ABS
    Electric deviceRated voltage24V
    Tyres&Quantity9.00-20& 6+1

    Sewage Suction Vacuum Truck Special Tank Description

    Tank

    Material:high quality carbon steel
    Structure:welding,vacuum tank,Cylindrical
    capacity(L)4000-6000
    thickness of material6mm
    pump





    typevacuum pump
    model50QZXDG-45/400
    flux(L/S)45
    rating speed(r/min)500
    shaft power(kw)4
    featuresLow speed,low fuel consumption,low noise,high vacuum,high efficiency
    manufactureHangzhou Weilong Pump Co.,Ltd,(Famous in China)
    pipe65-100mm suction and discharge pipe
    special functionsuction time ≤ 5min,
    effective suction range ≥ 8,
    max vacuum degree ≤ 15 Kpa,
    dump angle ≥ 45
    equipmentEquipped with power take off,transmission shaft,fecal tank, pipe network,fecal pipe for observing and cleanout equipment
    Time for full suction less than 5min
    hydraulic lift and lock discharge cover. sewage tube,vacuum pump,recovery,etc



    Details show:


    JAC RHD LHD 6000L Sewage Vacuum Truck With Pump 6000 L Water Tank VolumeJAC RHD LHD 6000L Sewage Vacuum Truck With Pump 6000 L Water Tank Volume
