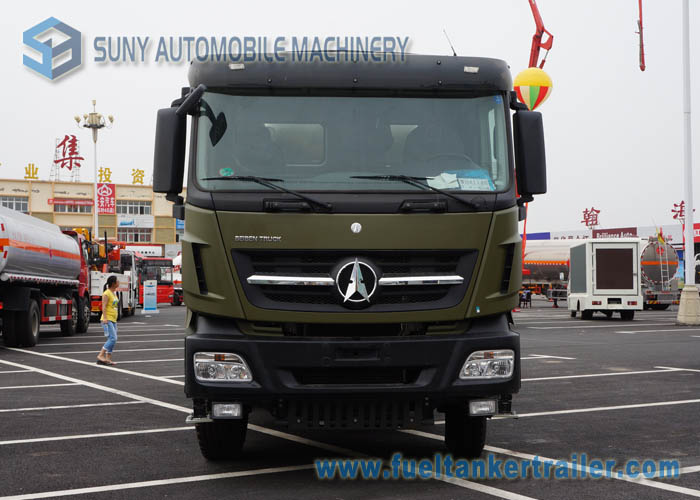

6X4 Beiben 5 M3 Military Concrete Mixer Truck With Mercedes Benz
Technology
Advantages
- One - stop shop , thousand kinds of products with military quality
for you to choose ;
- Most competitive and reasonable price , ready to develop together
with customer ;
- Reliable and effective performance , time = money ;
- Great after - sales service system , back you up all the time .
Specifications:
6X4 Beiben 5 M3 Military Concrete Mixer Truck With Mercedes Benz
Technology
| Beiben 5m3 concrete mixer truck ND5256GJBZ |
Whole Vehicle Parameters | Chassis | BEIBEN |
| Curb weight ( kg ) | 12780 |
| Total vehicle weight ( kg ) | 25000 |
| Overall dimensions ( L * W * H ) | 9400 x 2500 x 3900 |
| Wheelbase ( mm ) | 4100 + 1450 |
| Front overhang ( mm ) | 1410 |
| Rear overhang ( mm ) | 2640 |
| Max. Traveling speed ( km / h ) | 85 |
Vehicle Configuration | Clutch | Dry single dis clutch ( Φ 430 ) |
| Gearbox | FAST 9T - 1680 |
| Driving type | 6 x 4 |
| Steering mechanism | TAS85 |
| Service brake | Dual - circuit air brake |
| Parking braking | Spring - powered Air - cut - off brake |
| Auxiliary brake | Engine exhaust brake |
| Tire | 12 . 00R20 radial tire |
Engine Parameters | Model | WP10 . 340E32 |
| Feature | Diesel , 4 stroke , Direct injection , 6 cylinder in line , Turbo - charging , Inner cooling |
| Emission standard | Euro 3 |
| Max power ( kw ) | 340hp |
| Max torque ( N . m ) | 1500 |
Mixing Drum Parameters | Max mixing cubage ( m ³ ) | 5 |
| Feeding speed ( m ³ ) | 3 . 5 |
| Discharging speed ( m ³ ) | 3 |
| Leftover rate | Nearly Zero |
| Max Rotating Speed ( R / min ) | 14 - 16 |
| Mixing Drum Obliquity ( ° ) | 10 |
| Max mixing drum diameter ( mm ) | Φ 2412 |
Driving System | Hydraulic Pump | Italian TOP089 |
| Hydraulic Motor | TOP 089 |
| Speed reducer | TOP P68 |
| Water supply mode | Water pump ; pneumatic pump |
Packaging & Shipping
1 . All the trucks will be made antirust before shipment ;
2 . Different shipping method for different situation , Ro - Ro
Vessel , Bulk Vessel , Flat - Rack , Container , etc ;
3 . Shipment tracking service .
FAQ
Q : How about your product quality ?
A : The products have passed the ISO , CCC , SGS , BV , and
CONTECNA qualification certification , the quality is 100 % guaranteed .
Q : I want the front two tyres are bias tyre and the rear 9 tyres
are radial tyres , is it ok ?
A : We can make the tyres as your requirement to suit your country
' s need . In fact , you can tell us all your special requirements
, we will try our best to satisfy your need .
Q : I want to transport the truck by container , is it ok ?
A : Yes , it is ok . But we may need to take apart the truck . You
should make sure that the truck could be reinstalled in your
country .
Q : How to transport the truck ?
A : We mainly transport the truck by ro - ro ship or bulk ship .
The truck will be anti - rusted before shipping to avoid the damage
frome the sea water .
Q : Can you supply the spare parts of this truck ?
A : Yes , We can supply the spare parts for all the trucks we sell
, We have spare parts department professional for this . Once you
make sure the model of the spare part , we can supply it
immediately .
Q : Do you have oversea service ?
A : When you have some problems which you can ’ t solve . we will
arrange our engineers to your country to help you .
If there is any other questions , please feel free to contact us
any time, we will be at your service 24 hours . Suny the future ,
ready to grow together with you !
