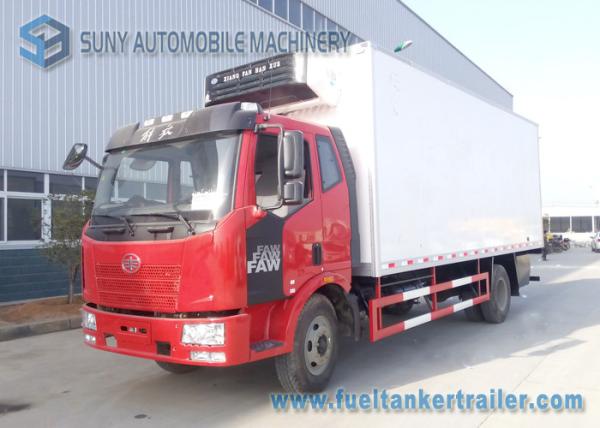

180 HP FAW J6 4x2 Refrigerator Van Truck Load 10T Box Volume 30 Cubic

    Buy cheap 180 HP FAW J6 4x2 Refrigerator Van Truck Load 10T Box Volume 30 Cubic from wholesalers

    Buy cheap 180 HP FAW J6 4x2 Refrigerator Van Truck Load 10T Box Volume 30 Cubic from wholesalers
    • Buy cheap 180 HP FAW J6 4x2 Refrigerator Van Truck Load 10T Box Volume 30 Cubic from wholesalers
    • Buy cheap 180 HP FAW J6 4x2 Refrigerator Van Truck Load 10T Box Volume 30 Cubic from wholesalers
    • Buy cheap 180 HP FAW J6 4x2 Refrigerator Van Truck Load 10T Box Volume 30 Cubic from wholesalers

    180 HP FAW J6 4x2 Refrigerator Van Truck Load 10T Box Volume 30 Cubic

    Ask Lasest Price
    Brand Name : SUNY
    Model Number : CA1160
    Certification : CCC, ASME, BV, SGS, etc
    Price : USD 20,000 ~ 40,000 / Unit
    Supply Ability : 500 Units / Month
    Delivery Time : 15 ~ 20 working days
    • Product Details
    • Company Profile

    180 HP FAW J6 4x2 Refrigerator Van Truck Load 10T Box Volume 30 Cubic

    180 HP FAW J6 4x2 Refrigerated Box Truck Load 10T Box Volume 30 Cubic


    4x2 FAW Refrigerated trucks, Refrigerator Trucks, Frozen Truck , Reefer Van Truck , Cooling Box Truck , Insulation Van Truck (no refrigerator unit)


    Thickness: FRP inside & outside of the van, polyurethane as the insulation.

    Stainless steel, Q235A steel sheet or aluminum are all optional.
    Refrigerators chosen from:
    South korean Hanya, HuaSu.
    American Thermoking, Carrier.
    Chinese Xinfei, Kingbo, etc.


    Temperature reaches from -18°C to 5°C
    Total capacity: approx. 8000 KG ~ 10000 KG ~ 12000kg ~ Max .15000 KG
    Other spares like hooks, bottom slot, shelves, extra doors, etc. are all optional


    Products Technical Specification
    Brand-SeriesFAW
    Product Name4x2 Refrigerated truck
    Fuel typeDiesel
    Emission StandardEuro 3
    CabinHalf row , With A/C
    Chassis standard configuration
    Chassis modelCA1160
    Whole vehicle main dimensions (mm)Overall dimensions (L×W×H)8500*2500*3850
    Cargo body dimensions (L×W×H)5450*2400*2560
    Wheel base4700
    Front / Rear track base1914 / 1847
    Front / Rear overhang1400 / 2550
    Weight data (kg)G.V.W16000
    Curb weight (chassis)7570
    Max payload8000~ 15000
    Whole vehicle
    main performance
    Max. speed (km/h)90
    Max. slope of climb (%)30
    EngineModelBF6M2012-18E4
    Maximum power139 KW / 180 HP
    Number of cylinders4
    Displacement (lit)6.06
    Engine ManufacturerFAW
    Gear boxNumber of gears6 forward gears & 1 reverse
    AxleFront / Rear Load capacity(ton)5 / 10
    SuspensionFront / Rear Spring plate10/12+8,13/12+8,12/12+8
    Steering Wheelleft/right hand driveLHD
    Brake systemService brakeAil braking
    Electric deviceVoltage (V)24
    Tire & Quantity10. 00R 20 & 6+1
    Cargo Body Standard Configuration
    Cargo Body Size(L×W×H) mm5450*2400*2560
    Cargo Body MaterialFRP inside & outside of the van, polyurethane as the insulation
    Cargo body thickness80mm
    Back DoorSingle door
    Side doorOptional
    Refrigeration systemsEquipped with DT-500
    Temperature RangeNormal temperature,refrigeration temperature reached -18C to 0°C
    Others

    Stainless Steel door frame, Stainless steel corrugated floor,

    Mark lamp at the four (4) corners f the body,

    Room lamp will be provided inside the cabin.

    1. Van Material: Color plate inside,FRP outside of the van,polyurethane foam middle.stainless steel, Q235 steel sheet or aluminum are all optional.
      2.Refrigerators chosen brand from: South korean Hanya, HuaSu
    2. ;American Thermoking, Carrier;Chinese HANXUE, Kingbo, etc.
      3.Other spares like hooks, bottom slot, shelves,extra doors, etc. are all optional.
