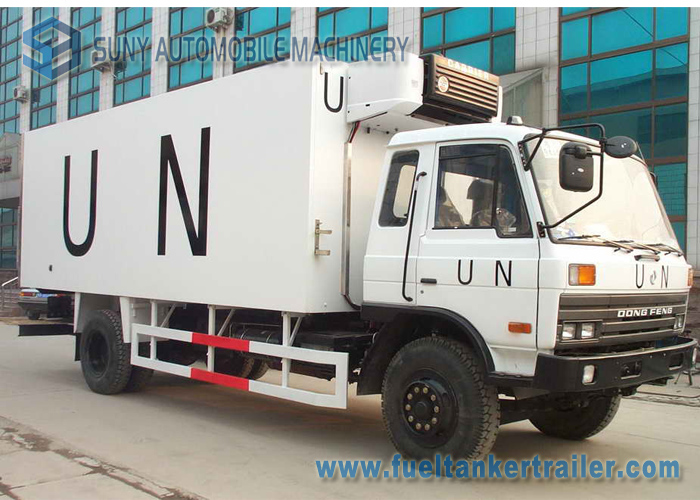

    Cummins Engine 210 HP 6x4 Refrigerator Van Truck Load 20 T - 25 T

    Ask Lasest Price
    Brand Name : SUNY
    Model Number : EQ1258
    Certification : CCC, ASME, BV, SGS, etc
    Price : USD 30,000 ~ 45,000 / Unit
    Supply Ability : 500 Units / Month
    Delivery Time : 15 ~ 20 working days
    • Product Details
    • Company Profile

    Cummins Engine 210 HP 6x4 Refrigerator Van Truck Load 20 T - 25 T

    Cummins Engine 210 HP 6x4 Refrigerated Box Truck Load 20 T - 25 T

    Box Volume 20 ~ 30 Cubic


    6x4 Dongfeng Refrigerated trucks, Refrigerator Trucks, Frozen Truck , Reefer Van Truck , Cooling Box Truck , Insulation Van Truck (no refrigerator unit)


    Thickness: FRP inside & outside of the van, polyurethane as the insulation.

    Stainless steel, Q235A steel sheet or aluminum are all optional.
    Refrigerators chosen from:
    South korean Hanya, HuaSu.
    American Thermoking, Carrier.
    Chinese Xinfei, Kingbo, etc.


    Temperature reaches from -10°C to 0°C
    Total capacity: approx. 20000 KG ~ 25000 KG ~ Max .30000 KG
    Other spares like hooks, bottom slot, shelves, extra doors, etc. are all optional


    Products Technical Specification
    Brand-SeriesDongfeng
    Product Name6*4 Refrigerated truck
    Fuel typeDiesel
    Emission StandardEuro 3
    CabinHalf row, Optional A/C
    Chassis standard configuration
    Chassis modelEQ1258
    Whole vehicle main dimensions (mm)Overall dimensions (L×W×H)9800*2480*3900
    Cargo body dimensions (L×W×H)6900*2300*2100
    Wheel base4350+1300
    Front / Rear track base1680 / 1650
    Front / Rear overhang1245 / 2465
    Weight data (kg)G.V.W25000
    Curb weight (chassis)10395
    Max payload20000 ~ 30000
    Whole vehicle
    main performance
    Max. speed (km/h)90
    Max. slope of climb (%)30
    EngineModelB210 33
    Maximum power155kw / 210hp
    Number of cylinders6
    Displacement (lit)5.9
    Engine ManufacturerDongfneg Cummins
    Gear boxNumber of gears8 forward gears & 1 reverse
    AxleFront / Rear Load capacity(ton)5 / 10
    SuspensionFront / Rear Spring plate8/13
    Steering Wheelleft/right hand driveLHD
    Brake systemService brakeAir braking
    Electric deviceVoltage (V)24
    Tyres & Quantity11.00-20 & 10+1
    Cargo Body Standard Configuration
    Cargo Body Size(L×W×H) mm6900*2300*2100
    Cargo Body MaterialFRP inside & outside of the van, polyurethane as the insulation
    Crago body thickness80mm
    Back DoorSingle door
    Side doorOptional
    Refrigeration systems

    Equipped with DT-230

    Brand: NIDIAN THERMO (South korean Hanya)

    Temperature RangeNormal temperature, refrigeration temperature reached -10°C to 0°C
    Others

    Stainless Steel door frame, Stainless steel corrugated floor,

    Mark lamp at the four (4) corners f the body,

    Room lamp will be provided inside the cabin.
