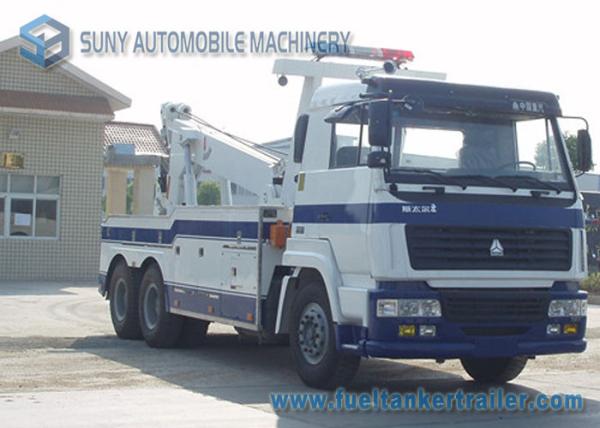

    Styer King Heavy Wrecker Tow Truck Breakdown Truck With INT 35 Wrecker Body

    Ask Lasest Price
    Brand Name : SUNY
    Model Number : SYWUINT35ST
    Certification : CCC, ASME, BV, SGS, etc
    Price : USD 27, 000 ~ 55, 000 per unit
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 600 units per year
    Delivery Time : 25 ~ 45 working days after we get the deposit
    • Product Details
    • Company Profile

    Styer King Heavy Wrecker Tow Truck Breakdown Truck With INT 35 Wrecker Body

    Styer King Heavy Wrecker Trucks Breakdown Truck With INT 35 Wrecker Body


    Description :


    As with all Suny Tow Trucks , customization is the order of the day and we ' ll build your wrecker the way you want it . Don ' t hesitate to inquire , standard and customized wreckers are surprisingly inexpensive .


    Our INT - 35 unit is an everyday heavy wrecker ideal for every job from a tractor trailer to recovery calls . This unit will spend little time in you yard as it will always be grabbing the lucrative calls . It has been designed from the ground up with the operator in mind for towing and recovery calls and to work with loads up to 35 ton ( 77 , 000 lbs ) .


    Our INT - 35 is over - built to ensure durability and long - life ; this will protect your investment and keep you on the road longer and hauling more vehicles faster . Owners and fleet operators alike will quickly discover that this light duty wrecker is the best value that ' s available on the market today .


    Specifications :


    Styer King 10 Wheeler Heavy Duty Breakdown Truck With INT 35 Wrecker Body


    Summary
    wrecker refited from Sino ZZ1256M4646F chassis , the vehicle appearance is esthetic , durable in use , Tow and hang and connect with the body , the function is powerful , is the best style of removing obstacles on the road and garage .
    Basic Information
    Vehicle namesteyer double rear axleChassisZZ1256M4646F
    Outline size ( L × W × H ) ( mm )9480 × 2498 × 3270

    Cargo inline size

    ( L × W × H ) ( mm )

    /
    Rating mass ( kg )/Empty mass ( Kg )19150
    Full mass ( kg )25000Emission standardEuro 2
    Engine Information
    ModelWD615 . 67AType/
    Power / displacement ( KW / ML )206 / 9726ManufactureWei Chai Power CO . LTD
    Chassis Information
    Wheelbase ( mm )4600 + 1350Axle load ( kg )/
    Tire11 . 00 - 20Max speed ( km / h )90
    Front overhang ( mm )1958Rear overhang ( mm )1830
    Front track ( mm )1560Rear track ( mm )1230
    Approach angel ( ° )15Departure angle ( ° )19
    Steering/Brake/
    CabinBlunt end all - metal upturning ( 6 × 4 )
    Special function
    Rating load ( Kg )5655Max load ( kg )9600
    Bracket arm max Length ( mm )1700Bracket arm companding Length ( mm )3530
    Board Size ( L × W ) ( mm )/Min slant angle ( ° )/
    Board working stroke ( mm )2850Max tow speed ( km / h )40
    Winch NO .2Rating tow capacity ( kg )10000 * 2
    Steel wire rope lenth ( m )40Winch speed5

    UNDERLIFT SPECIFICATIONS
    Tow Rating36 . 2 ton ( 80 , 000 lbs )
    Retracted capacity on forks24 . 9 ton ( 55 , 000 lbs )
    Retracted distance to the forks1514 mm ( 60 " ) / 1701 mm ( 67 " )
    Extended capacity on forks7 . 2 ton ( 16 , 000 lbs )
    Extended distance to the forks2936 mm ( 116 " ) / 3657 mm ( 144 " )
    Tilt angles- 6 °

    BOOM SPECIFICATIONS at 32 °
    Retracted capacity35 ton ( 77 , 100 lbs )
    Extended capacity17 , 5 ton ( 38 , 500 lbs )
    Extended capacity32 °
    Maximum hook height5913 mm ( 233 " )
    Reach past tailboard3373 mm ( 133 " )

    WINCH SPECIFICATIONS
    Quantity2 winches
    Pulling force ( on 1st layer )20 ton ( 44 , 000 lbs )
    Winch TypePlanetary
    Cable length19 mm x 60 m ( 3 / 4 " x 200 ' )

    CHASSIS REQUIREMENTS
    FA axle ( s ) weight ( min )6 ton ( 13 , 200 lbs )
    RA axle(s) weight (min)2 x 9 ton ( 20 , 000 lbs )
    Recomended Tire sizeR22 . 5
    Clear CA4114 mm ( 162 " )
    Recomended GVW24 ton ( 53 , 200 lbs )

    Standard Features

    • 4114 mm ( 162 " ) Cab to centre of tandem steel body
    • Frame fork holders
    • Frame fork racks
    • Chain racks
    • 4 sets of frame forks
    • Chrome door handle
    • Driver and passenger side manual controls
    • Safety chains

    Options :

    • Wireless remote control
    • 609 mm ( 24 " ) , 762 mm ( 30 " ) , 914 mm ( 36 " ) , 1219 mm ( 48 " ) , 1828 mm ( 72 " ) tunnel box
    • Custom length tunnel box
    • Extra frame forks
    • Wheel lift receivers for single / double tires
    • Full recovery tool package
    • Custom storage system
    • Aluminum / Composite body
    • European body style
    • Gravel guard undercoating finish
    • Front push bumper
    • XP , X - shape side puller
    • Chrome hand rails
    • A - arm style side winches
    • In cab controls
    • European style low under lift
    • Full size LED light bar
    • LED - working lights, strobe lights , lights inside toolbox
    • Custom painting
    • Installation services and extended warranty
    • Tow operators education & training
