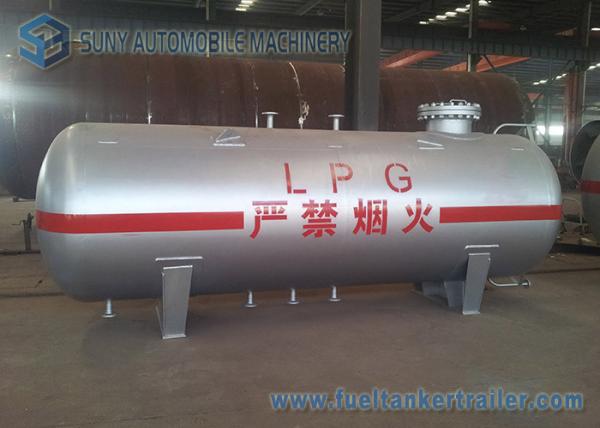

LPG Tank Trailer 32 CBM Carbon Steel Q345R Horizontal LPG Storage
Tanks LPG Filling Station
Brief of LPG storage tank
Lpg tank is also called LPG storage tank , LPg storage tanker, LPG
tanker, LPG tank stroage , LPg tanker storage.
it is mainly used to storgae LPG, cooking gas or gas. we can
provide 5000L, 8000L,
10000L,12000L,15000L,20000L,25000L,32000L,40000L,50000L,60000L,80000L,100000L,120000L
etc.
LPG Tank Series Advantage
1. Original Price: FOB, CNF/CFR, CIF,DAF
2. Certificates: CCC, ISO, BV, GJB, CQC ,SGS , ASME
3. Promptly Delivery: 15-30 days
4. Excellent After-sale Service and Customization Service
5. One-stop shop, thousand kinds of products with military quality
for you to choose
6. Most competitive and reasonable price, ready to develop together
with customer
7. Reliable and effective performance, time=money
8. Great after-sales service system, back you up all the time
Quick description of LPG Bullet Tank
(1). LPG propane storage tank volume : 5-120M3 = 5000~120000 liters
(2). LPG storage tank design standard:ASME ,China GB150
(3). LPG storage tank design pressure:1.77Mpa
(4). LPG storage tank useful time: 10-20 years
LPG storage tank Specifications:
| tank diameter | 2300mm | 2400mm |
| tank type | III | III |
| working Medium | LPG (propane) | LPG(propane) |
| Design Specific Gravity | 0.42 Kg/M3 | 0.42 Kg/M3 |
| media characteristics | Flammable and explosive | flammable and
explosive |
| capacity | 32M3 | 32M3 |
| External Dimensions (length*width*height) | 8158*2324*2914mm | 7508*2428*3018mm |
| tank weight (nominal) | 7110kg | 7710kg |
| max payload weight | 12768kg | 12768kg |
| tank material | Q345R | Q345R |
| Barrel design thickness | 12mm | 14mm |
| Head design thickness | 14mm | 14mm |
| welded joint coefficient | 1.0 | 1.0 |
| design temperature | 50ºC | 50ºC |
| working temperature | -20~50 ºC | -20~50 ºC |
| Corrosion allowance | 1.0 mm | 1.0 mm |
| design pressure | 1.77 MPa | 1.77 MPa |
| Hydraulic test pressure | 2.22 MPa | 2.22 MPa |
| leak test pressure | 1.77 MPa | 1.77 MPa |
| Heat treatment type | Wholly get rid of tress | Wholly get rid of tress |
| Paint | paint white color, or paint the color you request. | paint white color, or paint the color you request. |
| The first install Accessories | Safe valve, Disconnecting valve, Level gauge, Pressure meter,
Temperature meter | Safe valve, Disconnecting valve, Level gauge, Pressure meter,
Temperature meter |
LPG storage tank more details show
