LPG Tank Trailer ASME 5000l Lpg Storage Tank 5M3 5000liters Lpg Iso
Containers
LPG Tank Series Advantage
1. Original Price: FOB, CNF/CFR, CIF,DAF
2. Certificates: CCC, ISO, BV , SGS
3. Produce standard : GB150 , ASME
4. Gas tank is usually used to store and transport gas. According to
the different ability of bearing pressure, it has high pressure gas
tank, low pressure gas tank and normal pressure gas tank; According
to the different materials, it has stainless steel gas tank,
stainless carton steel gas tank and stainless alloy gas tank.
5.5000L LPG storage tank ASME, LPG gas storage tanks for sale, ASME
LPG gas tank 5000L LPG bulk tank 5000 liters LPG gas storage tanks
for sale
Quick description of LPG Bullet Tank
(1). LPG propane storage tank volume : 5000 liters , 5000L , 5cbm ,
5M3
(2). LPG storage tank design standard:ASME ,China GB150
(3). LPG storage tank design pressure:1.77Mpa ,17.7Bar
(4). LPG storage tank useful time: 10-20 years
(5). ASME ISO LPG tank loading weight : 2030kg
LPG storage tank Specifications:
| tank diameter | 1600mm |
| tank type | III |
| working Medium | LPG (propane) |
| Design Specific Gravity | 0.42 Kg/M3 |
| media characteristics | Flammable and explosive |
| capacity | 5M3 |
| External Dimensions (length*width*height) | 3070*1620*2210mm |
| tank weight (nominal) | 2030kg |
| max payload weight | 1995kg |
| tank material | Q345R |
| Barrel design thickness | 10mm |
| Head design thickness | 10mm |
| welded joint coefficient | 1.0 |
| design temperature | 50ºC |
| working temperature | -20~50 ºC |
| Corrosion allowance | 1.0 mm |
| design pressure | 1.77 MPa |
| Hydraulic test pressure | 2.22 MPa |
| leak test pressure | 1.77 MPa |
| Heat treatment type | Wholly get rid of tress |
| Paint | paint white color, or paint the color you request. |
| The first install Accessories | Safe valve, Disconnecting valve, Level gauge, Pressure meter,
Temperature meter |
| Standard design and manufacture | 1.JB/T4731-2005 < Steel horizontal vessels on saddle
supports> 2.GB150-1998<steel pressure vessels> 3.TSG R0004-2009<Supervision regulation on safety technology for
stationary pressure vessel> 4.HG20584-1998<technical requirements for fabrication of steel
chemical vessels> 5.NB/T47015-2010<welding specification for steel pressure
vessels> |

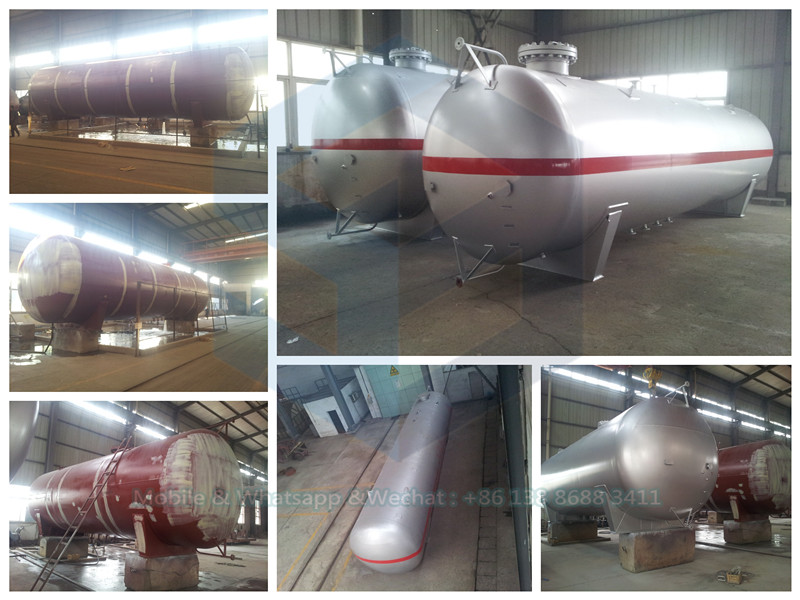

LPG storage tank more details show
