Dongfeng 4 x 2 Asphalt Tanker Trailer 8000 L -10000 L Tianjin Cab

    Buy cheap Dongfeng 4 x 2 Asphalt Tanker Trailer 8000 L -10000 L Tianjin Cab from wholesalers

    Buy cheap Dongfeng 4 x 2 Asphalt Tanker Trailer 8000 L -10000 L Tianjin Cab from wholesalers
    • Buy cheap Dongfeng 4 x 2 Asphalt Tanker Trailer 8000 L -10000 L Tianjin Cab from wholesalers
    • Buy cheap Dongfeng 4 x 2 Asphalt Tanker Trailer 8000 L -10000 L Tianjin Cab from wholesalers
    • Buy cheap Dongfeng 4 x 2 Asphalt Tanker Trailer 8000 L -10000 L Tianjin Cab from wholesalers
    • Buy cheap Dongfeng 4 x 2 Asphalt Tanker Trailer 8000 L -10000 L Tianjin Cab from wholesalers

    Dongfeng 4 x 2 Asphalt Tanker Trailer 8000 L -10000 L Tianjin Cab

    Ask Lasest Price
    Brand Name : SUNY
    Model Number : SY5107LQ
    Certification : CCC, ASME, BV, SGS, etc
    Price : USD40000 /set- USD90000/set
    Payment Terms : Western Union, T/T, L/C
    Supply Ability : 200 set per month
    Delivery Time : 15-25 working days
    • Product Details
    • Company Profile

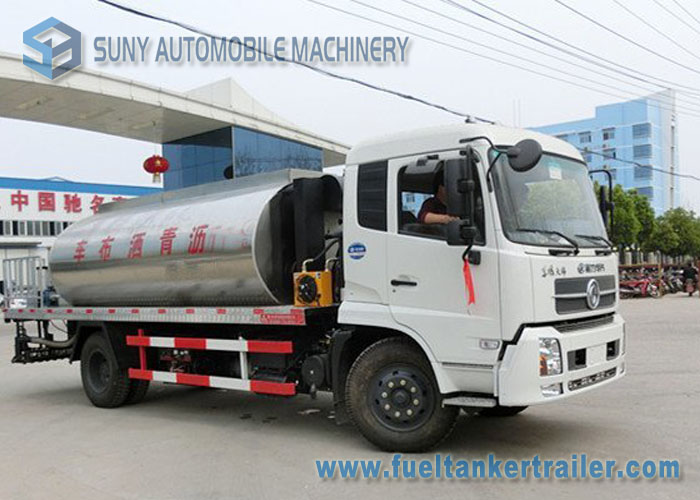

    Dongfeng 4 x 2 Asphalt Tanker Trailer 8000 L -10000 L Tianjin Cab

    Dongfeng 4 x 2 8000 L -10000 L Asphalt Distributor Truck Tianjin Cab


    Description & application:


    1-It is for asphalt distribution of the road construction.

    2-It is easily to operate with reasonable desgin. And steady and reliable quality ensure the average distribution of the Asphalt.

    3-The performance of the truck can achieve to top level of the world. It can work in bad condition.



    Competitive Advantage:


    1- powful R & D capabilities ---- we can design and produce the truck according to different fire equipment of different countries so that it can be fit for different countries’ demand.
    2- strict quality control ---- stable quality for each truck
    3- competitive price ----- based on same product, our price is most competitive
    4- best service ----- we cherish each customer and opportunity.

    Dongfeng 4 x 2 8000 L -10000 L Asphalt Distributor Truck Tianjin Cab

    Vehicle Description
    Vehicle modelAsphalt DistributorOverall dimensions (mm)8450x2490x3560
    GVW (kg)Appro×16000Fact loading capacity (L)8000
    Mass in working order (kg)Appro×8000Max. Speed (km/h)95
    Chassis Description
    Chassis ModelDFL1160B5
    CabStandard cabin with Left hand drive
    ColorOptional
    Allowable person in cab3
    Wheel base (mm)5,000
    Front/Rear track base (mm)1880/1860
    Front/Rear overhang (mm)1430/2320
    Number of axles2
    AxleFront axle6000
    Rear axle10000
    Traction system4x2
    Operation control systemPower steering
    Braking systemFull air
    Electric system24V
    TransmissionMechanical gear box 5 speeds + one rear
    Spring plate8/10+8
    Tire specification10.00-20,10.00R20,9.00-20,9.00R20
    Tire quantity6+1
    Engine Description
    Engine manufactureDongfeng Cummins
    Engine modelISDe210 40
    Emission standardEuro 3
    Exhaust/output6700
    Horse power210
    Up-parts Description
    Asphalt tank Outline Dimension (mm)2730x1950x1300
    Asphalt tank Inner Dimension(mm)2630x1850x1200
    Insulating layer thickness (mm)50
    Asphalt tank Total Volume(L)8000-10000L
    Hydraulic pumpCBQ550-L
    Proportional valveTaiwan EFBG-03-160-HF
    Asphalt pumpQGB680
    Hydraulic motor for asphalt pump05-110-BD31
    Heating SystemItalian burner Riello
    Heat-transfer oil pump25-25-160
    Control SystemSIEMENS
    Generator5.5KW gasoline engine generator
    Number of nozzle30-39
    Spray mediumHot asphalt/ Hot modified asphalt/ Cutback asphalt/ Emulsified asphalt
    Spray width(m)4.5-6
    Spray amount(L/m2)0.2-2
    Working Condition:1,Altitude: 0-4500m
    2,Temperature: -350C~+450C
    3,Relative humidity: 80%
    4,Wind force: ≤8 degree

    Quality Dongfeng 4 x 2 Asphalt Tanker Trailer 8000 L -10000 L Tianjin Cab for sale
