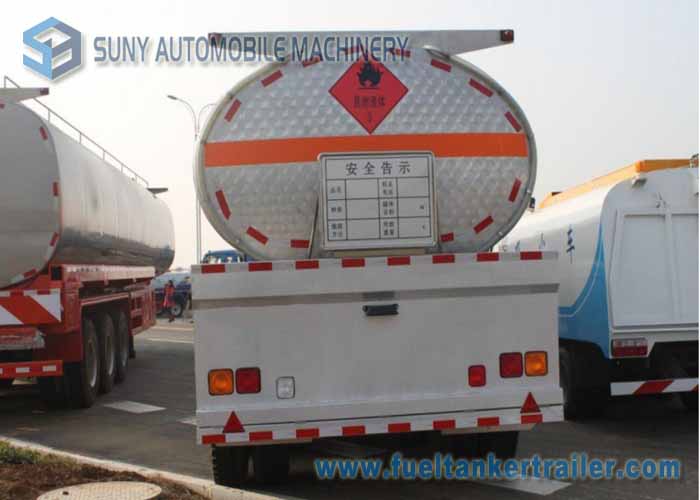

35000L Alcohol Tanker 3 Axles SUS304 Chemical Liquid Tank Trailer
Description & Applications:
We will recommend correct material fabricate storage tankers.
Chemical liquid transport vehicle widely used in loading and
unloading acid, alkali, salt and other corrosive, dangerous media.
Chemical liquid tank truck and chemical tanker semi trailer,
horizontal chemical liquid tank, chemical liquid tanker container.
In accordance with the media different,
1, Tank material can be chosen according to the need to use carbon
steel, carbon steel lined with polyurethane epoxy, anti-corrosion,
stainless steel, plastic, aluminum, etc.
2, Chemical pump: selection of domestic well-known enterprises of
high quality chemical liquid pump.
3, Liquid tank shape: ellipse shape, trapezoid shape, cylinder
shape.
4, inside is provided with a plurality of plastic breakwater
partition. Fully through the high-pressure air tightness test, the
tank strength is high, the center of gravity, vehicle safety and
smooth.
5, Function: independent or warehouse, packing, liquid food with
different chemicals.
Competitive Advantage:
SUNY automobile can be completely customized all different truck
and trailer according to customer needs; with advanced design
concept; the production process and the first class process, as
well as services; competitive prices.
Specifications:
35000 Liters Chemical Tank Trailer 3 axle Alcohol SUS304 Tanker
Semi Trailer
Note: this chemical liquid tanker semi trailer could load methanol,
ethanol.
Model : SY9335GHGJJ ( 35m3 alcohol chemical tanker semi trailer ) |
DIMENSIONS & WEIGHT |
Overall Dimensions ( L * W * H ) | 11000 * 2495 * 3700 mm |
Volume | 35 m3 = 35000 Liters |
MAX. GVW | 42700 kg |
Kerb weight | 7700 kg |
Pay load | 35000 kg |
Tanker |
Tank Material | SUS304 inner is polyurethane epoxy, anti-corrosion |
shape | Ellipse shape |
Thickness of shell | SUS304 5 mm |
Thickness of dish | SUS304 6 mm |
Working temperature | - 20 °C to + 70 °C |
Compartments | The tank is divided in 1 room. Opting more |
Manhole | 2 sets of DN500 mm / SS304, with breathe valve |
Unloading valve | 2 sets of DN80 fixed at bottom of tank |
Pipeline at bottom of tank | 4” seamless steel tube SUS304 |
Labeling system | Oil type indication |
Anti-static electricity | Pulling, wire carrier, sheet copper (6 sheet standard layout) |
Running Gear |
Axle | FUWA 3-pcs * 13 T axles, double wheel. |
Tire & Rim | 12-pcs * 11.00R22.5 tyres (opting different brand tire)
12-pcs * 8.25R22.5 rim (opting steel rim or aluminum alloy rim ) |
Suspension | Mechanical suspension (opting air suspension) |
King pin | JOST C200 2.0" 50 # kingpin (50#) opting, 3.5” ( 90 # ) |
Landing legs | 1 pair . JOST |
Air tank | 2 set |
Spring brake chamber | 2-pcs T3030, 2-pc T30 |
Air connector | 1 set stander air connector |
Valve | 1 pc WABCO ABS |
Electrical system | Complete electrical system with 7 socked . 24 V.
One set of LED standard lambs; One set of standard cable. |
Painting | One primer +final painting
All steel parts are sand blasted before painting. Anti-corrosion.
Primeer, finished urethane paint.
All painting are according to customer’s requirement. |
Accessories |
Mudguards | PVC Mudguards |
Side protection | √ |
Spare tire carrier | √ |
Ladder | √ |
Guard on top of tank | √ |
Side guard | √ |
Rear bottom guard | √ |
Work tank deck | √ |
Fire extinguisher box | 2 unit at the back of each side |
Hand rail | √ |
Hose and Carrier | 1-pc. hose carrier on left and right each side |
Tool box | 1 set tool box |
