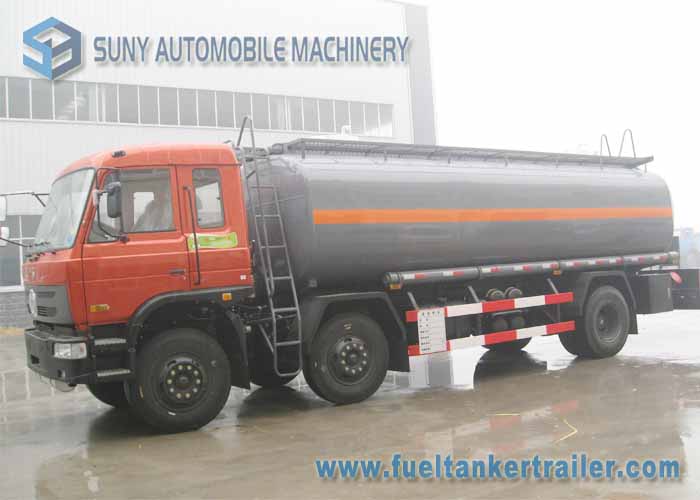

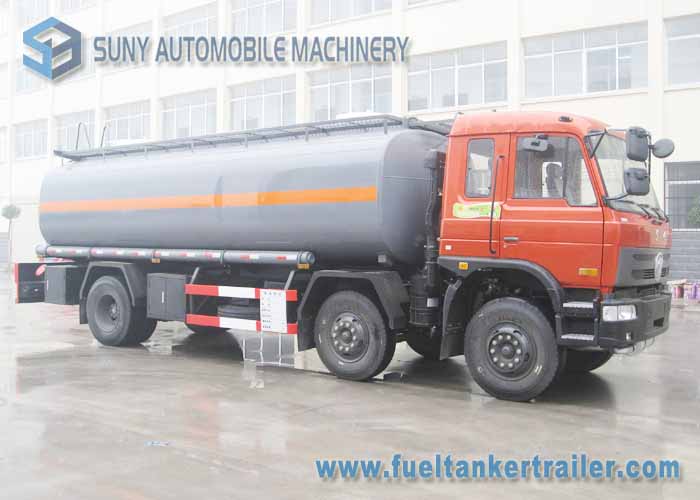

Dongfeng 6x2 Chemical Liquid Tanker Truck 25000 L Pentane Tank
Truck
Description:
1. Chemical tTank thickness: 2mm at least (according to the design
or your required)
2. Design work pressure (MPa): - 0.1 ~ 9.9 MPa (According to the
China national standard, breakthroughs in the foregoing
measurements are allowed in special cases)
3. chemical liquid tank material: Stainless steel, SUS304, 316L
etc. with insulating material or not.
4. General accessories (If required): Manhole, CIP, respirator,
sight glass, mixing (Top side or bottom)
The scientific long axis and short axis design for tank body meets
the hydrokinetics requirements and ensures the safety of vehicles.
And we can design the tank according your trailer (truck) size.
5. Design work temperature: - 70~ + 350 ℃
Competitive Advantage:
Our chemical liquid tank series with a complete set of service from
quota, design, manufacture and installation, according to your
requirements we can design by your plan, or manufacture by your
drawing, guarantees inner quality and safety, good looking
appearance and function by introducing international advanced
large-sized equipment of pulse plasma arc welder and auto polishing
machinery and cooperating with international famous finished
equipment making company. More detailed information will available
on your requirement.
Dongfeng 6x2 Chemical Liquid Tanker Truck 25000 L Pentane Tank
Truck
Model: SY5250GHG Vehicle Description |
| Vehicle type | Pentane tank truck |
| Drive form | 6*2 |
| Brand | Dong Feng |
| Overall dimension (mm) | 10800×2490×3500mm |
| G.V.W (kg) | 24900 |
| Curb weight (kg) | 10905 |
| Design Load capacity (kg) | 13800 |
| Chassis Description |
| Chassis model | EQ5253GFJ3 |
| Axle load (kg) | 6600/6800/11500 |
| F/R overhang (mm) | 1205/2345 |
| Approach/Departure angle (°) | 32/15 |
| Front tread (mm) | 1940/1940 |
| Rear tread (mm) | 1860 |
| Spring plate | 10/10/12+9 |
| Wheelbase (mm) | 1950+4550 |
| Tyre size & quantity | 10.00-20 nylon tire, 8+1 pcs |
| Cab | One and half row, optional AC |
| Gear box | 8 speed |
| Engine Description |
| Engine model | B190 33 |
| Displacement(ml) | 5900 |
| Max power(kw) | 140 |
| Horsepower(hp) | 190 |
| Emission standard | Euro 3 |
| Type of fuel | Diesel |
| ABS system | Optional |
| Tank Description |
| Tank outer dimension (mm) | 8100*2400*1650 mm (Final accordance with factory design) |
| Tank thickness (mm) | 6 |
| Topping of the tank | With guardrail, and anti rollover bar. |
| Valves | 1-pc DN100 stainless steel air bottom valve with pneumatic switch. Through bottom valve, left and right, each side with 1-pc DN80
plastic ball valve outlet. |
| Inner of the tanker | With Polyethylene plastic internal rotational antiseptic treatment
(Korea technology) |
| Outer painting | With gray color anti corrosive paint. |
