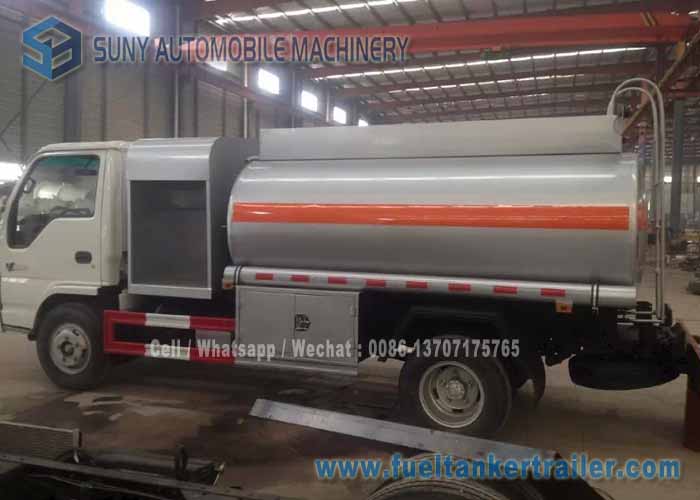

ISUZU 4x2 Fuel Tanker Truck Trailer Carbon Steel 4000 L Refuel
Tanker Truck
Description:
Our refuel oil tank truck or trailer are optional Q345, SUS304,
AA5083/5454 tank material.
We are main fuel tanker turck manufacturer, specialized in making
customized fuel tanker part, oil tank truck, chemical tanker truck,
tanker trailer, tanker container, refuel station container.
Divided by chassis brand:Changan fuel tank truck, Wuling fuel tank
truck, Dongfeng serials fuel tank truck, Jiefang serials fuel tank
truck, Auman serials fuel tank truck, Howo serials fuel tank truck,
Benz serials fuel tank truck, Sinotruck serials fuel tank truck,
ISUZU serials fuel tank truck, JAC serials fuel tank truck, CAMC
serials fuel tank truck, Shaanxi auto serials fuel tank truck,
Steyr serials fuel tank truck.
Competitive Advantage:
Fuel tank body can be divided into several compartments with wave
resistant board inside to reduce liquid shock and increase tank
body strength and stability.
Fuel pump self-suction, gear pump, chemical agent pump, numeral
control refueler, the funtion for loading and discharge through are
not throught gauge are available. Rear tank has 2-3 discharge vent.
Divided by gross weight: Mini fuel tank truck, light fuel tank
truck, middle sizes fuel tank truck, heavy duty fuel tank truck.
Divided by wheel:single axle fuel tank truck, double axles fuel
tank truck, 4X4 fuel tank truck, 8X4 fuel tank truck, fuel tank
semi-trailer.
ISUZU 4x2 Fuel Tanker Truck Trailer Carbon Steel 4000 L Refuel
Tanker Truck
| TRUCK SPECIFICATION |
| Product Model | SY5040GJYE ISUZU 4*2 refuel tank truck |
| Overall dimensions (L*W*H) | 5950*1880*2280 mm |
| G.V.W | Approx 9400 kg |
| Net weight | Approx 4225 kg |
| load | Approx 8000 kg |
| Approach/Departure angle | 21/12 ° |
| F/R suspension | 1180/2020 mm |
| Axle load | 2480/4700 kg |
| Max speed | 95 km/h |
| Allowable passengers | 2+1 |
| Cab type | Flat top. one row and a half. Turning cab. Red metallic painting |
| Cab inner | with air condition and warm air |
| CHASSIS SPECIFICATION |
| Chassis model | QL1040 |
| No. of axle | 2 |
| Wheel base | 3360 mm |
| No. of tire & specification | 7.00-16.(optional 7.00R16) |
| No. of leaf spring pieces | 8/6+5 |
| F/R tread | 1504/1425 mm |
| Tractions | 4*2 |
| Braking system | Hydraulic braking. |
| Operation control system | Power steering |
| Electric system | 24 V |
| ENGINE SPECIFICATION |
| Engine model (emission standard) | 4KH1-TCG40 (EURO 4, ISUZU engine) |
| Manufacturer | QINGLIN ISUZU Engine |
| Fuel type | Diesel |
| No. of cylinder | 6 |
| Cylinder arrangement form | In-line engine |
| House power | 120 hp / 88 kw |
| Exhaust | 2771 ml |
| Max torque | 640 N.m |
| Max torque speed | 1500 r/min |
| Rated power speed | 2500 RPM |
| Engine type | In line 6-cylinder with electric preheating devices and high power
6.6 kw starter, a radical improvement in the engine cold start. |
| Intake Forms | Turbocharged |
| TRANSMISSION |
| Transmission model | ISUZU MSB | Transmission type | Manual |
| No. of reverse gear | 1 | No. of forward gears stalls | 5 |
| FUEL TANK TRUCK EQUIPMENTS AND FUNCTIONS |
| Tank capacity | 4000 L ( 4 m³) |
| Tank dimensions (L*W*H) | 3400*1680*1130 mm |
| Tank material | Q235A (optional: stainless steel / aluminum / plastic lining /
rotational modeling) |
| Tank shape | Square round / Cylinder / Ellipse |
| Manhole | DN500 (optional few manhole, by the branch warehouse, EURO
standard) |
| Pump | Equipped with the specific pump to suck and discharge the oil
automatically. |
| Refuel tank truck equipments | Computer control injector / Fuel hose / Fuel gun / Flow meter. Tank can be separated to several unattached small tanks to fill
different oil. This fuel truck is one sample, If it can not you’re your
requirement, Please contact S-K-Y-P-E Zengertruck |
