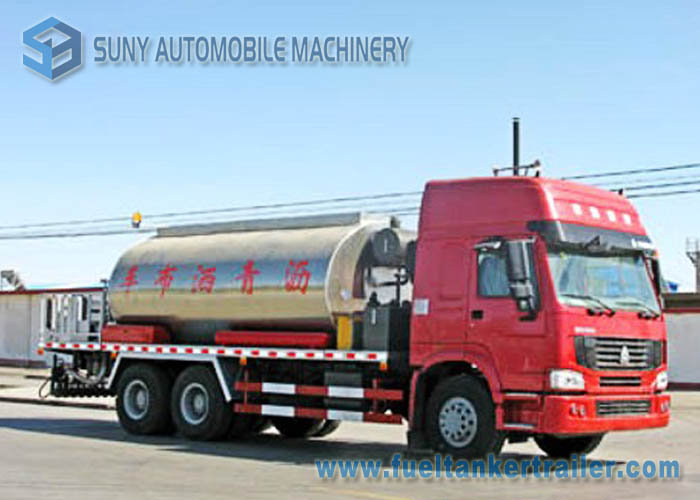

    Sinotruck Howo series 6X4 Asphalt Tanker Trailer 10000 L -11000 L 3 Axles 300Hp

    Ask Lasest Price
    Brand Name : SUNY
    Model Number : SY5111LQ
    Certification : CCC, ASME, BV, SGS, etc
    Price : USD60000 /set- USD100000/set
    Payment Terms : Western Union, T/T, L/C
    Supply Ability : 200 set per month
    Delivery Time : 15-25 working days
    • Product Details
    • Company Profile

    Sinotruck Howo series 6X4 Asphalt Tanker Trailer 10000 L -11000 L 3 Axles 300Hp

    Dongfeng 4 x 2 8000 L -10000 L Asphalt Distributor Truck Tianjin Cab


    Description & application:


    1-It is for asphalt distribution for the road construction program.

    2-The performance of the truck can achieve to top level of the world. It can work in worse condition.

    3-It is very easily to operate with reasonable desgin. And steady and reliable quality ensure the average distribution of the Asphalt.



    Competitive Advantage:


    1- strong R & D capabilities ---- we can design and produce the truck according to different fire equipment of different countries so that it can be fit for different customers’ demand.
    2- competitive price ----- based on same product, our price is most competitive

    3- strict quality control ---- stable quality for each truck
    4- best service ----- we cherish each customer and opportunity.

    Dongfeng 4 x 2 8000 L -10000 L Asphalt Distributor Truck Tianjin Cab

    TECHNICAL SPECIFICATION
    G.V.W(Kg)25000TANK CAPACITY(m3)10.5
    RATED LOAD(Kg)9000OVERALL DEMENSIONS(mm)10100×2500×3563,3420
    CURB WEIGHT(Kg)15870ALLOWABLE PASSERGERS IN CAB2
    APPROACH/DEPARTURE ANGLE(°)16/10FRONT/REAR OVERHANG(mm)1500/2650,1500/2625
    NO. OF AXLES3WHEEL BASE(mm)4600+1350,4575+1400
    AXLES CAPACITY(Kg)7000/18000MAX. SPEED(Km/h)90
    HYDRANLIC PUMPCBQ563-L
    PROPORTIONAL VALVEEFBG-03-160-HF(TAIWAN)ASPHALT PUMPQGB950
    BURNERRIELLOHEAT TRANSFTER OIL PUMP40-25-160
    GENERATOR5.5KW
    OTHERS

    1-Transport medium is liquid asphalt with density 900KGS/M3.

    2-Elliptical tank dimensions(length/major axis/minor axis)(mm)::4500/2100/1600

    3-Thickness of tank thermal insulation: 100mm

    4-The cab can be chosen by different chassis.

    5-Protective material: carbon steel Q235A.

    6-Connection way: welding connection.

    CHASSIS SPECIFICATION
    CHASSIS MODELZZ1257M4647CCHASSIS TYPEFor truck(class 2)
    BRANDHOWOMANUFACTURERSinotruk group jinan truck co., LTD
    DEMENSIONS(mm)9895×2496×2958,3563NO. OF TYRES10
    APPROACH/DEPARTURE ANGLE(°)16/18TYRE SPECIFICATIONS11.00-20,12.00-20 16PR11.00R20 16PR,12.00R20 14PR
    NO. OF SPRING PLATE10/12,4/12,10/-FRONT TRACK BASE(mm)2022,2041
    FUEL TYPEDieselREAR TRACK BASE(mm)1830/1830
    EMISSION STANDARDGB17691-2005 GB Ⅲ,GB3847-2005
    ENGINE TYPEENGINE MANUFACTURERDISPLACEMENT(ml)POWER(Kw)
    WD615.97ESinotruk group co., LTD9726221
