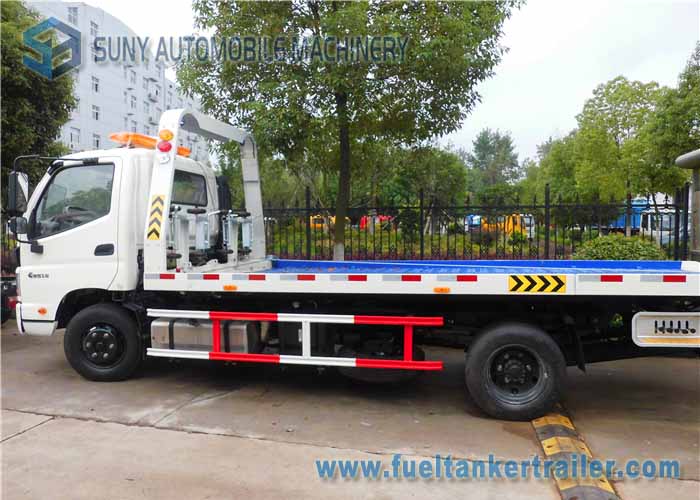

White Single Cab Foton Auman 5T Truck Blue Platform Car Carrier LHD
Product Description:
The wrecker truck technology and production has been great
development in recent years. First of all, a series of varieties
and specifications of more diversified structure; followed by the
exclusive use of the chassis, chassis second - class
diversification, to clear up obstacles in the path of the largest
car models 4 bridge; the third is the structure of diverse
functions, with lifts, lifting, towing, traction, back - dragging,
cleaning, maintenance, etc; and the fourth is the ability to work
even greater ability to drag up to give 25T, capacity 18T, lifting
capacity 40T; the five is more advanced mode of operation, superior
and comfortable working environment.
Packing and Shipping:
Flat bed wrecker tow trucks packing and shipping : Nude, covered
with wax , shipping in Container 20GP, 40GP, 40HQ ; in RO / RO
operation; in Bulk carrier. According to your request.
FAQ
1. Do you have right hand drive truck ?
A: Yes.
2. Do you have english instruction ?
A: Yes.
3. Can we test truck ?
A: Yes, we will let our workers show you.
4. How to go to your factory ?
A: Our factory is near Wuhan Tianhe Internation Airport, when you
arrive at the airport, we can pick you up, then we drive to our
factory together.
1. Product Parameter:
White Single Cab Foton Auman 5T Blue Platform Car Carrier LHD
| Main specifications |
| Product model name | SUNY5080TQZB4 Wrecker Truck |
| Gross weight ( Kg ) | 8280 |
| Payload ( Kg ) | / | Overall dimension ( mm ) | 7390 × 2350 × 2400 |
| Curb weight ( Kg ) | 5330 | Cab seats ( man ) | 3 |
| Approach / departure angle | 22 / 12 | Front / rear hang ( mm ) | 1120 / 2470 |
| Axle No . | 2 | Wheelbase ( mm ) | 3800 |
| Axle load ( Kg ) | 2845 / 5435 | Max speed ( Km / h ) | 90 |
| Chassis specifications |
| Chassis model | BJ1089VEJEA-F2 | Manufacture | Beijing Foton |
| Brand name | Foton | Overall dimension ( mm ) | 7390 × 2350 × 2400 |
| Tire specification | 8 . 25R16 14PR | Tires No . | 6 |
| Steel spring number | 9 / 11 + 7 | Front track ( mm ) | 1685 |
| Fuel type | Diesel | Rear track ( mm ) | 1615 |
| Emission standard | Euro 4 |
| Engine model | Engine manufacture | Displacement(ml) | Power(Kw) |
| ISF3 . 8s4154 | / | / | 115 |
| Performance |
| The Max Towing Weight | 25 - 48 | The Max Lifting altitude ( mm ) | 6500 - 12070 |
| The Max supporting Weight ( T ) | 10 . 12- 25 | The Max supporting weight when span out ( T ) | 7 . 31 - 12 . 5 |
| The Max Lifting Weight ( T ) | 18 - 40 | The Max lifting weight when span out ( T ) | 4 . 5 - 8 |
| The length of rope ( m ) | 40 |
2. Our Service:
- 12 months for 3 key parts ( engine, transmission, axle ) .
- Tracking service time: life long.
- Third - party service for overseas client.
If you have any requirements about special trucks, kindly let me
know, I will do my best fo provide the most suitable type and
competetive price for you.
Looking forward to receiving your inquiry!
More photos:
