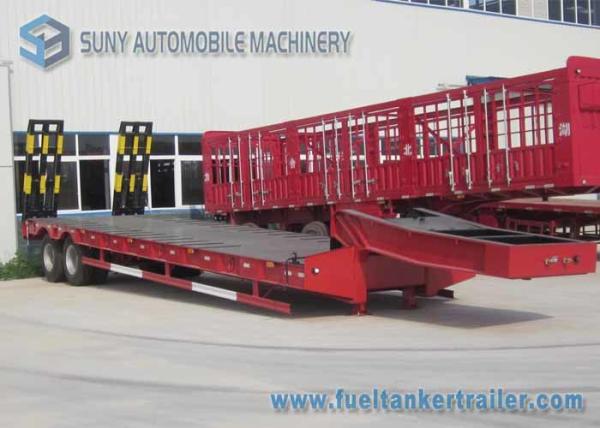

Hydraulic Legs red Flatbed Semi Trailer , 30 T 40 T dual axle trailer

    Buy cheap Hydraulic Legs red Flatbed Semi Trailer , 30 T 40 T dual axle trailer from wholesalers

    Buy cheap Hydraulic Legs red Flatbed Semi Trailer , 30 T 40 T dual axle trailer from wholesalers
    • Buy cheap Hydraulic Legs red Flatbed Semi Trailer , 30 T 40 T dual axle trailer from wholesalers
    • Buy cheap Hydraulic Legs red Flatbed Semi Trailer , 30 T 40 T dual axle trailer from wholesalers

    Hydraulic Legs red Flatbed Semi Trailer , 30 T 40 T dual axle trailer

    Ask Lasest Price
    Brand Name : SUNY
    Model Number : SY9104
    Certification : CCC, ASME, BV, SGS, etc
    Price : USD 19,000 Unit
    Supply Ability : 500 Unit / Month
    Delivery Time : 10 - 20 Working Days
    • Product Details
    • Company Profile

    Hydraulic Legs red Flatbed Semi Trailer , 30 T 40 T dual axle trailer


    Hydraulic Legs red Flatbed Semi Trailer , 30 T 40 T dual axle trailer


    Semi trailer is our company's main product . We configure Grid type semi trailer , low bed semi trailer , container semi trailer , flat bed semi trailer , LPG tank semi trailer , fuel tank semi trailer , water tanker semi trailer , fecal suction semi trailer , sewage suction semi trailer , compactor garbage semi trailer , van semi trailer, box semi trailer , water tank semi trailer , bitumen semi trailer , bulk cement semi trailer , dump semi trailer , chemical tank semi trailer and etc . We produce tank semi trailer with plastic lining , aluminum tank , aluminum alloy tank , rotational molding , carbon steel , stainless steel , production according to the customer's requirement .


    Products Technical Specification
    Capacity40T
    Dimension (L*W*H/mm)13000*2500*2980mm
    Chassis (Main Beam)

    Heavy duty and extra durability designed,

    Opting for high tensile steel Q345. 500mm height;

    Top flange 16*140mm;

    Middle flange 10mm; Bottom flange 20*140mm,

    Side beam30﹟A, Floor Steel 3mm.

    900mm from the floor to the loading plate.

    Tyre outside the plate

    King pin2" standard welded style

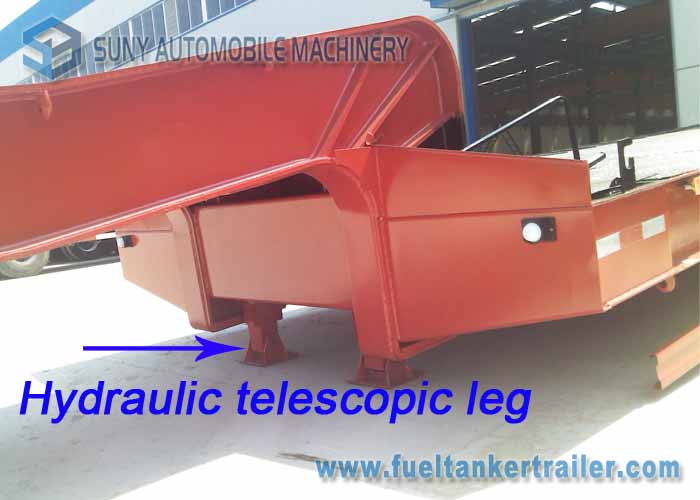

    Landing gearChina Brand Hydraulic Legs
    AxleTwo Units of FUWA(brand) 13T 10 Hole Axle
    SuspensionLeaf spring 90*16mm 7pcs
    Tyre ( Wheel Rim)9 units of 10.00R20 Steel Tyre, include One spare tyre.
    Brake9 units of 7.5-20 Wheel rim.
    Electric

    One unis of WABCO RE 6 relay valve;

    Two units of T30/30 Spring brake chamber;

    Two units of T30 Spring brake chamber. One units of reliable local brand 40L air tank.

    Painting

    Sand blasting processing clean rust 1 coat of anticorrosive primer,

    2 coats of finish urethane paint color at customer’s choose.

    OtherOne spare tyre holder; one box with a set of standard trailer tool. Distant from King pin to the front part: 450mm
    Packing

    Transfer to Shanghai port, and carry by ro-ro ship,

    the ocean freight depends on the voulumn.

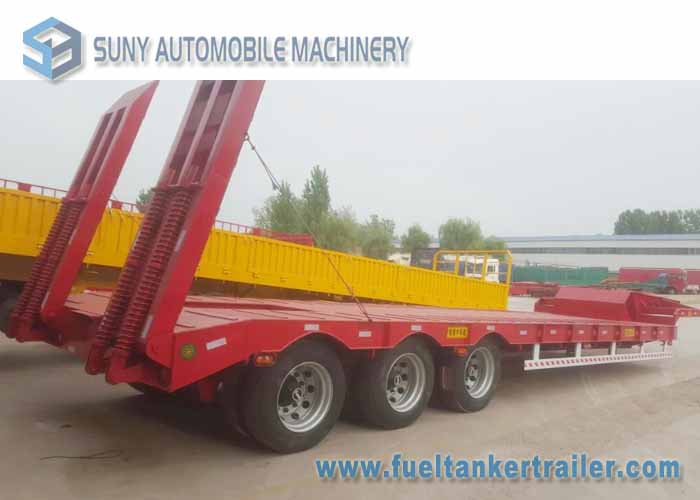

    Optional 3 Axles Lowbed Semi Trailer Equipped Hydraulic Legs
