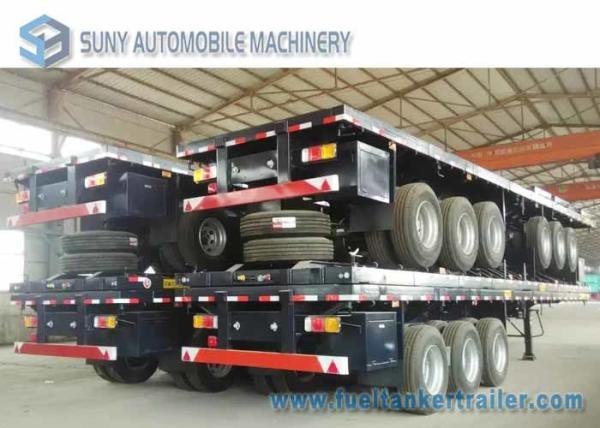

3 Axles 40 Feet Container Flatbed Semi Trailer , Load 50 Ton

Ask Lasest Price
Brand Name :	SUNY
Model Number :	SY9109
Certification :	CCC, ASME, BV, SGS, etc
Price :	USD 16,000 Unit
Supply Ability :	500 Unit / Month
Delivery Time :	10 - 20 Working Days

Add to Cart

Product Details
Company Profile

3 Axles 40 Feet Container Flatbed Semi Trailer , Load 50 Ton

Semi trailer is our company's main product . We configure Grid type semi trailer , low bed semi trailer , container semi trailer , flat bed semi trailer , LPG tank semi trailer , fuel tank semi trailer , water tanker semi trailer , fecal suction semi trailer , sewage suction semi trailer , compactor garbage semi trailer , van semi trailer, box semi trailer , water tank semi trailer , bitumen semi trailer , bulk cement semi trailer , dump semi trailer , chemical tank semi trailer and etc . We produce tank semi trailer with plastic lining , aluminum tank , aluminum alloy tank , rotational molding , carbon steel , stainless steel , production according to the customer's requirement .

*Products Technical Specification*
*Product Name*	*3 axles Flat bed semi trailer*
*DIMENSIONS & WEIGHT*
Overall dimensions (L×W×H) (mm)	12500×2490×1560
Wheel base (mm)	6850+1310+1310
G.V.W (kg)	50,000
Curb weight (kg)	7,100
*CHASSIS*
Maia beams	Heavy duty and extra durability designed, Opting for high tensile stell Q345. 500mm height;Upper plate is 14mm, lower plate is 16mm,middle is 8 mm, 3mm diamond steel plate
Axles	3 axles
Axles	FUWA 13T
Landing gear	FUWA 28"heavy duty landing gear
King pin	2.0’’or3.5’’ traction pin JOST brand(bolts type)
Suspension	Mechanical suspension FUWA Brand
Emergency Brake	WABCO
Brake Chamber	Four double and two single chamber( TKL brand )
Wheel rim	9.0-22.5
Tire	12R22.5 Triangle brand
Electrical	Voltage24V,Receptacle7 ways(7 wire harness)
Miscellaneous	Painting,Marking,Side Guard,According to the requirement of the buyer Tools box 1 pieces
	Front marker lamp,front corner marker lamp is red, Reflector lamp is white Side marker lamp,Orange. Rear lamp,Red Turn signal lamp,Orange
