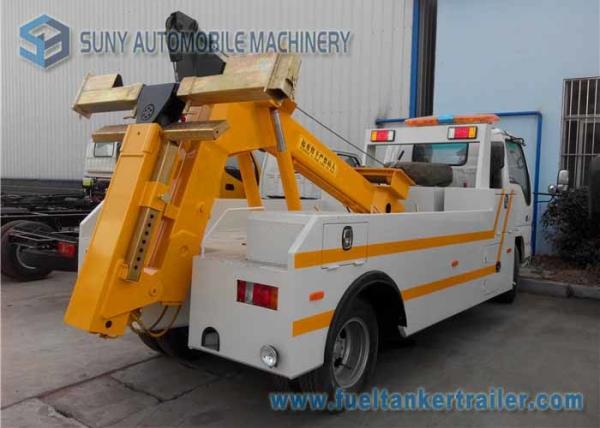

ISUZU wrecker tow truck heavy duty 7000 Kg Max Designed Towing
Weight
Specifications
road wrecker
ISUZU NKR77LLPACJAY
Rated towing weight: 5000kg
Rated lifting weight: 1500kg
Working Condition
Altitude: 0 - 4500m
Temperature: - 35 ° C - + 45 ° C
Relative humidity: 80 %
Wind force: ≤ 8 degree
Working Range
SUNY5050TQZ Road wrecker is used for safety salvage of vehicles subject to
city road, suburb way, highway, airport and bridge road. It is
suitable for medium and small - sized cargos, cars and other
special vehicles, which are allowed within the technical parameters
of this kind
Specifications:
ISUZU Wrecker 7000 Kg Max Designed Towing Weight 5 Ton Rated Towing
Weight
Items |
Unit |
Value |
| Boom Structure | Rated towing weight | kg | 5000 |
| Rated lifting weight | kg | 1500 |
| Max. Lifting weight of full extension boom | kg | 800 |
| Max. Designed towing weight | kg | 7000 |
| Effective length of boom | mm | 1260 |
| Extension traveling of boom | mm | 330 |
| Folding angle of boom | ° | 95 |
| Under lift Structure | Rated hanging weight | kg | 1500 |
| The height from hook to the ground | mm | 2070 |
| Numbers of winch | piece | 1 |
| Rated pulling power of winch | kg | 4000 |
| Diameter of steel cable | mm | 10 |
| Length of steel cable | m | 25 |
| Min. Speed of steel cable | m/min | 4.5 |
| Rotation angle | ° | 14 |
Vehicle Parameters | External dimension | mm | 5500×1910×2470 |
| Chassis model | | NKR77LLPACJAY |
| Drive | | 4×2 |
| Axle base | mm | 3360 |
| The whole weight of empty load | kg | 3370 |
| Load of front axle of empty load | kg | 1620 |
| Load of rear axle of empty load | kg | 1750 |
| The whole weight of full load | kg | 5000 |
| Load of front axle of full load | kg | 1720 |
| Load of rear axle of full load | kg | 3280 |
| Wheel base (front/rear axle) | mm | 1504/1425 |
| Front suspension | mm | 1015 |
| Rear suspension | mm | 790 |
| Approach angle | º | 24 |
| Departure angle | º | 15 |
| Max. Grade ability | % | ≥30 |
| Min. Ground clearance | mm | 190 |
| Min. Turning diameter | m | ≤15.2 |
| Max. Speed | km/h | 100 |
| Engine model | - | 4KH1-TC |
| Engine emission | ml | 2999 |
| Rated power | kw/r/min | 96/3400 |
| Torque | n·m/r/min | 280/1700 |
| Standard of emission | | CN III |
| Tire size | | 7.00-16 (option7.50-15,7.50R15,7.00R16) |
| Persons | | 2 |
Standard Equipments
ISUZU NKR77LLPACJAY
Main boom structure assembly
Vice boom assembly
Hanging hook assembly
Control structure assembly
Winch assembly ( include winch clutch, impaction device )
Steel body assembly
Tool box assembly
Light stands assembly
Alarm device
Hydraulic system
Hydraulic system over voltage protection device
Electric system
PTO Warner
Combination lamps
Steel wire rope ( including hook ) ( 25 m / pcs )
Standard spare tire
L wheel lift
Bind belt
Vulnerable parts attachment

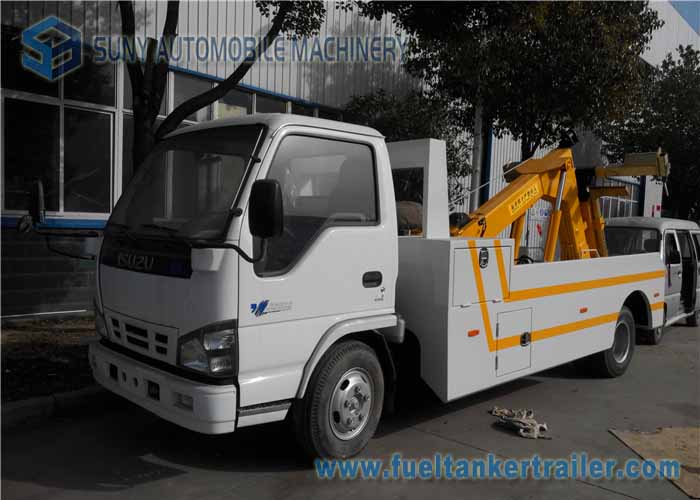

More pictures:
