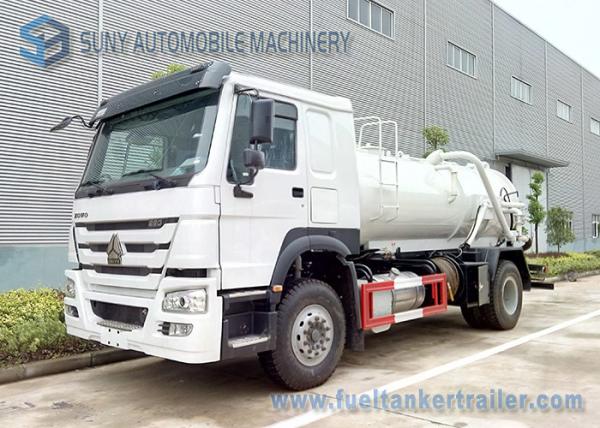

    SINOTRUK HOWO Sewage Suction Tanker 4X2 Truck 12000L Vacuum Tank

    Ask Lasest Price
    Brand Name : SUNY
    Model Number : SY5160GXW
    Certification : CCC, ASME, BV, SGS, etc
    Price : USD40000-50000 / Set
    Supply Ability : 200 sets per month
    Delivery Time : 25 days after receiving deposits
    • Product Details
    • Company Profile

    SINOTRUK HOWO Sewage Suction Tanker 4X2 Truck 12000L Vacuum Tank

    SINOTRUK HOWO Sewage Suction Tanker 4X2 Truck 12000L Vacuum Tank


    Description:

    Sewage Suction Tanker Truck is mainly used for suction, transportation and discharge of sewage from septic tank and sludge from drains. Widely used by municipal environment and sanitation department and residential management.


    Applications:

    1. Product application.

    2. City planning.

    3. Septic tank.

    4. Residential areas.

    5. Agriculture.

    6. Chemical industry.

    7. Medium and small cities.


    Competitive Advantage:

    1. Time for full suction less than 5min.

    2. The fecal suction pipe can rotate 360 degree.

    3. Equipped with hand washing device.

    4. Automatic alarm and close the cover when suction full.

    (Overfill system with music horn is equipped to prevent the vacuum pump damage from fecal into

    vacuum pump when the tank is full)

    5. Optional high-pressure cleaning function of fecal truck.

    6. RHD or LHD

    7. Strong Power engine


    Specifications:

    Suction System Specification
    Tank
    Tank Capacity ( L )12000
    Tank MaterialQ235A carbon steel ( Stainless steel is optional )
    Tank ShapeElliptical shape
    Tank Size ( length * macro axis*mini axis )( mm )5000*1800*1400
    Vacuum pump
    ModelChina famous WEILONG ( Optional )
    Max Vertical Suction ( m )≥ 8
    Absolute Working Pressure ( pa )8500
    Rated Speed500
    Rated Pumping Speed ( L/ s )98
    Pump inlet diameter ( mm )50
    Container Filling Time ( s )≤ 5
    Container Emptying time ( s )≤ 5
    Chassis Specification
    ModelZZ1167
    Engine
    ModelWD96.47
    Typesix-cylinder, water-cooled, mechanical injection
    Rated power ( Hp )266
    Transmission
    ModelSINOTRUK
    Type9 Forward & 1 Reverse Speed
    Travelling
    Drive Model4 x 2
    Steering Wheel PositionLeft hand drive,RHD
    Max. Travelling speed95km/h
    Dimension
    Overall Size ( mm )9000 x 2500 x 3200
    Tire Size9.00-20
    Wheel Base ( mm )4700
    Weight
    Curb Weight ( kg )9000
    Payload Capacity ( kg )12000
    Super Tank: Head and the tank made by a molding, thickening, anti-high-pressure.
    Sub frame: Full sub-frame with flexible mounting fixed to the truck chassis by horse bolts. Sub-frame and chassis medium with wooden plates.
    Vacuum System: Liquid ring vacuum pump, is driven from the PTO on the gearbox, provides high airflows along with high vacuum levels for removing debris above or below liquid surfaces.
    Tank Mounting: The truck will be equipped at our expense with a sub frame according to truck manufacturer’s prescriptions.
    Painting: All steel parts are sand blasted before painting. One anti-corrosion and zinc-rich primer and final painting at customer’s choice of colour.All steel parts are steel blasted before painting. Paint markers according to customer’s demand.
    Suitable for the transport of non-hazardous waste products and built according to the design rules for vacuum operated waste tankers.
