    6000KG / 6T 4 X 2 Dongfeng Crane Mounted Truck WITH Right Hand Drive

    Ask Lasest Price
    Brand Name : SUNY
    Model Number : EQ5121TZZKJ
    Certification : CCC, ASME, BV, SGS, etc
    Price : USD 35000-40000 / Set
    Supply Ability : 50 sets per month
    Delivery Time : 25 days after receiving deposits
    • Product Details
    • Company Profile

    6000KG / 6T 4 X 2 Dongfeng Crane Mounted Truck WITH Right Hand Drive

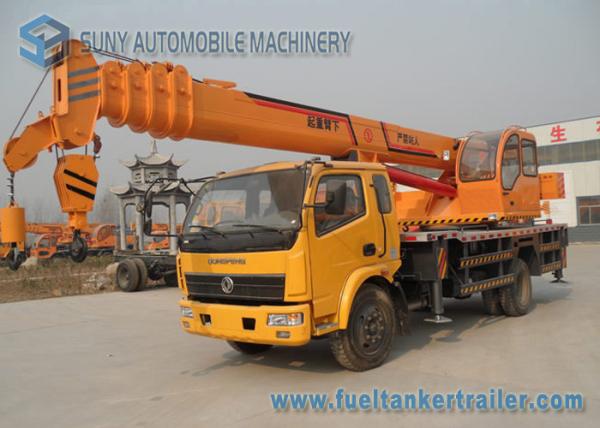

    Dongfeng 4 X 2 Crane Mounted Truck 6000KG 6 Ton Lifting Capacity Construction Truck Mounted Crane

    Product Description:


    We can product different kindly of truck with loading crane with different brand chassis according to customer’s demand. Generally speaking, this kind of truck insists of cargo truck chassis, cargo box, PTO(power-take-off) and crane.

    Crane brand optional: XCMG, UNIC, SANY, FEITAO, SHIMEI

    Crane style optional: telescopic boom and fold boom.

    Crane load capacity optional: 1ton 2ton 3.2ton 4ton 5ton 6.3ton 8ton 10ton 12ton 14ton 16ton 25ton 30ton 50ton.....


    1. Product Parameter:


    Products Technical Specification

    Type

    4 * 2 6T Truck Mounted Crane

    Brand

    Dongfeng

    Emission Standard

    Euro 3

    Cab

    Half row,with sleeper, With A/C

    Drive Form

    Right hand drive

    Vehicle Description

    Overall dimensions (mm)

    10110*2470*3350

    G.V.W (kg)

    12450

    Curb weight(vehicle) (kg)

    12255

    Whole vehicle main performance

    Max speed (Km/h)

    85

    Engine

    Engine model

    YC140-30

    Maximum power (kw)

    103kw / 140hp

    Displacement (lit)

    4260

    Emission standard

    Euro 3

    Chassis Description

    Chassis model

    EQ5121TZZKJ

    Wheel base (mm)

    3950

    Gear box

    5 forwards & 1 reverse

    F/R track base (mm)

    1910 / 1860

    F/R overhang(mm)

    1270 / 1950

    Approach/Departure angle (°)

    30 / 26

    Spring plate

    8 / 10 + 7

    Front / Rear axle (kg)

    4800 / 7800

    Type of fuel

    Diesel

    Brake system

    Air braking

    Operation control system

    Power Steering

    Electric system

    24V

    Tires & Quantity

    8.25-20 & 6+1

    Crane Description

    Model

    HFL5070JQZ

    Max Lifting Capacity (kg)

    6000

    Max Lifting Moment (KN / M)

    1.8

    Crane Weight (kg)

    7360

    Max. Operating Diameter (m)

    12

    Max. Lifting Height (m)

    24

    Max Pressure of Hydraulic System (MPa)

    16

    Oil Tank Capacity

    70

    Rotation Angle

    All Rotation 360°

    Boom Section

    5


    2. Packing and Shipping:

    Truck is nude packing, shipping in container, in bulk , in ro-ro.

    We will choose the best shipping type basis on truck volume, truck structure, Sail Schedule, clients’ requirement for clients!


    3. Company Information:


    Hubei Suny Automobile And Machinery Co., Ltd is a professional company who deal in different kinds of special vehicles, trailers and construction machinery.

    Our advantage:

    (1) We have own factory located in Suizhou---the special truck town of China.We can control every details----the development, the quality and the cost. As a result we can supply the quality goods with most competitve price.

    (2) We are familiar with the whole Chinese special truck market. And we are clear the different advantage and different quality level for each factory. So we can consolidate the resource for the customers and supply the most suitable goods for them.

    (3) There is a stronge professional team in our company including engineers and business executives. So we can provide the best solution and service for all customers.

    If you have any other questions or there is anything we can do for you, pls feel freely to let me know. We are glad to provide the best service.


    4. Our Service:


    Left-hand drive, if you need Right-hand drives, please inform us, we will make special order for you.

    We highly recommend this crane mounted truck. It's in an excellent condition and also with good quality and competitive price. Further information, pls feel free to cantact with me or visit our website, we will offer our best service.


    If you have any requirements about special trucks, kindly let me know, I will do my best fo provide the most suitable type and competetive price for you.


    Looking forward to receiving your inquiry!
