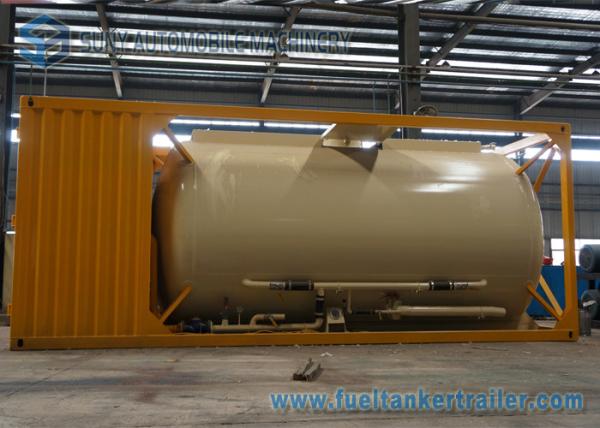

20 FT Dry Bulk Tank Horizontal Container 20 m3 Cement Tanker
Description & Applications:
The dry bulk cement tank transportation container, the main part of
ourter container frame, dry bulk storage tanker, pneumatic piping
system, unloading devices, etc. Large bulk cement transport semi
trailer is suitable for fly ash, cement, lime powder, mineral
powder, granular base, flour and other grain size is not more than
0.1mm powder dry bulk transportation.
1, technical indicators: work pressure under the condition of
0.2MPA, the discharging speed is 1.2~1.5T/MIN, the residual rate ≤
2 ‰. Under certain conditions, the discharge height ≥ 25M.
2, large bulk cement tanker features: can be independent of
warehouse storage, loading of different powder materials, unloading
speed, low residual rate, high safety performance, easy to operate.
Competitive Advantage:
We can be completely customized all different truck and trailer,
equipments according to customer needs; with advanced design
concept; the production process and the first class process, as
well as services; competitive prices.
Specifications:
20 FT Dry Bulk Tank Horizontal Container 20 m3 Cement Tanker
TIEM | SPECIFICATION | REMAR |
The design standard | SY20FT-20CFLG | GB/T16563-1996 ISO1496-3 |
Exterior | Box Type | 20FT |
Tank Shape | Cylinder shape | Horizontal |
Inner storage tanker wall | Single wall |
|
Maximum Capacity | 20 m3 * 1 = 20 m3 | Single bin |
Dimension | 6058*2438*2591 mm | L*W*H (international standard 20GP dry van container size) |
Curb Weight | Approx 4000 kg |
|
Payload | Approx 20000 kg | Water load at 20℃ |
Working Temperature | -19~70 ℃ |
|
Max working Pressure | 2 Bar |
|
Tank Materials | Q345 Carbon steel | Opting aluminum |
Thickness | 5 mm |
|
End Enclosure | 5 mm | Flanged flat head |
Compound Manhole | DN500 | Professional pressure manhole |
Protective Frame | 800*750*150 mm | 1 pc |
Air compressor | NORTH 12/2 | 1 set air compressor |
Power unit | Hufeng 4105 | 1 set diesel power unit |
Tank door | 1 pair (upright doors) | Optional aluminum rolling door |
C/W container lock handles | 2 deputy |
|
Ladder | W=400 mm |
|
Fire lights | 2 pcs |
|
