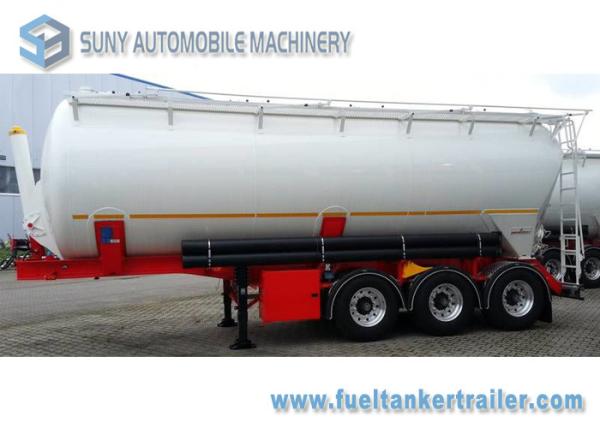

    Big 60m3 3 Axles Dry Bulk Tanker Trailer Aluminum Tanker 13160*2600*4000mm

    Ask Lasest Price
    Brand Name : SUNY
    Model Number : SY9360LGLF
    Certification : CCC, ASME, BV, SGS, etc
    Price : USD 77,000 ~ 115,000 FOB Shanghai
    Payment Terms : T/T, L/C, Western Union, Paypal, MoneyGram,
    Supply Ability : 1000 units/per year
    Delivery Time : 25~35 days after we get the deposit
    • Product Details
    • Company Profile

    Big 60m3 3 Axles Dry Bulk Tanker Trailer Aluminum Tanker 13160*2600*4000mm

    60 m3 Lifting Dry Bulk Tank Trailer Aluminum Tanker 3 Axles


    Description & Applications:


    1, Lifting powder dry bulk tank trailer. Using the front top lifting system, can achieve almost no residual discharge. So as to improve the transportation efficiency.


    2, The whole trailer uses the aluminum alloy material production, the weight is lighter. Can effectively increase the transport capacity of the dry bulk tank.


    3, According to the customer's use, it can be designed as ordinary powder transportation. Or the transport of a food grade medium. And in line with international standards.


    4, The configuration and style of the vehicle can be adjusted according to the requirements of the customer. And professional technical personnel in the production of drawings to ensure that the final product is fully in line with customer needs.


    Competitive Advantage:

    We can be completely customized all different truck and trailer according to customer needs; with advanced design concept; the production process and the first class process, as well as services; competitive prices.


    Specifications:


    60 m3 lifting dry bulk tank semi traile


    Model : SY9360LGLF (60 m3 lifting dry bulk tank semi trailer)

    TRAILER DETAILS

    Overall dimensions (L*W*H)

    13160*2600*4000mm

    GVW

    Approx 34000 kg

    Mass in working order

    Approx 6900 kg

    Load capacity

    Approx 27100 kg / 27.1 tons

    Axle specification

    13T*3-pcs (FUWA axle) optional: FUWA 15T / FUWA 16T / BPW

    Suspension

    FUWA air suspension

    Tire & Rim

    11.00R22.5*12 pcs (different brand opting)

    12-pcs * 9.0-22.5 rim (opting steel rime or aluminum rim)

    King pin

    50 # China brand kingpin, optional 90# / JOST.

    Braking system

    Optional: China brand 4S/2M ABS / WABCO ABS

    Landing legs

    Front 1 pair . JOST A400 linkage leg.

    Rear 1 par, JOST A400 linkage leg.

    Side gurards

    LTA standard

    BULK CEMENT TANK SPECIFICATION

    Tank dimensions

    2550*11740 mm (DN * overall lenght)

    Tank shape

    Cylinder shape

    Load capacity

    60000 L = 60 m³ ( medium: 600 kg/m³) customized other capacity models

    Material

    6 mm aluminum alloy 5083

    manhole

    Opting several

    Discharging hose DN*length

    4 inch * 6000 mm

    Discharging method

    HYVA hydraulic tipping tanker to 55 degree to discharge.

    Working pressure

    0.2 MPa

    Max horizontal discharging distance

    5000 mm

    Max vertical discharging distance

    25000 mm

    Compression ratio

    1 m³ =12000kg~13000kg cement

    Air compressor & Power unit (optional)

    NORTH 12/2 air compressor; Hufeng 4105 diesel power unit

    ACCESSORIES

    Mudguards

    PVC Mudguards

    Side protection

    Nil.

    Fire extinguishers carriers

    2pcs

    Spare tire carrier

    1pcs

    Tool box

    1 tool box with our factory’s standard free tools
