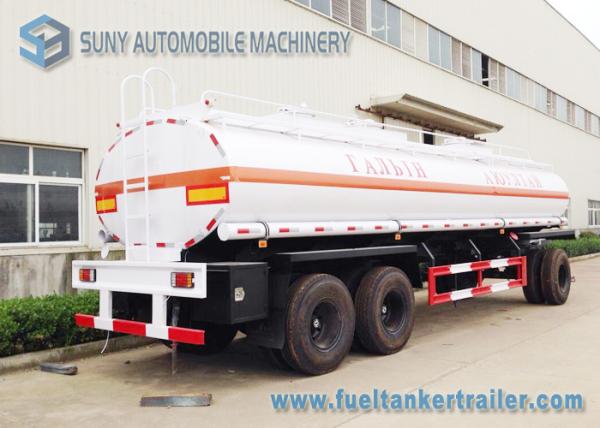

Model : SY9320FGYY ( oil tank 20000 L fuel tanker trailer 3 axle
fuel trailer ) |
DIMENSIONS & WEIGHT |
Overall Dimensions (L*W*H) | 6800*2500*3350 mm (reference dimensions) |
Volume | 18000 Liters = 18 m3 |
MAX. GVW | Approx 26800 kg |
Kerb weight | Approx ≤ 6800 kg |
Rated payload | Approx 20000 kg |
TANKER |
Main tank shell ( material / thickness ) | Mild steel Q345 ( 4 mm ), opting aluminum |
Head,Bulkhead,Wash plate
( material / thickness ) | Mild steel Q345 ( 5 mm ), opting aluminum |
Tanker bottom beam ( material / thickness ) | Full loading straight type, opting aluminum |
Top coaming ( material / thickness ) | Mild steel, opting aluminum |
Overturn protection ( material / thickness ) | Mild steel, opting aluminum |
Tank shape | Ellipse shape |
Compartments | 1 compartments, opting more compartments. |
TANK TOP ACCESSORIES |
Aluminum Ladder with pneumatic control aluminum handrail in rear up
to the tank top walkway.
With AL Anti-slip Walkway on the top. |
TANK EQUIPMENT |
Manhole | Opting different brand |
Foot valve | Opting different brand |
API standard quick connector - drain valve | Opting different brand |
API adjustable joints | Opting different brand |
API connector dust cover | Opting different brand |
Vapor recovery system | Opting different brand |
Pneumatic control system | Opting different brand |
Discharge method | Gravity discharge |
RUNNING GEAR |
Axle | FUWA 3 * 13 T axles, double wheel,
opting BPW axle and single wheel type. |
Suspension | Mechanical, opting pneumatic. |
Tire and Rim | 12+1 tires 11.00R22.5
12+1 pcs steel rims, opting aluminum rims |
King pin | Dog trailer hanging pin |
Rear Bumper | 1 set lta approval rear heavy duty under-run bumper |
BRAKING SYSTEM |
Double line air brakes Mechanical parking brake with WABCO
emergency relay valve. Air braking.
WABCO ABS SYSTEM 4S/2M |
ELECTRIC INSTALLATION |
Complete 24V system in explosion proof installation. 7 pin socket
for tractor connection. With Junction box
LED lights. Rear lighting with rear, stop, parking, direction, fog,
reverse lights, side lights
With the reverse buzzer |
PAINTING |
Factory standard painting system. Color and logo optional. |
ACCESSORIES |
Mudguards | PVC Mudguards for each tire. |
Drain hose | √ |
Earthing strip | √ |
Fire extinguishers carriers | √ |
Spare tire carrier | √ |
Tool box | √ fuel tanker semi trailer |
