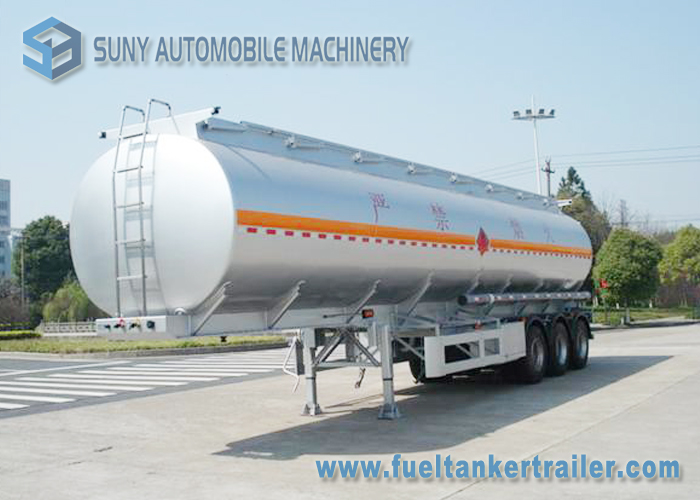

Model : SY9342SGYY ( tri-axle stainless steel fuel tanker trailer
40000 liter ) |
DIMENSIONS & WEIGHT |
Overall Dimensions ( L* W * H ) | 12000*2500*3650 mm ( dimensions for reference ) |
Volume | 40000 Liters = 40 m3 |
MAX . GVW | Approx 49200 kg |
Kerb weight | Approx ≤ 9200 kg |
Rated payload | Approx 40000 kg |
TANKER |
Main tank shell ( material / thickness ) | Stainless steel 304 / 316 ( 4 mm ) |
Head,Wash plate
( material / thickness ) | Stainless steel 304 / 316 ( 5 mm ) |
Tanker bottom beam
( material / thickness ) | Full loading straight type |
Top coaming ( material / thickness ) | Stainless steel |
Overturn protection
( material / thickness ) | Stainless steel |
Tank shape | Ellipse shape |
Compartments | 1 compartment, opting more compartments |
TANK TOP ACCESSORIES |
Aluminum Ladder with pneumatic control aluminum handrail in rear up
to the tank top walkway.
With AL Anti-slip Walkway on the top. |
TANK EQUIPMENT |
Manhole | Opting different brand |
Foot valve | Opting different brand |
API standard quick connector - drain valve | Opting different brand |
API adjustable joints | Opting different brand |
API connector dust cover | Opting different brand |
Vapor recovery system | Opting different brand |
Pneumatic control system | Opting different brand |
Air filter with pressure gauge | 1 set. |
Far end release valve | Opting different brand |
Piping | Stainless steel |
Discharge method | Gravity discharge |
RUNNING GEAR |
Axle | FUWA 3 * 13 T axles, double wheel.
Opting BPW axle and single wheel type. |
Suspension | Air suspension, opting mechanical suspension. |
Tire and Rim | 12+1 tires 11.00R22.5
12+1 pcs steel rims, opting aluminum rims |
King pin | JOST 2” kingpin ( 50 # ) |
Landing legs | JOST A400 |
Side guard | 1 set LTA approval side guards |
Rear Bumper | 1 set LTA approval rear heavy duty under-run bumper |
BRAKING SYSTEM |
Double line air brakes Mechanical parking brake with WABCO
emergency relay valve. Air braking.
WABCO ABS SYSTEM 4S/2M |
ELECTRIC INSTALLATION |
Complete 24V system in explosion proof installation. 7 pin socket
for tractor connection. With Junction box
LED lights. Rear lighting with rear, stop, parking, direction, fog,
reverse lights, side lights
With the reverse buzzer |
PAINTING |
Without painting, shiny finished. |
ACCESSORIES |
Mudguards | PVC Mudguards for each tire. |
Drain hose | √ |
Earthing strip | √ |
Fire extinguishers carriers | √ |
Spare tire carrier | √ |
Tool box | √ |
