    Customized Stainless Steel Tanker Trailers

    Ask Lasest Price
    Brand Name : SUNY
    Model Number : SY9342AGYY
    Certification : CCC, ASME, BV, SGS, etc
    Price : USD 58,000~ 85,000 FOB Shanghai
    Payment Terms : T/T, L/C, Western Union, Paypal, MoneyGram,
    Supply Ability : 1000 units/per year
    Delivery Time : 25~35 days after we get the deposit
    • Product Details
    • Company Profile

    Customized Stainless Steel Tanker Trailers

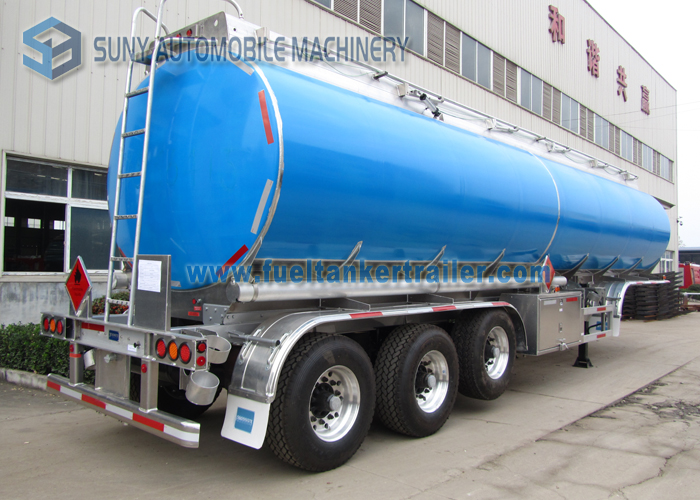

    40000 L Aluminum 5454 Oil Tank Trailer ADR 3 Axle Fuel Tanker Semi Trailer

    Description & Applications:

    The SUNY aluminum tank semi trailer, Tank and frame all adopt advanced aluminum alloy material.

    1, The specific gravity of aluminum is about 1/3, which has the characteristics of light weight and can effectively reduce the tare weight of the tank truck trailer.

    2, That can effectively reduce vehicle fuel costs. Using aluminum alloy instead of traditional steel as the body material, can reduce vehicle weight of 30% ~ 40%, the research shows that the vehicle fuel consumption of about 60% of the car's own weight, body weight per 100 kg, fuel consumption per kilometer will be reduced from 0.4 L to 0.8 L.

    3, aluminum tank and ordinary carbon steel tank. It also has anti-corrosive function, loaded with corrosive materials. This is another major feature of the aluminum alloy tank.

    4, aluminum tank, environmentally friendly vehicles. Aluminum tanker lightweight means reduce automobile fuel consumption and emissions, also means that it is environmentally friendly, because it contains a large amount of carbon dioxide emissions, to the environment is a big source of pollution, so the application of aluminum materials, environmental protection contributed.

    5, Aluminum tank semi trailer which could load gasoline, diesel, jet, chemical liquid, etc.

    Competitive Advantage:
    We can be completely customized all different truck and trailer according to customer needs; with advanced design concept; the production process and the first class process, as well as services; competitive prices.


    Specifications:
    40000 L Aluminum 5454 Oil Tank Trailer ADR Standard 3 Axle Fuel Tanker Semi Trailer

    Model : SY9342AGYY ( 40000 L aluminum tri-axle fuel tank trailer )

    DIMENSIONS & WEIGHT

    Overall Dimensions ( L* W * H )

    12500*2500*3650 mm ( dimensions for reference )

    Volume

    40000 Liters = 40 m3

    MAX . GVW

    Approx 46400 kg

    Kerb weight

    Approx ≤ 6400 kg

    Rated payload

    Approx 40000 kg

    TANKER

    Main tank shell ( material / thickness )

    Aluminum 5454 ( 6 mm )

    Head,Wash plate ( material / thickness )

    Aluminum 5454 ( 7 mm )

    Tanker bottom beam ( material / thickness )

    Full loading straight type

    Top coaming ( material / thickness )

    Aluminum

    Overturn protection ( material / thickness )

    Aluminum

    Tank shape

    Ellipse shape

    Compartments

    1 compartments, opting more compartments.

    TANK TOP ACCESSORIES

    Aluminum Ladder with pneumatic control aluminum handrail in rear up to the tank top walkway.
    With AL Anti-slip Walkway on the top.

    TANK EQUIPMENT

    Manhole

    Opting different brand

    Foot valve

    Opting different brand

    API standard quick connector - drain valve

    Opting different brand

    API adjustable joints

    Opting different brand

    API connector dust cover

    Opting different brand

    Vapor recovery system

    Opting different brand

    Pneumatic control system

    Opting different brand

    Air filter with pressure gauge

    1 set.

    Far end release valve

    Opting different brand

    Piping

    Alcoa Aluminum 5083

    Discharge method

    Gravity discharge

    RUNNING GEAR

    Axle

    BPW 3 * 12 T axles, single wheel.

    Suspension

    Air suspension .

    Tire and Rim

    6+1 tires 385/65R22.5
    6+1 pcs aluminum rims

    King pin

    JOST 2” kingpin ( 50 # )

    Landing legs

    JOST A400

    Side guard

    1 set LTA approval side guards

    Rear Bumper

    1 set LTA approval rear heavy duty under-run bumper

    BRAKING SYSTEM

    Double line air brakes Mechanical parking brake with WABCO emergency relay valve. Air braking.
    WABCO ABS SYSTEM 4S/2M

    ELECTRIC INSTALLATION

    Complete 24V system in explosion proof installation. 7 pin socket for tractor connection. With Junction box
    LED lights. Rear lighting with rear, stop, parking, direction, fog, reverse lights, side lights
    With the reverse buzzer

    PAINTING

    Without painting, shiny finished.

    ACCESSORIES

    Mudguards

    PVC Mudguards for each tire.

    Drain hose

    Earthing strip

    Fire extinguishers carriers

    Spare tire carrier

    Tool box
