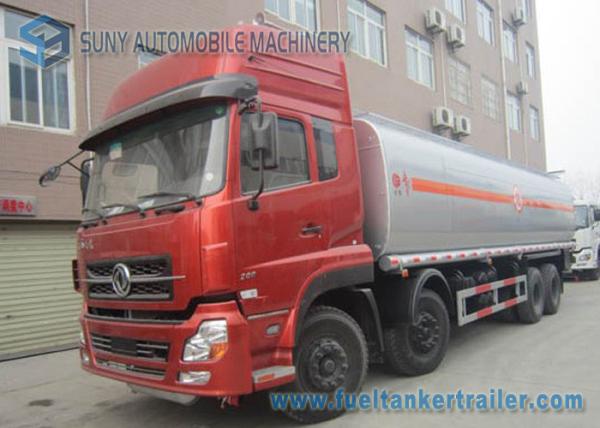

8*4 270hp Fuel Tank Truck Carbon Steel 40 m3 Oil Tank Truck
Description:
The tank can be designed as a single compartment or several
compartments.
Tank material: carbon steel, stainless steel, aluminum alloy
material tank for choose.
You can choose to install heating pipes, insulation layer. The
Insulation material is generally 50-100 mm
Thickness, insulation can be used rock wool, glass wool,
polyurethane foam, aluminum silicate. The cladding
At the end or side of tank, it can be installed 1-3 self-flow
valve.
According to users’ needs, the tank can be designed as a single
compartment or several compartments to contain different oils.
Applications:
This Fuel tank truck is applied to transport: OIL, DIESEL, FUEL,
WATER AND ALL KINDS OF LIQUEFIED CHEMICALS in a short or long
distance. It’s an ideal equipment to transport oil from oil storage
field to oil plant, and transfer oil from refinery and wharf to oil
storage field. It is also been used in refueling service station.
The shape of the tank is elliptical or rectangular and the material
is high quality steel plate. Whole tank was divided into two
compartments or more compartments with several inner baffles to
reinforce the tank strength and prevent longitudinal surge during
move.
8*4 270hp 40 m³ Carbon Steel Fuel Tank Truck
Model : SLS5310GJYD4 (30 m3 fuel tank truck) |
DIMENSIONS & WEIGHT |
Overall Dimensions (LxWxH) | 11900*2500*3690 mm (opting air compressor and power unit) Upper dimension just for reference. |
Volume | 40 m3 |
MAX. GVW | Approx. 42000kg |
Curb weight | Approx. 11605 kg |
Possible payload base on volume | Approx. 30000 kg |
TANKER |
Tank Material | Mild steel Q345 (Opting aluminum) |
Thickness | 4 mm |
Tank size (mm) | 9000*2480*1700s |
Compartments | The tank is divided in 1 room |
Chassis |
Chassis model | DFL1311A10 |
Wheelbase (mm) | 1850+4350+1350 |
F/R overhang (mm) | 1460/2890 |
Approach/Departure angle (°) | 20/12 |
Front/Rear tread (mm) | 2040/1860 |
Spring plate | 9/9/10,8/8/10 |
Tire size & quantity | 11.00R20,295/80R22.5 & 12+1 |
Seating capacity | 3, 2 |
PNEUMATIC BRAKING SYSTEM |
Air tank | 1 set |
Spring break chamber | 2-pcs T3030, 2-pc T30 |
Air connector | 1 set stander air connector |
Valve | 1 pc WABCO ABS |
Engine |
Engine model | ISDe270 40 |
Displacement (ml) | 6700 |
Horsepower (hp) | 270 |
Power (kw) | 198 |
Type of fuel | Diesel |
Max speed (km/h) | 90. Optional speed limiting device, speed limit 80km/h |
PAINTING |
One primer +final painting All steel parts are sand blasted before painting. Anti-corrosion. All painting are according to customer’s requirement. |
ACCESSORIES |
Mudguards | PVC Mudguards |
Side protection | √ |
Spare tire carrier | √ 1-set |
Ladder | √ 1-set |
Hand rail | √ 1-set |
Oil pump | Optional |
Tool box | 1 set tool box with factory's standard free tools |
Other description | Equipment opting China standard or EURO standard. |
