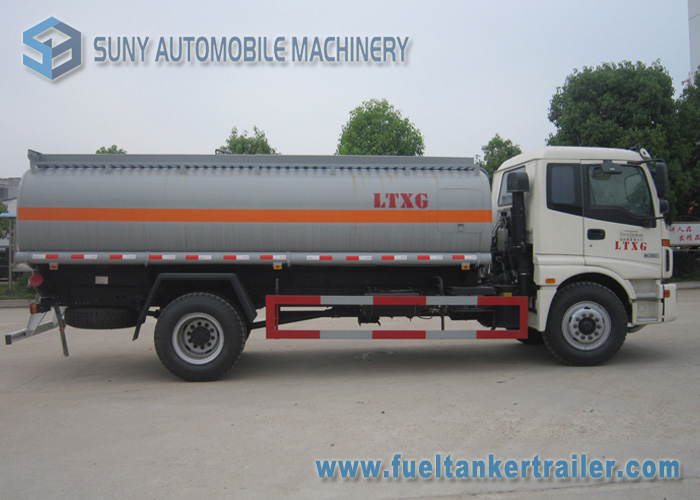

    Foton Auman 14m3 210HP Oil Tank Truck 4x2 Trucks BJ5163GYY-AB Chassis

    Ask Lasest Price
    Brand Name : SUNY
    Model Number : SLA5163GYYBJ8
    Certification : CCC, ASME, BV, SGS, etc
    Price : USD 25,800~ 50,000 FOB Shanghai
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 1000 units/per year
    Delivery Time : 25~35 days after we get the deposit
    • Product Details
    • Company Profile

    Foton Auman 14m3 210HP Oil Tank Truck 4x2 Trucks BJ5163GYY-AB Chassis

    Foton Auman 4x2 Tanker Truck 14 m3 Oil Tank Truck 210 HP Fuel Tank Truck


    Description & Applications:


    1. The tank can be designed as a single compartment or several compartments.

    2. Tank material: carbon steel, stainless steel, aluminum alloy material tank for choose.

    3. You can choose to install heating pipes, insulation layer. The Insulation material is generally 50-100 mm

    Thickness, insulation can be used rock wool, glass wool, polyurethane foam, aluminum silicate. The cladding

    4. At the end or side of tank, it can be installed 1-3 self-flow valve.

    5. According to users’ needs, the tank can be designed as a single compartment or several compartments to contain different oils.


    Foton Auman 4x2 Tanker Truck 14 m3 Oil Tank Truck 210 HP Fuel Tank Truck



    Vehicle Description

    Vehicle model

    SLA5163GYYBJ8

    Vehicle type

    Oil tank truck

    Drive form

    4*2

    Overall dimension (mm)

    8450*2460*3100

    G.V.W (kg)

    16000

    Load capacity (kg)

    9065

    Curb weight (kg)

    6805


    Chassis Description

    Chassis model

    BJ5163GYY-AB

    Axle load (kg)

    6000/10000

    F/R overhang (mm)

    1365/2385

    Approach/Departure angle ( ° )

    16/10

    Tread (mm)

    1960/1847

    Wheelbase (mm)

    5000

    Spring plate

    10/10+9,10/10+8


    Tyre size & quantity

    10.00-20 18PR,10.00R20 18PR,9.00R20 16PR,10R22.5 16PR

    & 6+1

    Cab

    One and half row


    Engine Description

    Engine model

    ISDe210 40

    Displacement (ml)

    6700

    Max power (kw)

    155

    Horsepower (hp)

    210

    Max speed (km/h)

    79

    Emission standard

    Euro 4

    Type of fuel

    Diesel


    Tank Description

    Tank volume (m³)

    13.49

    Transport medium

    Gasoline

    Density (kg/m³)

    700

    Tank size (mm)

    5800*2200*1500
