    ISUZU 600P High Altitude Operation Truck Aerial Platform Truck Double Row Cabin

    Ask Lasest Price
    Brand Name : SUNY
    Model Number : SY5071JGKQ4
    Certification : CCC, ASME, BV, SGS, etc
    Price : USD 66500-75000 / Set
    Supply Ability : 20 sets per month
    Delivery Time : 50 days after receiving deposits
    • Product Details
    • Company Profile

    ISUZU 600P High Altitude Operation Truck Aerial Platform Truck Double Row Cabin


    ISUZU 600P High Altitude Operation Truck Aerial Platform Truck Double Row Cabin

    Competitive Advantage :


    1 . Electro-hydraulic proportional control, reliable and longer service life
    2 . Compact telescopic booms,wider working range, faster maneuvering speed
    3 . Multi-way directional control valves, stable and comfortable
    4 . PCC, auto LML, real time working status monitoring
    5 . Sophisticated safety devices config


    We are a professional supplier of aerial working platform trucks in China , and we can provide our customers various configuration trucks with different prices .


    Applications :


    Aerial Worked Platform Truck is for tansfering person or equipment to aerial working.


    technical parameters :


    20M Telescopic Booms ISUZU 600P Aerial Platform Truck , Double Row Cabin High Operation Platform Truck


    Vehicle name

    20M Telescopic Booms ISUZU 600P Aerial Platform Truck Double Row Cabin High Operation Platform Truck

    Chassis

    Cab

    ISUZU 600P , double row cabin , A/C

    Engine model

    4KH1-TCG40 / 88KW / 120HP /2999ml

    Engine emission standard

    Euro IV

    Engine manufacture

    ISUZU Co. Limited

    Fuel type

    Diesel

    Tire

    7.00-20

    Wheelbase

    3815mm

    Gear box

    ISUZU MSB 5-speed

    Boom

    Boom type

    Telescopic Booms

    Turn around angle

    360°

    Platform

    Max.Rated.Load

    200kg(2 persons)

    Max.Working Height

    20M

    Max. Height off ground

    16.8M

    Max. working range

    11.6M

    Outrigger

    Adjustment

    Individual adjustment

    type

    H type

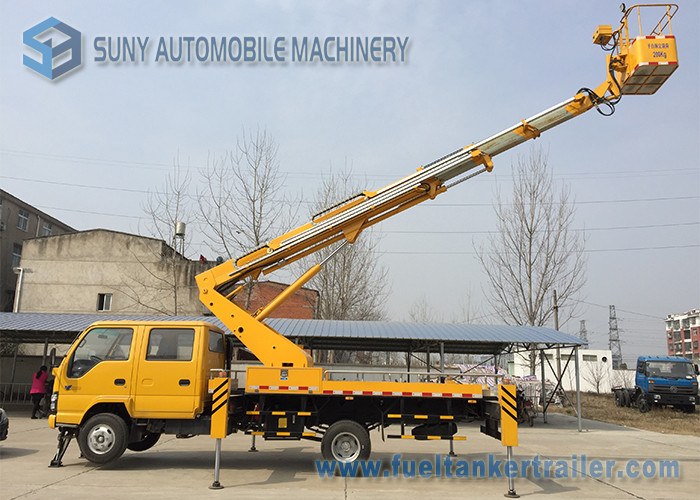

    More pictures show :

    ISUZU 600P High Altitude Operation Truck Aerial Platform Truck Double Row CabinISUZU 600P High Altitude Operation Truck Aerial Platform Truck Double Row Cabin

    ISUZU 600P High Altitude Operation Truck Aerial Platform Truck Double Row Cabin
