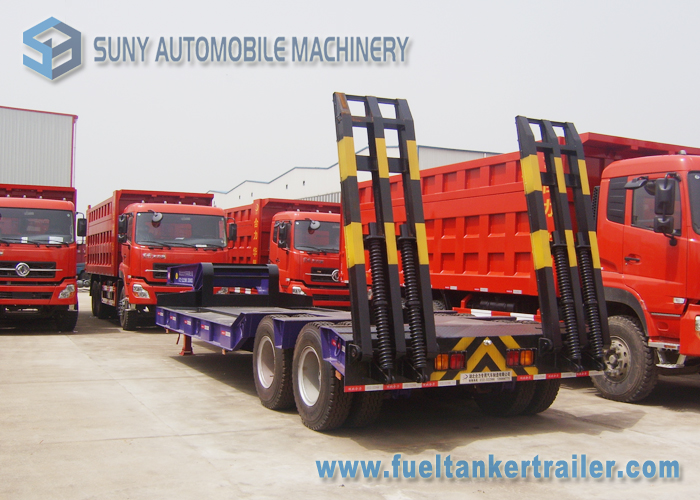

2 Axle Low Bed Semi Trailer Load 30 Tons Low Flat Bed Trailer With
Manual Ramp
Description:
Semi trailer is our company's main product. We configure Grid type
semi trailer ,low bed semi trailer, container semi trailer, flat
bed semi trailer, LPG tank semi trailer, fuel tank semi trailer,
water tanker semi trailer, fecal suction semi trailer, sewage
suction semi trailer, compactor garbage semi trailer, van semi
trailer, box semi trailer, water tank semi trailer, bitumen semi
trailer, bulk cement semi trailer, dump semi trailer, chemical tank
semi trailer and etc. We produce tank semi trailer with plastic
lining, aluminum tank, aluminum alloy tank, rotational molding,
carbon steel, stainless steel, production according to the
customer's requirement.
Specification:
30 ton Light Duty Low Flat Bed Semi Trailer
(low bed trailer material: carbon steel)
(low bed trailer capacity: from 30 ton to 100 ton. Dimensions
optional.)
(low bed trailer ramp opting : spring ramp / hydraulic ramp )
(low bed trailer axle opting: 1, 2, 3, 4 axle )
Low Bed Semi Trailer Specifications ( SY9203DPB 2 axle low bed semi trailer ) |
Overall dimensions (L*W*H) | 9550 * 3000 * 3180 mm (with rear ramp height), 1750 mm height without ramp height |
Design Loading | 30000 kg = 30 tons |
GVW | Approx 37300 kg |
Mass in working order | Approx 7300 kg |
Floor deck | 4 mm check plate |
Axle specification | 16 T × 2 pcs ( FUWA axle ) optional: BPW |
Wheel base | 6720 + 1310 mm |
Front / Rear track base | - / 2180 / 2180 mm |
Suspension system | Mechanical suspension |
Front / Rear suspension | -/ 1520 mm |
Approach / Departure angle | - / 19 ° |
Tire specification | 12.00R20 × 8 pcs (radial tires) |
Spring few films | 13 × 90-10 (optional: -/10/10/10) |
King pin | 50 # China brand kingpin, opting 90# / JOST. |
Landing leg | 28T load landing leg, optional JOST. |
Braking system | Optional: China brand 4S/2M ABS / WABCO ABS |
Optional | Optional container twist locker, and different ramp. |
Accessories |
Mudguards | PVC Mudguards |
Side protection | Nil. |
Fire extinguishers carriers | 2 pcs |
Spare tire carrier | 1 pc |
Tool box | 1 tool box with our factory's standard free tools |
