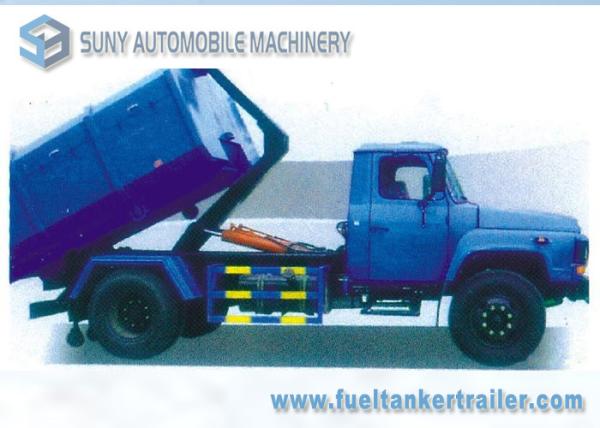

    140 Long Cab Lifting Diesel Garbage Trucks / Refuse Truck YC4E140-33 Engine

    Ask Lasest Price
    Brand Name : SUNY
    Model Number : SY1400ZBS
    Certification : CCC, ASME, BV, SGS, etc
    Price : USD 17,000~ 28,000 FOB Shanghai
    Supply Ability : 1000 units per year
    • Product Details
    • Company Profile

    140 Long Cab Lifting Diesel Garbage Trucks / Refuse Truck YC4E140-33 Engine

    140 Long Cab 6 Ton Lifting Garbage Body Truck, 6 M3 Refuse Collector Truck


    1. chassis: Dongfeng 140 long cab lifting garbage body truck;

    2. capacity: 6 M3 or 6 ton;

    3. tire: 9.00-20;

    4. engine: 140 hp, Euro III emission standard.

    5. one truck to several garbage containers.


    Description:


    The garbage truck is widely used in sanitation & municipal, industrial enterprises and residential area. The truck has several garbage tanks to avoid pollution during transporting process. The modified part can be separated from chassis, so it is easy to maintain and the mobility & readability of the truck are kept.
    If you have special demand of garbage truck, please contact with us. We may design and modify it for you. We also can add power steering and A/C for you.


    Specifications:


    Items

    Descriptions

    Specifications

    General

    Vehicle name

    140 long cab lifting garbage body truck, refuse collector truck

    The total mass ( kg )

    10490

    Curb weight ( kg )

    5795

    Payload weight ( kg )

    5000

    Overall dimensions ( mm )

    6255 * 2420 * 2600

    Top speed(km/h)

    90

    Driving cab capacity

    3 person

    Garbage box capacity

    6 m³

    Engine

    Fuel type

    Diesel

    Engine model

    YC4E140-33

    Engine power ( kw )

    103

    Displacement ( ml )

    4257

    Emission standard

    Euro 3

    Chassis

    Chassis model

    EQ1110FLJ8

    Steering wheel

    LHD

    Axle

    2

    Tire specification

    9.00-20

    Wheelbase ( mm )

    3950

    Wheel tread ( mm )

    1900/1800

    Front/rear suspension ( mm )

    1250/218033/12

    Approach/departure angle ( ° )

    33/12

    Spring leaf number

    8/11+8

    Equipment

    Protective part material: Q235A carbon steel.

    Rear protective section size: 150 * 50 mm, with 520 mm terrain clearance.

    Equipped with tachograph with satellite positioning function.

    Structure& Function

    Container Capacity ( m3 ) : 6

    Lifting arm circumference radius ( mm ) : 2400

    Filling Circulation Time ( s ): 20-25

    Unloading bucket hoisting time ( s ) : 30

    The hydraulic system working pressure ( Mpa ) :16
