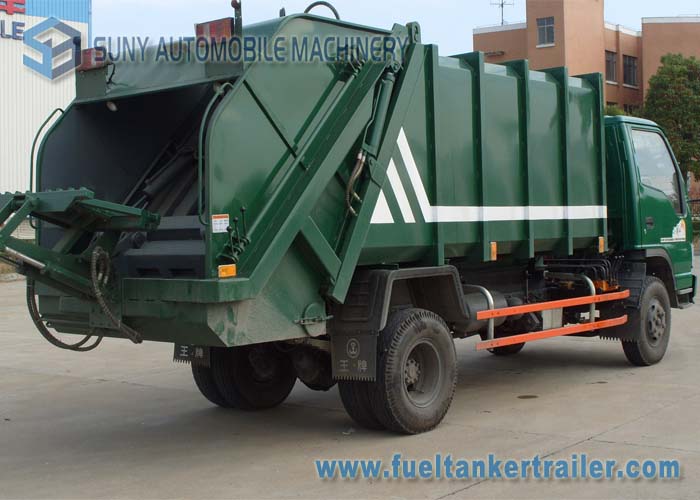

FAW 8 m3-12 m3 Comperssion Garbage Truck 4*2 Single Row 180 hp
2axles
Description&Applications:
Compression garbage truck is the urban sanitation special vehicle
which is used to highly collecting,transiting garbage and could
avoid to leak along the way leading to secondary pollution in the
collecting and transiting process.It is the ideal urban sanitation
equipment.
1. The collecting method is simple.
2. High compression ratio and big loading capacity
3. Automatic operation: adopting computer controlling system,could
set two operating models with full-automation and half-automation.
Competitive Advantage:
1- powful R & D capabilities------we can design and produce the
truck according to different trash cans of different countries so
that it can be fit for the different countries’ demand.
2- strict quality control----stable quality for each truck
3- competitive price-----based on same product, our price is most
competitive
4- best service-----we cherish each customer and opportunity.
Specifications:
FAW 8 m3-12 m3 Comperssion Garbage Truck 4*2 Single Row 180hp
2axles
Model | FAW 4x2 Garbage Compressed Garbage Vehicle for Sale |
Driving Model | 4X2 |
Vehicle Main Dimensions | (L x W x H)mm | 6150*2494*2800 |
Wheel base (mm) | 3800 |
Wheel track (front/rear) (mm) | 1500/2665 |
Approach/Departure angle(°) | 16/10 |
Weight in KGS
| G.V.W. | 16000 |
Curb Weight | 5150 |
Max. driving speed(km/h) | 80 |
Engine | Brand | Xichai |
Model | CA4DK1-18E3 |
Type | 4-stroke direct injection , 6-cylinder in-line with water cooling,
turbo-charging and inter-cooling |
Horse Power | 180(HP) |
Emission standard | Euro III |
Displacement | 4.78L |
Max. Output Power | 132kw |
Gearbox | RTS-11909A 9 forwards& 1 reverse |
Clutch | Reinforced diaphragm clutch, diameter 430mm |
Tire | 8.25R16 10.00R20 11.00R20 12.00R22.5All steel radial tire, 6pc
including 1 spare tire |
Brakes | Service brake: dual circuit compressed air brake |
Steering Gear | power steering, hydraulic steering with power assistance |
Garbage Truck Body |
Volume(M3) | 5CBM 6CBM 7CBM 8CBM 9CBM 10CBM 11CBM 12CBM 13CBM 15CBM 18CBM |
Material | Q235/Q345/610L/Q700 carbon steel, stainless steel, alloy steeel |
Equipment | Hermetic dustbin, hydraulic system and operating system |
Thickness | 4mm 6mm 10mm |
Uploding cycling time | <60s |
Loading cycling time | ≤30s |
Lifting capacity of turnover machanism | ≥800KG |
