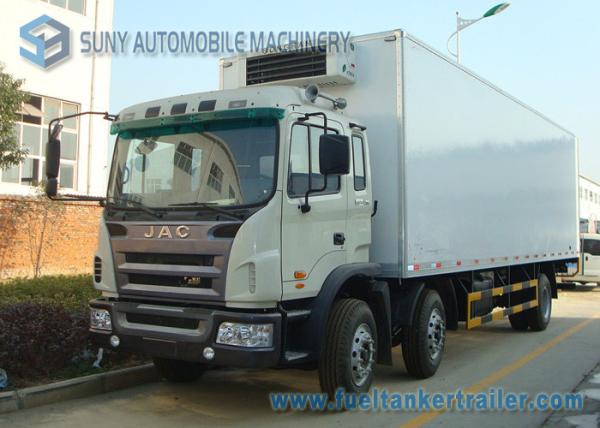

JAC 20 tons freezer refrigerated truck and trailer for sale in
Madagascar
Product Description:
Refrigerator is used to transport frozen or fresh goods enclosed
van trucks, is equipped with refrigeration unit refrigeration
device and polyurethane insulating refrigerated compartments of
special transport vehicles, commonly used to transport frozen foods
(ice truck), dairy (milk truck), fruits and vegetables (fresh
carrier), vaccine and drug transporter (vaccine), etc
Refrigerating machine:Carrier,DONG IN,K brand,China brand, etc
1. Product Parameter:
Type | 6 * 2 refrigerated van truck |
Brand | JAC |
Emission Standard | Euro 4 |
Cab | One and half row, with A/C |
Vehicle Description |
Overall dimensions(mm) | 11990 * 2550 * 3940 |
G.V.W (kg) | 24500 |
Curb weight(vehicle) (kg) | 10910 |
Loading capacity (kg) | 15000 |
Whole vehicle main performance |
Max speed (Km/h) | 95 |
Engine |
Engine model | YC6J200-46 |
Maximum power(kw) | 132kw / 200hp |
Displacement (lit) | 6494 |
Number of cylinders | 6 |
Type of fuel | Diesel |
Chassis Description |
Chassis model | HFC1241P2K1C54F |
Wheel base (mm) | 1900 + 5400 |
F/R overhang (mm) | 1495 / 3195 |
F/R tread (mm) | 2040 / 1860 |
Gear box | 9 forwards & 1 reverse |
Approach / Departure angle (°) | 21 / 11 |
Spring plate | 9 /9 / 9 + 7 |
Type of fuel | Diesel |
Brake system | Air braking |
Operation control system | Power Steering |
Electric system | 24V |
Tires & Quantity | 11.00R20 & 8+1 |
The Description for Refrigerated |
Dimension (mm) | 9300 * 2330 * 2450 |
Fact volume (M3) | 50 |
Material | The fiber-glass between the inner-outer color plate |
Independent refrigeration unit | Equipped with the K693 independent refrigerated unit |
Temperature range | -10 °C |
Heat preservation layer | 8cm |
Side door | For your optional |
The standard parts of van | Stainless lock,stainless cornerite,stainless frame,dome
light,bumper block,ventilating slot |
2. Packing and Shipping:
Truck is nude packing, shipping in container, in bulk , in ro-ro.
We will choose the best shipping type basis on truck volume, truck
structure, Sail Schedule, clients’ requirement for clients!
