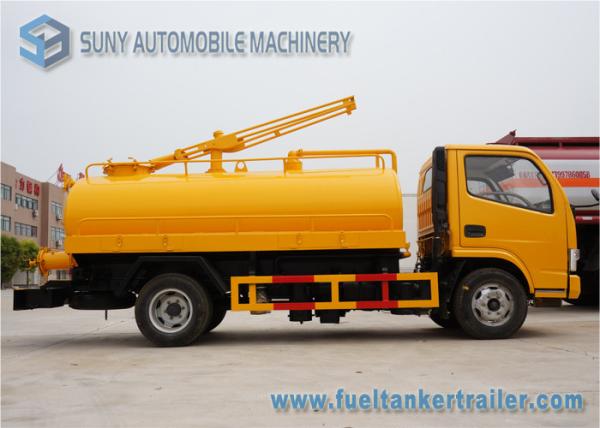

    4000L Q235A Carbon Steel Water Tanker Truck Vacuum Fecal Suction Truck

    Ask Lasest Price
    Brand Name : SUNY
    Model Number : SY5071GXEE
    Certification : CCC, ASME, BV, SGS, etc
    Price : USD16000-18000 / Set
    Supply Ability : 50 sets per month
    Delivery Time : 25 days after receiving deposits
    • Product Details
    • Company Profile

    4000L Q235A Carbon Steel Water Tanker Truck Vacuum Fecal Suction Truck

    4000L Dongfeng 100 hp 4x2 Vacuum Suction Fecal Tank Sanitation Truck


    Description:

    Fecal suction truck is mainly used for suction, transportation and discharge of sewage from septic tank and sludge from drains. Widely used by municipal environment and sanitation department and residential management.


    Applications:

    1. Product application.

    2. City planning.

    3. Septic tank.

    4. Residential areas.

    5. Agriculture.

    6. Chemical industry.

    7. Medium and small cities.


    Competitive Advantage:

    1. Time for full suction less than 5min.

    2. The fecal suction pipe can rotate 360 degree.

    3. Equipped with hand washing device.

    4. Automatic alarm and close the cover when suction full.

    (Overfill system with music horn is equipped to prevent the vacuum pump damage from fecal into

    vacuum pump when the tank is full)

    5. Optional high-pressure cleaning function of fecal truck.


    Specifications:

    Suction System Specification

    Tank



    Tank Capacity ( L )

    4000

    Tank Material

    Q235A carbon steel ( Stainless steel is optional )

    Tank Shape

    Cylinder shape

    Tank Size ( length * macro axis*mini axis )( mm )

    3400*1600*1100

    Vacuum pump



    Model

    China famous WEILONG ( Optional )

    Max Vertical Suction ( m )

    ≥ 8

    Absolute Working Pressure ( pa )

    8500

    Rated Speed

    500

    Rated Pumping Speed ( L/ s )

    98

    Pump inlet diameter ( mm )

    50

    Container Filling Time ( s )

    ≤ 5

    Container Emptying time ( s )

    ≤ 5

    Chassis Specification

    Truck Model

    DFA1070SJ35D6

    Engine



    Model

    CY4102-CE4F

    Type

    Four-cylinder, water-cooled, mechanical injection

    Rated power ( Hp )

    100

    Transmission



    Model

    DONGFENG

    Type

    5 Forward & 1 Reverse Speed

    Travelling



    Drive Model

    4 x 2

    Steering Wheel Position

    Left hand drive

    Max. Travelling speed

    95

    Dimension



    Overall Size ( mm )

    5950 x 1960 x 2450

    Tire Size

    7.00-16 14PR

    Wheel Base ( mm )

    3300

    Weight



    Curb Weight ( kg )

    3755

    Payload Capacity ( kg )

    3350

    Super Tank: Head and the tank made by a molding, thickening, anti-high-pressure.

    Sub frame: Full sub-frame with flexible mounting fixed to the truck chassis by horse bolts. Sub-frame and chassis medium with wooden plates.

    Vacuum System: Liquid ring vacuum pump, is driven from the PTO on the gearbox, provides high airflows along with high vacuum levels for removing debris above or below liquid surfaces.

    Tank Mounting: The truck will be equipped at our expense with a sub frame according to truck manufacturer’s prescriptions.

    Painting: All steel parts are sand blasted before painting. One anti-corrosion and zinc-rich primer and final painting at customer’s choice of colour.All steel parts are steel blasted before painting. Paint markers according to customer’s demand.

    Suitable for the transport of non-hazardous waste products and built according to the design rules for vacuum operated waste tankers.
