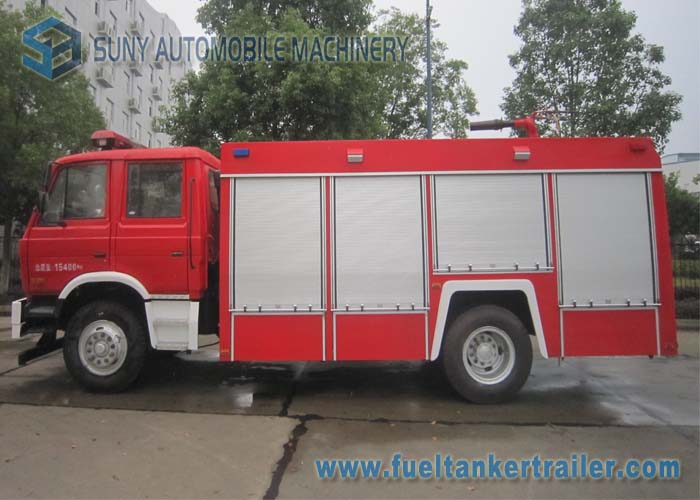

    Carbon Steel Q235 Tank Two Axle Dongfeng Fire Fighting Vehicle 4x2 With ISB190 40 Engine

    Ask Lasest Price
    Brand Name : SUNY
    Model Number : SY5151XF
    Certification : CCC, ASME, BV, SGS, etc
    Price : USD45000 /set- USD55000/set
    Payment Terms : Western Union, T/T, L/C
    Supply Ability : 200 set per month
    Delivery Time : 15-25 working days
    • Product Details
    • Company Profile

    Carbon Steel Q235 Tank Two Axle Dongfeng Fire Fighting Vehicle 4x2 With ISB190 40 Engine

    6000 l--7000 l 4x2 2 Axle Water And Foam Fire Fighting Truck 190hp Dongfeng Double Row
    Description & application:
    1- Water tank fire truck equipped with water storage tank, fire pumps, fire fighting water cannon, and other fire equipment to put out the fire. It also can be absorb water directly and supply water to other fire vehicle, equipment or water supply shortage region. It is suitable for general fire put out.
    2- Water and foam fire truck water tank equipped with fire pump and foam mixed system, bubble gun, cannon, and etc., can spray water and foam mixture to put out the fire during extigushing. It is specially suitalbe in petrochemical industry, power plants and valuable equipment instruments, it is the necessaary fire truck for petrochemical enterprises, oil terminals, airport and city fire extigushing field.
    3- There are Dry powder fire truck and Ladder fire truck optional

    Competitive Advantage:
    1- powful R & D capabilities ---- we can design and produce the truck according to different fire equipment of different countries so that it can be fit for different countries’ demand.
    2- strict quality control ---- stable quality for each truck
    3- competitive price ----- based on same product, our price is most competitive
    4- best service ----- we cherish each customer and opportunity.

    Specifications:

    6000 l--7000 l 4x2 2 Axle Water And Foam Fire Fighting Truck 190hp Dongfeng Double Row

    Vehicle Description

    Brand-Series

    Dongfeng 4x2 Fire Truck

    Emission Standard

    Euro 4

    Chassis Model

    EQ1160GKJ1

    Fuel type

    Diesel

    Cabin

    Dongfeng Double row,Optional A/C

    Whole vehicle main dimensions (mm)

    Overall size (L× W× H )

    7990*2490*3410

    Wheel base

    4500

    Front overhang

    1250

    Rear overhang

    1900

    Min. ground clearance

    515

    Weight data (kg)

    G.V.W

    15400

    Curb weight ( chassis )

    8250

    Max payload

    6000-12000

    Engine

    Model

    ISB190 40

    Maximum power

    140kw / 190 hp

    Number of cylinders

    6

    Displacement ( L )

    5.900

    Engine Manufacturer

    Dongfeng cummins engine

    Transmission

    Number of gears

    5 forward gears, 1 reverse gear ( Manual )

    Axle

    Front axle

    3.6 T

    Rear axle

    10 T

    Suspension

    Spring Leaf spring

    9/ 10+8

    Steering system

    /

    Powering steering

    Brake system

    Service brake

    Dual circuit compressed air brake

    Electric device

    Rated voltage

    24 V

    Tires & Quantity

    10.00- 20 & 8+ 1

    Tank Description

    Fact cubage ( L )

    Water 6000 L / Foam 1000 L

    Tank material

    Carbon steel Q235

    Others

    Pump: CB10/40, flowing rate: 40 L / s /MPa
    Monitor: PL32, flowing rate: 32 L/ s / MPa,
    Covering range: Water≥ 50 m, foam≥ 45 m

    Accessories in Fire Truck

    Suction pipe (4 m )

    2 pcs

    Hose coating

    4 pcs

    Water filter

    1 pcs

    Protecting bridge of hose

    1 set

    Manifold for separating

    1 pcs

    Hose link

    4 pcs

    20m Fire hose( Φ65 & 80 )

    4+6 pcs

    Fire hydrant wrench
    ( Ground )

    1 pcs

    Manifold for converging

    1 pcs

    Fire hydrant wrench
    ( Underground )

    1 pcs

    Waist ax

    1 pcs

    Suction pipe wrench

    2 pcs

    Dry-powder fire extinguisher

    1 pcs

    Fire bucket

    1 pcs
