Brand Name : | SUNY |
Model Number : | SY5100XF |
Certification : | CCC, ASME, BV, SGS, etc |
Price : | USD20000 /set- USD35000/set |
Payment Terms : | Western Union, T/T, L/C |
Supply Ability : | 200 set per month |
Delivery Time : | 15-25 working days |

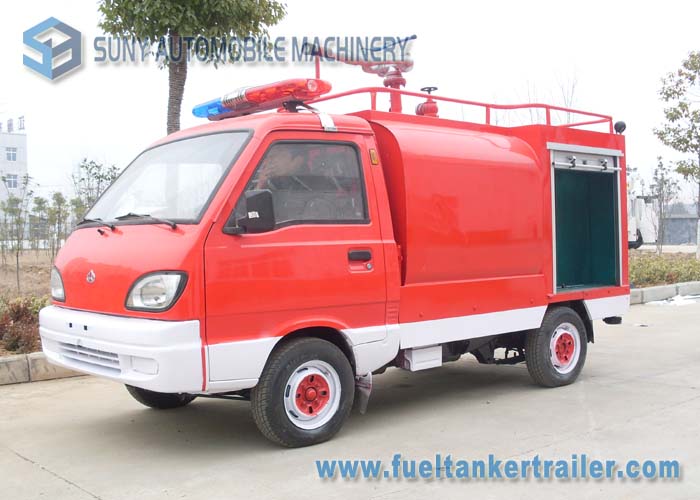

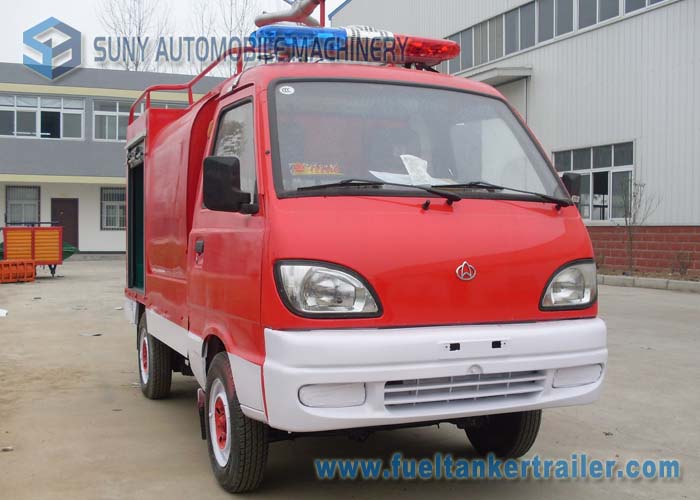

4000 L- 5000 L Chang’an Single Row Mini Water Tank Fire Fighting Truck 4x2 2 Axle 53 hp
Description & application:
1- Water tank fire truck equipped with water storage tank, fire
pumps, fire fighting water cannon, and other fire equipment to put
out the fire. It also can be absorb water directly and supply water
to other fire vehicle, equipment or water supply shortage region.
It is suitable for general fire put out.
2- There are Water and foam fire fighting truck, Dry powder fire
truck and Ladder fire truck optional
Competitive Advantage:
1- powful R & D capabilities ---- we can design and produce the
truck according to different fire equipment of different countries
so that it can be fit for different countries’ demand.
2- strict quality control ---- stable quality for each truck
3- competitive price ----- based on same product, our price is most
competitive
4- best service ----- we cherish each customer and opportunity.
Specifications:
4000 L- 5000 L Chang’an Single Row Mini Water Tank Fire Fighting Truck 4x2 2 Axle 53 hp
Product | Fire truck | |
Vehicle description | Overall dimensions ( mm ) | 4150*1530*2280 |
GVW ( kg ) | 1800 | |
Mass in working order ( kg ) | 1200 | |
Rated loading capacity (kg ) | 470 | |
chassis parameters | Chassis mod | SC1022DB4 |
Fact cubage ( L ) | 500 | |
Foam tanker internal dimension | ||
Water tanker internal dimensions | 2340*1380*1380 | |
Approach/Departure angle ( ° ) | 58/ 29 | |
F/R overhang ( mm ) | 480/ 1170 | |
Wheel base ( mm ) | 2500 | |
F/R track base ( mm ) | 1280/ 1290 | |
Traction system | 4*2 | |
Number of axles | 2 | |
F/R axle-load ( Kg ) | 860/940 | |
Spring plate | -/5 | |
Braking system | Air braking | |
Tire specification | 165/70R13LT | |
Number of tires | 4+1 | |
Electric system | 24 v | |
Allowable passengers in cab | 2 | |
Air-conditioner | optional | |
Engine | Engine model | JL66Q4 |
Type of fuel | Diesel | |
Exhaust(ml) | 1012 | |
Rated Power ( kw ) | 39 | |
Horse power | 53 | |
Operation control system | Steering wheel | |
transmission | 5 speed | |
Max speed ( km / h ) | 95 | |
Manufacturer | Chongqing Chang’an Automobile Co., Ltd | |
Emission standard | EURO 3 | |
Equipment | Middle and low pressure pump : CB20.10 / 30.60 Flow:middle pressure 30 L / S low pressure 60 L / S Pressure: middle pressure 2.0 MPa low pressure 1.0 MPa PL48 Fire Pump Flow: 48 L / S Pressure: 1.0~1.2 MPa Fire distance (water): ≥ 65 m | |
Production cycle | 15-20 days | |
Warranty | 12 month, from the date of supply |
![]() |
