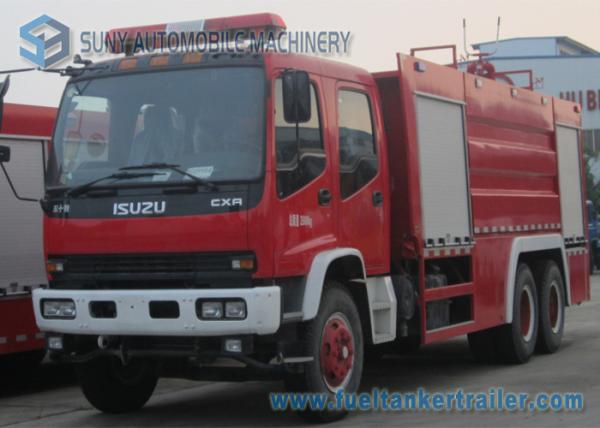

    ISUZU 9000L 6x4 Water Tank Fire Truck , Double Row Cab 260Hp 3 Axle Truck

    Ask Lasest Price
    Brand Name : SUNY
    Model Number : SY5151XFIZ
    Certification : CCC, ASME, BV, SGS, etc
    Price : USD65000 /set- USD85000/set
    Payment Terms : Western Union, T/T, L/C
    Supply Ability : 200 set per month
    Delivery Time : 15-25 working days
    • Product Details
    • Company Profile

    ISUZU 9000L 6x4 Water Tank Fire Truck , Double Row Cab 260Hp 3 Axle Truck


    ISUZU 9000 L 6x4 Water Tank Fire Fighting Truck 3 Axle 260 Hp Double Row Cab



    Description & application:
    1- Water tank fire truck equipped with water storage tank, fire pumps, fire fighting water cannon, and other fire equipment to put out the fire. It also can be absorb water directly and supply water to other fire vehicle, equipment or water supply shortage region. It is suitable for general fire put out.
    2- Water and foam fire truck water tank equipped with fire pump and foam mixed system, bubble gun, cannon, and etc., can spray water and foam mixture to put out the fire during extigushing. It is specially suitalbe in petrochemical industry, power plants and valuable equipment instruments, it is the necessaary fire truck for petrochemical enterprises, oil terminals, airport and city fire extigushing field.
    3- There are Dry powder fire truck and Ladder fire truck optional

    Competitive Advantage:
    1- powful R & D capabilities ---- we can design and produce the truck according to different fire equipment of different countries so that it can be fit for different countries’ demand.
    2- strict quality control ---- stable quality for each truck
    3- competitive price ----- based on same product, our price is most competitive
    4- best service ----- we cherish each customer and opportunity.

    Specifications:ISUZU 9000 L 6x4 Water Tank Fire Fighting Truck 3 Axle 260 Hp Double Row Cab


    Product

    Fire truck

    Vehicle

    description

    Overall dimensions ( mm )

    10210*2490*3560

    GVW ( kg )

    24500

    Mass in working order ( kg )

    13000

    Rated loading capacity ( kg )

    11050

    chassis

    parameters

    Chassis mod

    CXA34T

    Fact cubage ( L )

    9000

    Water tanker dimension

    3010*2300*1300

    Approach/Departure angle ( ° )

    26/14

    F/R overhang ( mm )

    1335/2420

    Wheel base ( mm )

    5100+1300

    F/R track base ( mm )

    1960/1855/1855

    Traction system

    6*4

    Number of axles

    3

    F/R axle-load ( Kg )

    6500/18000

    Spring plate

    9/10

    Braking system

    Air braking

    Tire specification

    11.00-20

    Number of tires

    10+1

    Electric system

    24v

    Allowable passengers in cab

    2+4

    Air-conditioner

    optional


    Engine

    Engine model

    6HK1-TC

    Type of fuel

    Diesel

    Exhaust(ml)

    7790

    Rated Power ( kw )

    191

    Horse power

    260

    Operation control system

    Steering wheel

    Max speed (km / h )

    85

    Manufacturer

    Qingling Motors Co., LTD

    Emission standard

    EURO 3

    Equipment

    Middle and low pressure pump :CB20.10 / 30.60

    Flow:middle pressure 30 L / S low pressure 60 L / S

    Pressure: middle pressure 2.0 MPa low pressure 1.0 MPa

    PL48 Fire Pump Flow: 48 L / S

    Pressure: 1.0~1.2 MPa

    Fire distance ( water ) : ≥ 65 m

    Production cycle

    15-20 days

    Warranty

    12 month, from the date of supply
