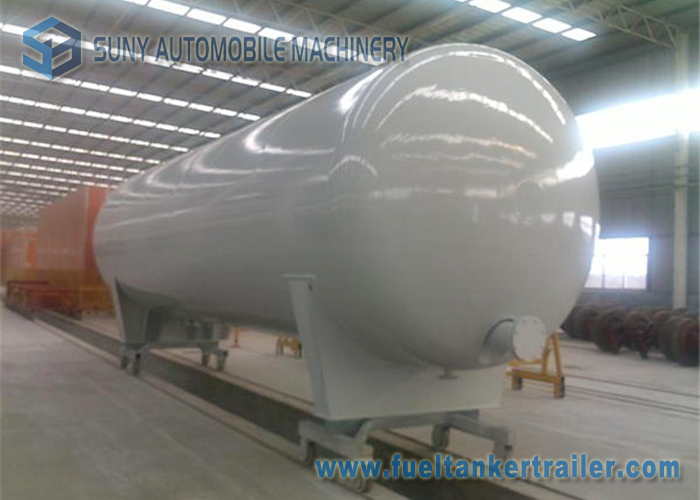

50 M3 LPG Tank Trailer, 50000 liters LPG Propane Gas Storage Tank,
50 CBM LPG Propane Gas Tanker
1. LPG propane gas storage tank volume: 50 m3, 50 cbm, 50000 L,
50000 liters;
2. LPG propane gas storage tank diameter: 2300 mm, 2400 mm, 2600
mm, 2700mm, 2800 mm;
3. LPG propane gas storage tank material: Q345R, Q370R;
4. optional accessories: Safety valve, magnetic flap liquid level
gauge, pressure gauge, thermometer, cut-off valves, etc.
5. Designing pressure:1.77 Mpa Designing temperature: -20 °C to 54
°C.
6. The various types LPG tanker is researched and manufactured by
stress analysis design and has obvious advantage of large capacity,
light weight and high efficiency.
7. We inspect the quality of product strictly, ensure that A and B
type of welding seam pass the examination of level two radiographic
test, C and D type of welding seam pass the examination of level
one radiographic test.
8. There are high safety domestic or imported safety accessories
for customers option.
9. The anti-corrosion coating of LPG tanker adopt the following
process, sandblast, spray painting, purging and so on
Competitive Advantage:
1. Factory direct sales, fast delivery
2. Lowest price comparing the same quality
3. High Quality, good performance,
4. 18 months warranty, main beam whole life time grantee!
5. ISO, CCC, SGS certificate
Specifications:
Item | Parameters | Item | Parameters |
Product | 50 m3 lpg storage tank | Liquid Indicator | Model | UHZ-518C14 |
Overall dimensions | 12508 * 2324 * 2914 | Version | Magnetic |
Net weight ( Kg ) | 10190 | Normal pressure | 2.5 Mpa |
Vessel type | III | Scope of testing | 50-2300 mm |
Designing pressure | 1.77 Mpa | Precision | 2.5 |
Working pressure | 1.61 Mpa | Safety Valve | Model | A42F-2.5-80 |
Designing temperature | -19~50 ℃ | Version | Built-in |
Filling Medium | Propane | Normal pressure | 2.5 Mpa |
Corrosion margin | 1.0 mm | Normal diameter | DN80 |
Volume | 50 CBM | Opening pressure | 1.68-1.76 Mpa |
Heat treatment | bulk | Re-seating pressure | ≥ 80% of opening pressure |
Filling factor | 420 kg / m3 | Normal Diameter of Handling System | Feed pip | DN80 |
Material | Q345R | Drain pip | DN80 |
Hydraulic test pressure | 2.22 Mpa | Admission port | DN50 |
Gas tight test pressure | 1.77 Mpa | Sewage outfall port | DN80 |
Cylinder thickness | 12 mm | Vent nozzle port | DN80 |
Head thickness | 14 mm | stand | GB150-1998 < steel pressure vessels > |
Service time | 10 years | Safety regulation of pressure vessels |
Accessory | Safety valve, magnetic flap liquid level gauge, pressure gauge,
thermometer, cut-off valves, etc. |
