6X4 HINO 700 Cement Mixer Truck 10Cbm 350Hp Single Cab 3D Mixing
Description:
1) Color: White, Black and Purple. Optional;
2) Engine: HINO, 350 HP;
3) Water Tank: Black, 450 Litres;
4) Chute: Black, Detachable, 90 CM;
5) Mixing Drum: White, Black and Purple, 10 M3 mixing volume;
6) Cab: White, Single Cab;
7) Chassis: HINO 700;
8) Ladder: Black, One side;
9) Reducer brand: Germany brand , ZF;
10) Hydraulic pump brand: Germany brand , Rexroth;
11) Hydraulic motor brand: Germany brand , Rexroth.
Applications:
The mixer truck is for mixing and transporting concrete, beton,
cement. Our mixer trucks are mainly made by alloy steel, with high
quality and competitive price.
Competitive Advantage:
1) For producing mixing tank and mixing blade, our factory use
B520JJ alloy steel as material, other factories use Q235 carbon
steel. B520JJ alloy steel is 1 ~ 2 times stronger than Q235 carbon
steel. Our mixing tank ’ s life can be 50 ~ 80 thousand cubic
meters, our mixing blade ’ s life can be 30 ~ 40 thousand cubic
meters.
2) Mixing tank is equipped with sectional mold tooling which
ensures the tank round and coaxial. Automatic welding ensures the
weld seam smooth, beautiful and stronger. Other factories don ’ t
use sectional mold tooling and automatic welding.
3) 3D mixing technology ensures uniform mixing, input rate ≥ 8m3 /
min, output rate ≥ 5m3 / min, residual rate ≤ 0.45 % , Slump 50 mm
~ 220 mm. We weld special wear rib on the edge of mixing blade
which makes the mixing blade ’ s life increasing more than 12 % .
Other factories don’t have 3D mixing technology and special wear
rib.
4) Reducer, hydraulic pump and motor are optional base on customers
’ requirements.
Specifications:
6X4 HINO 700 Cement Mixer Truck 10Cbm 350Hp With 3D Mixing
Technology
Vehicle Description |
Vehicle brand | SUNY | Drum mixing volume ( m3 ) | 10 |
Overall dimensions ( mm ) | 9070 x 2500 x 3880 | GVW ( kg ) | 40000 |
Curb weight ( kg ) | 14070 | Rated contained mass ( kg ) | 20000 |
Front Passengers In Cab | 2 | Max speed ( Km / h ) | 90 |
Slump ( mm ) | 110 - 220 | Bank angle ( ° ) | 13 |
Input rate ( m3 / min ) | ≥ 8 | Output rate ( m3 / min ) | ≥ 5 |
Filling rate | 65 % | Residual rate | < 0 . 4 % |
Chassis Description |
Approach / Departure angle ( ° ) | 20 / 17 | F / R overhang ( mm ) | 1410 / 2610 |
Wheel base ( mm ) | 3640 + 1410 | F/R axle - load ( kg ) | 7000 / 18000 + 18000 |
Number of axles | 3 | Leaf spring quantity | 10 / 13 |
Tire quantity | 10 + 1 | Tire specification | 11 . 00 - 20 |
F/R track base ( mm ) | 2060 / 1855 + 1855 | Type of fuel | Diesel |
Engine Description |
Cylinder quantity | 6 | Displacement ( ml ) | 10520 |
Power ( hp ) | 350 | Rated speed ( RPM ) | 2100 |
Torque ( N . m ) | 1460 | Torque speed ( r / min ) | 1100 |
Integrated fuel consumption | 29.1 L / 100 KM | Idle speed fuel consumption | 18.9 L / 100 KM |
Engine Manufacturer | Hino Engine Co . , Ltd |
Reducer Description |
Reducer brand | Germany brand , ZF |
Gear ratio | 1 : 130 | Torque ( N . m ) | 65000 |
Hydraulic Pump Description |
Hydraulic pump brand | Germany brand , Rexroth |
Flow rate ( L ) | 90 | Rated pressure ( MPa ) | 35 |
Hydraulic Motor Description |
Hydraulic motor brand | Germany brand , Rexroth |
Flow rate ( L ) | 90 | Rated pressure ( MPa ) | 35 |
Water Supply System Description |
Water supply type | Air pressure | Working pressure ( MPa ) | 0 . 25 - 0 . 3 |
Water tank volume ( L ) | 450 |

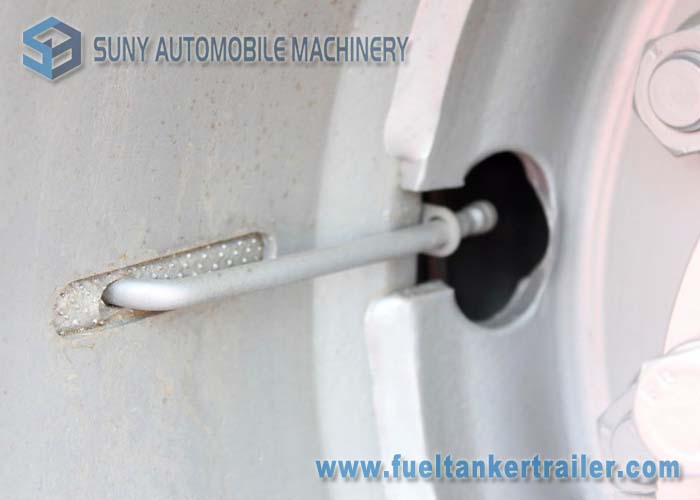

More pictures:
Welcome to contact us for more pictures and information.
