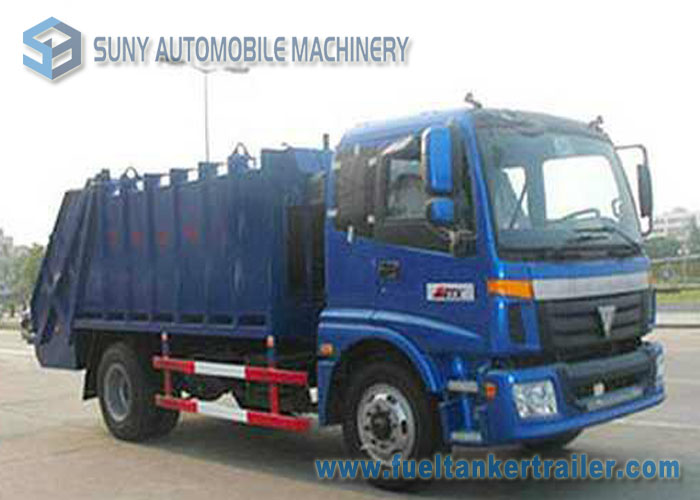

FOTON 4X2 2 Axle Diesel Garbage Container Truck 5000kg / 10M3 Load
Description&Applications:
Compression garbage truck is the urban sanitation special vehicle
which is used to highly collecting,transiting garbage and could
avoid to leak along the way leading to secondary pollution in the
collecting and transiting process.It is the ideal urban sanitation
equipment.
1. The collecting method is simple.
2. High compression ratio and big loading capacity
3. Automatic operation: adopting computer controlling system,could
set two operating models with full-automation and half-automation.
Competitive Advantage:
1- powful R & D capabilities ------ we can design and produce the
truck according to different trash cans of different countries so
that it can be fit for the different countries’ demand.
2- strict quality control ---- stable quality for each truck
3- competitive price ----- based on same product, our price is most
competitive
4- best service ----- we cherish each customer and opportunity.
Specifications:
FOTON 4X2 2 Axle Diesel Garbage Trucks 5000kg /10M3 Load
Product Name | Foton Auman compressed garbage truck |
Chassis Model | BJ5163ELFFD |
Payload(Kg) | 6500-10000 |
Curb weight(Kg) | 9105 |
Overall weight(kg) | 15800 |
Drive Model | 4x2 |
Drive Type | Left-hand |
Vehicle Body Color | Blue (optional) |
Engine | Brand | LOVLO |
Model | Phaser180Ti-30 6 cylinder in-line with water cooling & inter-cooling, direct injection |
Displacement(L) | 5.99 |
Max.Power(kW) | 180 |
Rated power Rev(RPW) | 2500 |
Maximum Torque(N*m)/Rev(r/min) | 633/1400-1600 |
Clutch | Model | 395 diaphragm spring |
Transmission | Brand | Datong |
Model | 6 speed ( 6 forward, 1 reverse, manual) |
Rear Axle(drive axle)-Model | 10 tons 153 strengthen rear axle |
Front Axle-Model | 5 ton |
Cabin type | Auman 2.2m ETX ,with air condition |
Steering System | Steering |
Wheelbase (mm) | 4500 |
Wheel/Tire | Type | Nylon tire |
Model | 10.00-20 |
Tire number | 10+1 |
Oil Tank | Volume(L) | 280 |
Dimensions | Overall (mm) | 8520x2490x3350mm |
| Body (cbm) | 10cbm |
Track | Front track(mm) | 1900 |
Rear track(mm) | 1800 |
Axles loading (kg) | 5900/9900 |
Front overhang/Rear overhang(mm) | 1365/2655 |
Approach/Departure Angle | 20/12 |
No. of steel spring(front/rear) | 10/10+8 |
Max.speed(km/h) | 85 |
