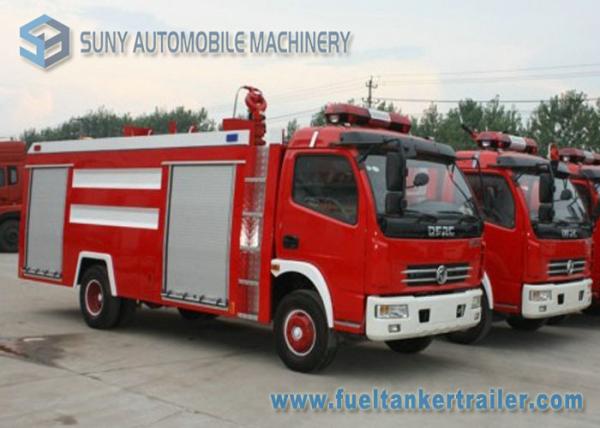

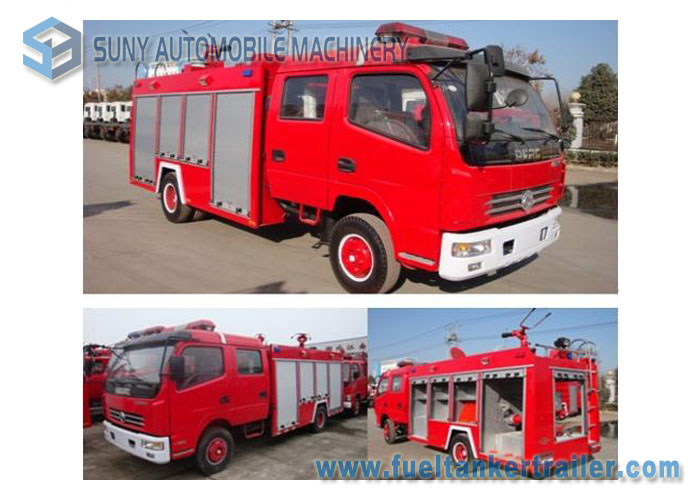

    DONGFENG 4000L Fire Fighting Vehicle 20hp Double Row For Emergency Rescue

    Ask Lasest Price
    Brand Name : SUNY
    Model Number : SY5153XFSC
    Certification : CCC, ASME, BV, SGS, etc
    Price : USD35000 /set- USD55000/set
    Payment Terms : Western Union, T/T, L/C
    Supply Ability : 200 set per month
    Delivery Time : 15-25 working days
    • Product Details
    • Company Profile

    DONGFENG 4000L Fire Fighting Vehicle 20hp Double Row For Emergency Rescue

    DONGFENG 4000L Fire Fighting Vehicles 20hp Double Row For Emergency Rescue


    Description & application:
    1- Water tank fire truck equipped with water storage tank, fire pumps, fire fighting water cannon, and other fire equipment to put out the fire. It also can be absorb water directly and supply water to other fire vehicle, equipment or water supply shortage region. It is suitable for general fire put out.
    2- Water and foam fire truck water tank equipped with fire pump and foam mixed system, bubble gun, cannon, and etc., can spray water and foam mixture to put out the fire during extigushing. It is specially suitalbe in petrochemical industry, power plants and valuable equipment instruments, it is the necessaary fire truck for petrochemical enterprises, oil terminals, airport and city fire extigushing field.
    3- There are Dry powder fire truck and Ladder fire truck optional

    Competitive Advantage:
    1- powful R & D capabilities ---- we can design and produce the truck according to different fire equipment of different countries so that it can be fit for different countries’ demand.
    2- strict quality control ---- stable quality for each truck
    3- competitive price ----- based on same product, our price is most competitive
    4- best service ----- we cherish each customer and opportunity.

    Specifications:


    DONGFENG 4X2 4000L Water / Foam Fire Fighting Trucks 120hp double row


    Vehicle parameters

    Overall dimensions

    7025X2095X2840mm

    Curb weight

    5600kg


    Water tank volume

    4000L




    Chassis parameters

    Chassis model

    EQ1090T9ADJ3AC

    Chassis brand

    DONGFENG


    Overall dimensions

    6695x2180x2350mm

    Wheel base

    3800mm


    Front/rear wheel track

    1750/1586mm

    Front/rear suspension

    1180/1715mm


    Approach/departure angle

    22/13°

    Maximum speed

    80km/h


    Chassis Manufacturer

    Dongfeng Automobile Co.,Ltd

    Cab

    Configuration

    Double rows cab,allowable 3+3 passengers

    Color

    White,other color is optional

    Engine

    Model

    CY4102-E3C

    Emission

    Euro 3

    Type

    4 cylinders, in-line,4-stroke,water-cooled,turbo inter-cooling,diesel engine

    Rated power

    120hp,rated power speed 2800rpm

    Displacement

    3856ml

    Bore x stroke

    102x118mm

    Manufacturer

    Dongfeng Chaoyang Diesel Power Co. Ltd.

    Tire

    Size

    7.50R16,steel wire tire

    Number

    6+1 nos

    Frame

    192mm

    Brake

    Air break, electronic flame out, exhaust brake

    Fuel tank

    100L,steel

    Front axle

    2.4T

    Rear axle

    4.2T

    Drive form

    4X2

    Rated voltage

    24V,DC

    Transmissions

    5 speed forward 1 reverse.

    Steering device

    Power assisted steering

    Steering wheel

    Left hand drive

    Selective configuration

    Air Conditioner, Cummins engine B140 33(140hp)

    If there is a slight change in the chassis parameters above,please take the actual product as the standard
