20000 L DONGFENG 210hp 6x4 Vacuum Tank Truck High - Pressure Sewage
Vacuum Truck
Description:

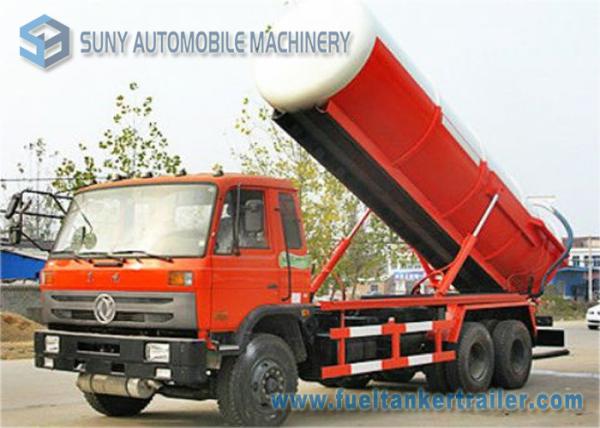

The truck is equipped with high-powered vacuum suction pump and
high quality hydraulic system. With rear lid of the tank opened
hydraulically, and double cylinders on both sides of the tank
lifting up, the truck can dump the sewage directly through the rear
lid out of the tank. Characterized by high vacuum, large capacity,
high efficiency and good seal, the truck is widely used. Full tank
pumping time: ≤ 5 min; suction width: ≥ 8 m.Very suitable for
sucking sewer sediments, such as mud, silt, stones, bricks and
other big objects.
Applications:
Rinsing underground sewage pipes, the collection and transportation
of sludge and city life waste and building operations such as muddy
water in liquid waste and other functions.
Competitive Advantage:
1. Equipped with special vacuum pump, power take off, transmission
shaft, high pressure sewage tank, pipe network, sewage pipe for
observing and cleanout equipment. Time for full suction < 5min
2. The Sewage Suction Trucks, special section, taking the force
transmission device by rotary vane pumps, vacuum pump, ( with
domestic leading technology big suction ) oil and gas separation
device, hydrosphere separator, vacuum pressure gauge, pressure
vessel, pipe system composition, and equipped with hand-washing
facilities and visual dung tube.
3. The tanks bulbar and the horizontal sextant angle are greater
than the material rest angle, ensuring the discharging speed.
4. The diesel engine ( air compressor unit ), providing compressed
air.
Specifications:
Vehicle Description |
Vehicle model | Sewage suction truck | Overall dimensions ( mm ) | 9600x2500x3300 |
GVW ( kg ) | Appro×25000 | Fact loading capacity ( L ) | 20000 |
Mass in working order ( kg ) | Appro×10805 | Max. Speed ( km/h ) | 85 |
Chassis Description |
Chassis Model | EQ1258KB3GJ |
Cab | Standard cabin |
Color | Optional |
Allowable person in cab | 2/3 |
Wheel base ( mm ) | 4350+1300 |
Front/Rear track base ( mm ) | 1940/1860/1860 |
Front/Rear overhang ( mm ) | 1245/2845 |
Number of axles | 3 |
Axle | Front axle | 5000 |
Rear axle | 10000/10000 |
Traction system | 6*4 |
Operation control system | Power steering |
Braking system | Full air |
Electric system | 24V |
Transmission | 8JS85E 8speed |
Spring plate | 8/13 |
Tire specification | 10.00-20 |
Tire quantity | 10+1 |
Engine Description |
Engine manufacture | DONGFENG CUMMINS ENGINE CO., LTD |
Engine model | B210 33 |
Emission standard | Euro 3 |
Exhaust/output | 5900/155 |
Horse power | 210 |
Up-parts Description |
Tank Dimension ( mm ) | 6800xΦ1950 |
Standard Equipment | Equipped with high-power vacuum suction sewage pump. Equipped with lifting function, and double hydraulic cylinder, rear
cover can hydraulic opening with self-flowing valve. Equipped with power take off, transmission shaft, pipe network,
sewage pipe for observing and cleanout equipment. |
Working Condition: | 1,Altitude: 0-4500 m 2,Temperature: -350 C~+450 C 3,Relative humidity: 80% 4,Wind force: ≤8 degree |
