12 m Length Semi Side Dump Trailer Heavy Duty 3 Aaxle 60 Ton
Semi trailer is our company's main product . We configure Grid type
semi trailer , low bed semi trailer , container semi trailer , flat
bed semi trailer, LPG tank semi trailer, fuel tank semi trailer ,
water tanker semi trailer , fecal suction semi trailer , sewage
suction semi trailer, compactor garbage semi trailer , van semi
trailer , box semi trailer , water tank semi trailer , bitumen semi
trailer , bulk cement semi trailer , dump semi trailer , chemical
tank semi trailer and etc. We produce tank semi trailer with
plastic lining , aluminum tank , aluminum alloy tank , rotational
molding , carbon steel , stainless steel , production according to
the customer's requirement .
Products Technical Specification |
Type | 3 axles side dump trailer |
Vehicle Description |
Overall dimensions (mm) | 13000 * 2500 * 2840 |
G.V.W (kg) | 40000 |
Curb weight(vehicle) (kg) | 8000 |
Loading capacity (kg) | 60000 |
Dumper Body Description |
Dump body size | 12000 * 2450 * 1000 mm |
Material and door | Steel Sheet ,10 side door , located in the right and left side , a
back door , |
Volume | 25-30 m3 |
Running Gear |
Main Frame | Heavy duty and extra durability designed ; Opting for high tensile
steel Q345B , welded by automatic Submerged-Arc processes 480mm Height ,
Top Flange 14 mm ,width 140 mm ; Middle Flange 8 mm ; Bottom Flange 16 mm , width 140 mm |
Floor | Steel Sheet 3 mm thickness |
Axle | 3 axles |
FUWA axle with 13 Ton |
Suspension | FUWA suspension |
Leaf Spring | 13 * 90 – 10 - piece leaf spring. |
King Pin | CHINA brand 90 MM Bolt-in King Pin |
Landing Gear | CHINA brand Two-speed , manual operating , 28 T heavy duty landing gear |
Wheel Rim | 8.0 * 2.0 wheel rim , 12 pieces |
Tyre | 11.00R20 Radial tire with one spare tire , 12 pieces |
Lift ystesm | Five 150 # cylinder,and bilateral turned |
Braking System | A system with emergency brake and parking brake ; One unit of WABCO RE 6 relay valve ; 2 units of T30 / 30 spring
brake chamber ; 2 unit of 40 L air tank .(each axle of front axle
has a single air chamber . Double air chamber is installed on the
rear axle , each has two. The total chamber quantity is 6 sets .) |
Electrical System | One unit of MX-024 seven-core socket , licence lamp and later fog
lamp ; two sets of former lamp , backup light , signal lamp ,
Sanlian taillights ,front reflector and after triangle reflector . |
Painting | Sand blasting before painting , one coats of primer, anti corrosion
, two coat of finish painting , Colour as customer’s option |
Accessories | One tool box , water tank |
Packing | Ro-ro , bulk carriers |
Optional Equipment | BPW axle , JOST Brand 90 mm , 50 mm King Pin , ABS ,etc According to the special requirements of customers' products, design customized equipment. |

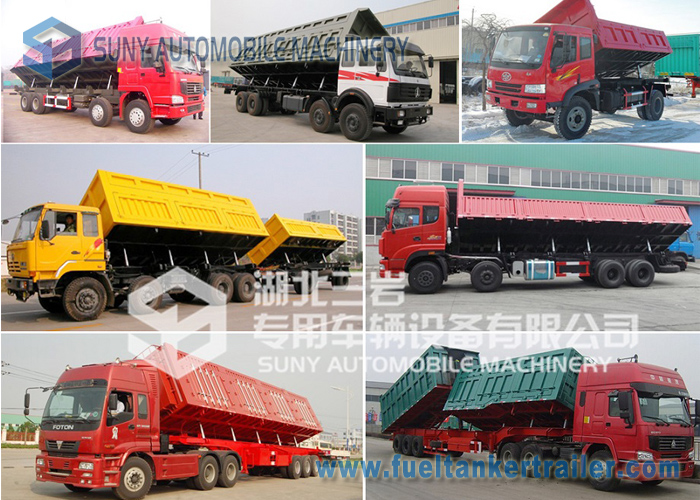

Many Types of Side Dump Truck (Side Tipper Truck)
Side tipper trailer / Side dump trailer
